- Channels for 3/8" or 1/2" (10 or 12 mm) and 5/8" or 3/4" (16 and 19 mm) Glass
- Use Monolithic Tempered Glass
- Matches the Width of Door and Sidelite Rails
- Accepts Roll-In Glazing Gasket, Top Pivot Block, and Snap-In Filler Strip
- Ready-to-Ship Models From CRL Inventory
- Available in Stock Lengths, Fabricated Headers, or Header with Side Pockets for 'Lift and Drop' Panel Installation

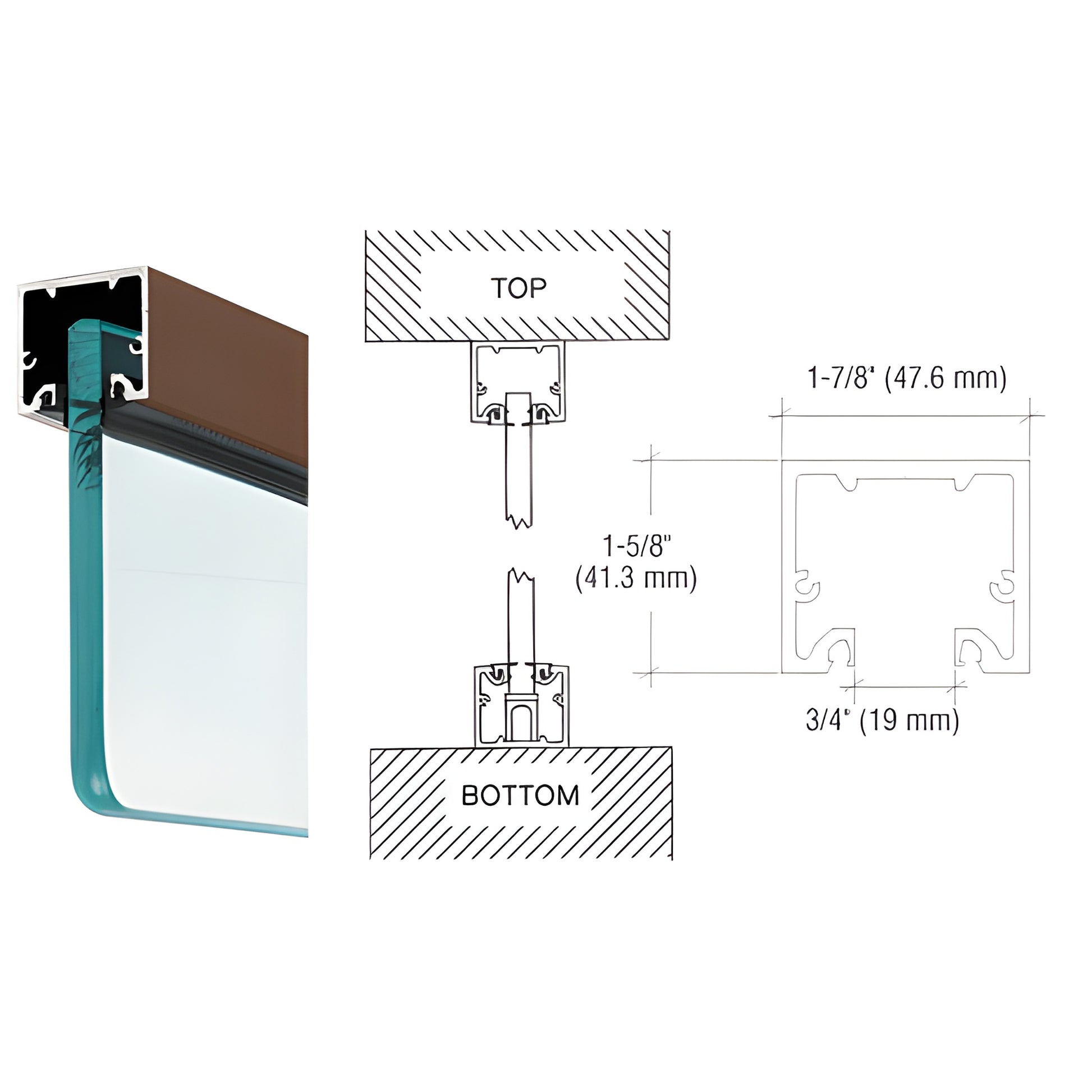

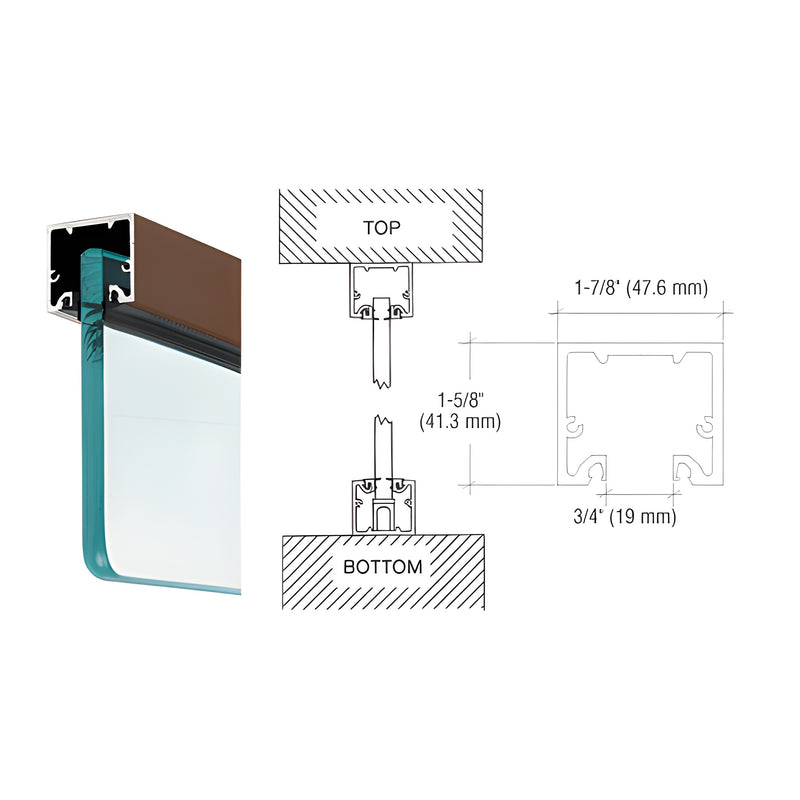

This Aluminum Extrusion was developed with three uses in mind:
(1) As a U-Channel that would be the same width as our Sidelite Rails and Door Rails;
(2) As a Narrow Header that is the same width as our Sidelite Rails and Door Rails, and will accept a Top Free-Swinging Pivot to secure the top of the doors;
(3) As an Even Sight Line System, accomplished by first securing the fabricated Narrow Header to the top of the opening, then securing the Sidelite Rail to the Narrow Header with the 1/4" (6 mm) Header Saddle. All drilling, tapping, and fabrication can be done at your request during manufacturing to save time while installing.
