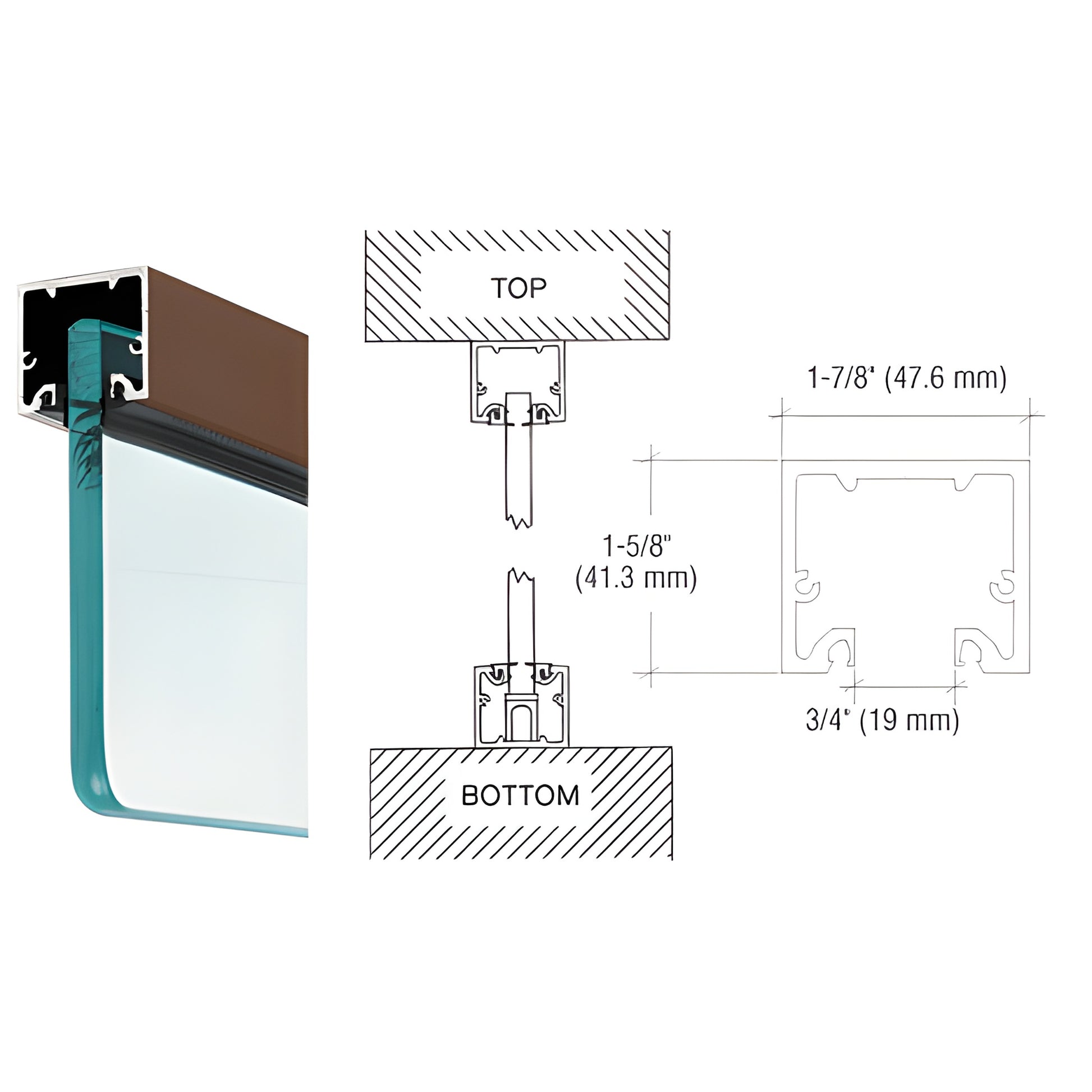

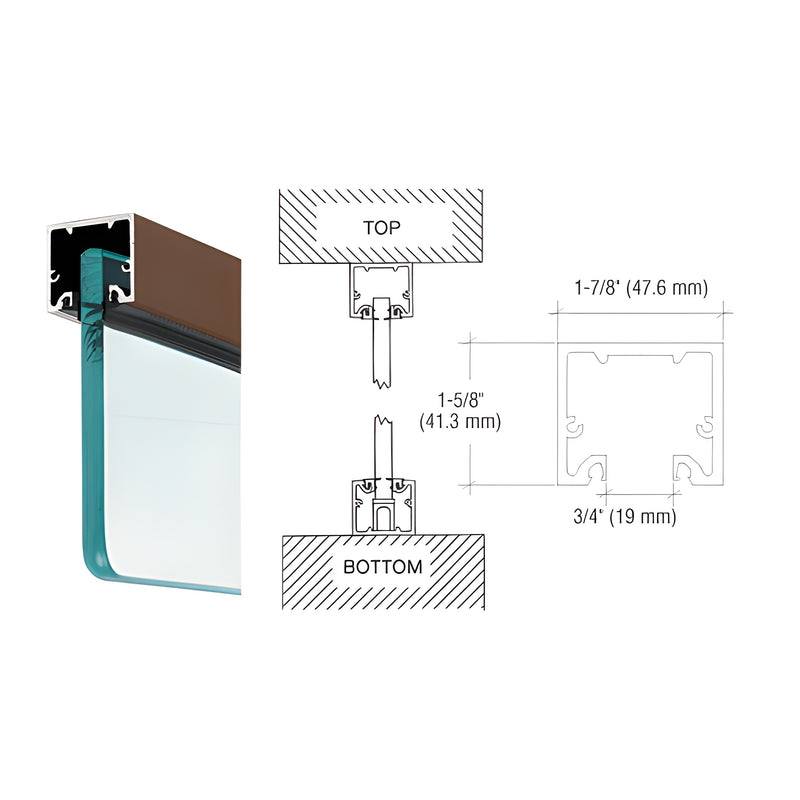

CRL Black-Bronze Anodized U-Channel Top-Load Gasket 3/8-1/2 in Glass
CRL Black-Bronze Anodized U-Channel Top-Load Gasket 3/8-1/2 in Glass
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# NH2DUCL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized
Glazing Thickness
3/8 in. (10 mm)
Height
1-5/8 in. (41 mm)
Length
Specify
Width
1-7/8 in. (48 mm)
Overview
- Matches width of door and sidelite rails; accepts roll-in gasket, top pivot block and flush snap-in insert for secure glazing
- Available in stock lengths, fabricated headers, or headers with side pockets for "lift and drop" panel glazing
- Special sidelite rail adapter enables a continuous sight line when used with the narrow header
This CRL Wide U-Channel and Narrow Header (SKU: NH2DUCL) is engineered for storefront and interior glass door systems where matching sight lines and reliable top pivot mounting are required. Use as a wide U-channel aligned with our Sidelite and Door Rails, as a narrow header that accepts a top free-swinging pivot to secure door tops, or as part of an Even Sight Line System—secure the fabricated narrow header to the opening, then attach the sidelite rail to the header with the 1/4" (6.4 mm) header saddle. All drilling, tapping and fabrication are completed at the factory to save time and eliminate field fabrication. For technical assistance, contact CRL Technical Sales Department.
Specifications
CAD Drawings - dwg
