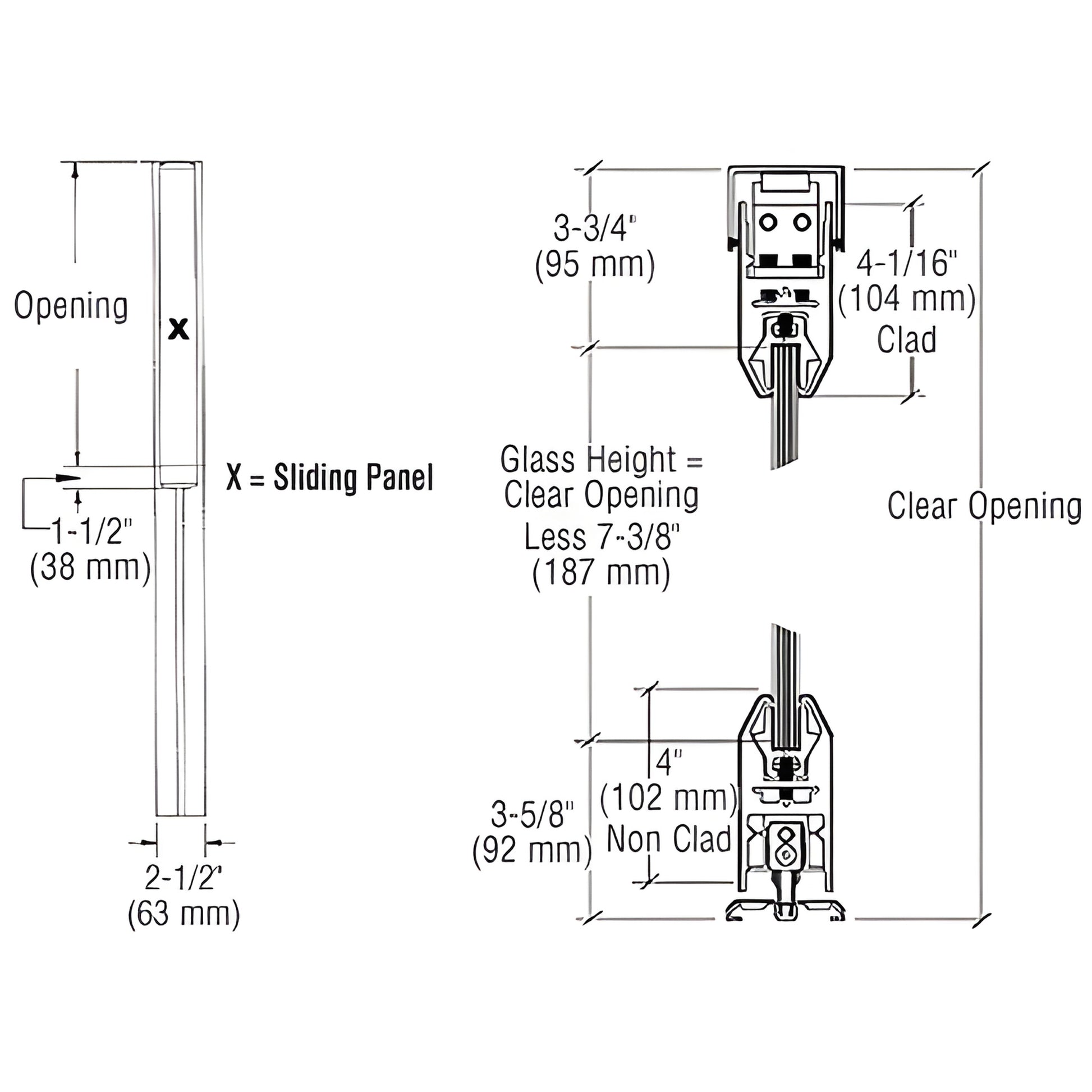

• CRL SDR1ADU bottom-rolling sliding door drawing - 4 DR4T tapered rails, black bronze, max 48 108 , 234 lb.
1 1

CRL

CRL Black Bronze Anodized Sliding Door System - 4" Dual Tapered Rail

CRL Black Bronze Anodized Sliding Door System - 4" Dual Tapered Rail

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SDR1ADU
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
X-/-X
Finish/Color
Black Bronze Anodized
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)

Overview

  • With 4" Tapered DR4T Series Door Rails
  • Available in Seven Architectural Finishes

The CRL SDR Bottom Rolling Sliding Door System features 4" (102 mm) tapered DR4T rails top and bottom and the proven Wedge-Lock® Glass Securing System for secure, low-profile glass mounting. DR4T Series rails are used for all door and fixed panels and are custom fabricated to your specifications. Suitable for interior and exterior applications requiring a heavy-duty bottom rolling sliding door system with tapered 4-inch rails and architectural finishes.
Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum door weight: 234 lbs. (106 kg). Doors may be ordered with or without locks integrated into the bottom rail. Available in seven architectural finishes to match commercial and residential design palettes.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors can vary depending on your monitor and settings.


SKU: SDR1ADU

Order the CRL SDR Bottom Rolling Sliding Door System with 4" tapered DR4T rails for durable, custom-fabricated sliding doors—contact CRL Customer Service to get started.
