CRL Black-Bronze Anodized XO/OX Sliding Door 4in Top/6in Bottom Rail
CRL Black-Bronze Anodized XO/OX Sliding Door 4in Top/6in Bottom Rail
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 6SDR2CDU
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
XO or OX
Finish/Color
Dark Bronze Anodized
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
2
Overview
- With 4" Square DR4S Series Door Rails and 6" Square DR6S Series Bottom Rails
- Available in Seven Architectural Finishes
The CRL SDR Bottom Rolling Sliding Door System (SKU: 6SDR2CDU) is a heavy-duty bottom rolling sliding door solution engineered for commercial and residential applications. It features 4" (102 mm) square top rails (DR4S) and 6" (152 mm) square bottom rails (DR6S) and uses CRL’s patented Wedge-Lock® Glass Securing System for fast, secure glass retention. Order custom-fabricated doors with or without integrated locks in the bottom rail. Designed for door widths up to 48" (1.22 m), heights up to 108" (2.74 m), and a maximum door weight of 234 lb (106 kg). Ideal for projects requiring a durable bottom rolling sliding door system with architectural finishes and reliable glass retention.
Specifications

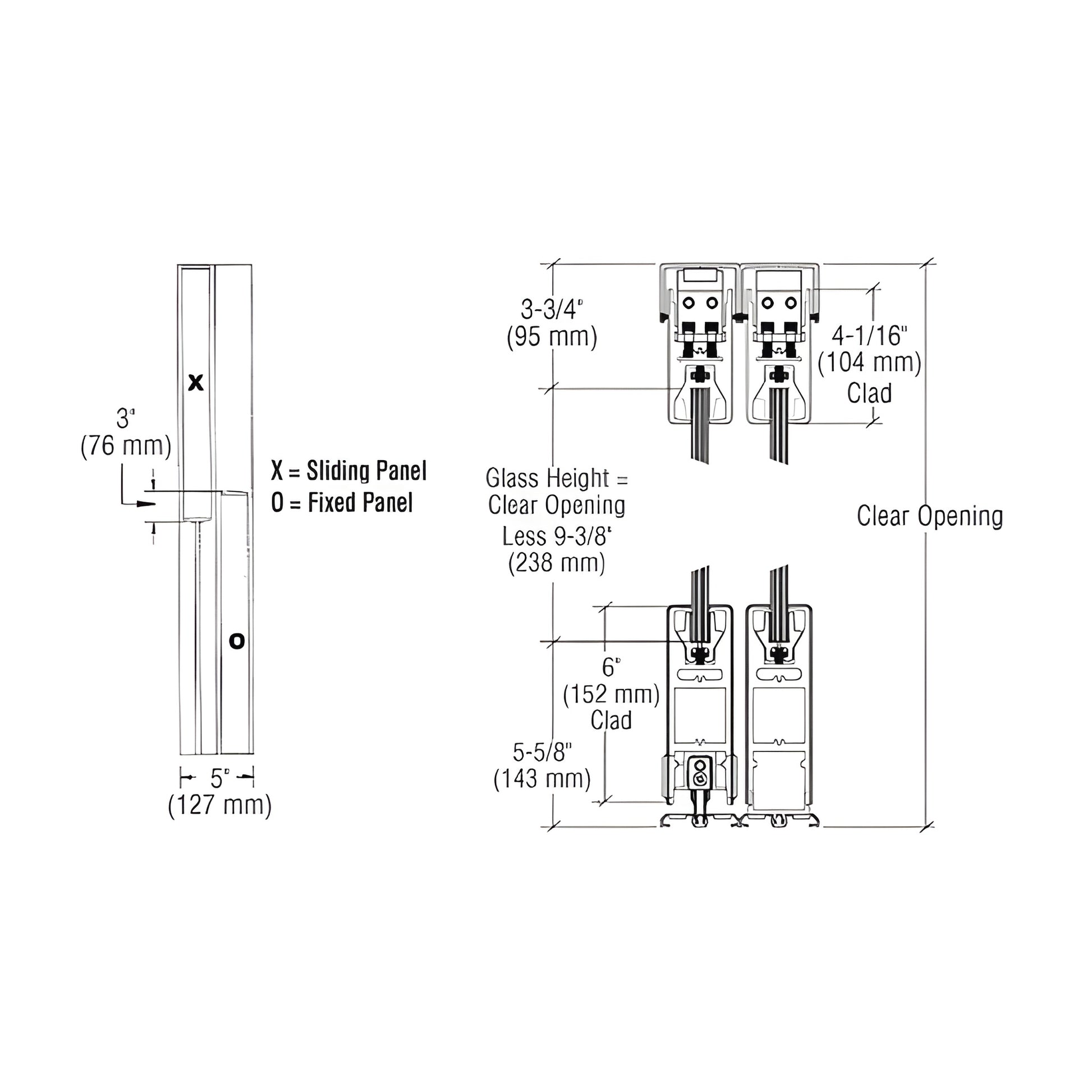

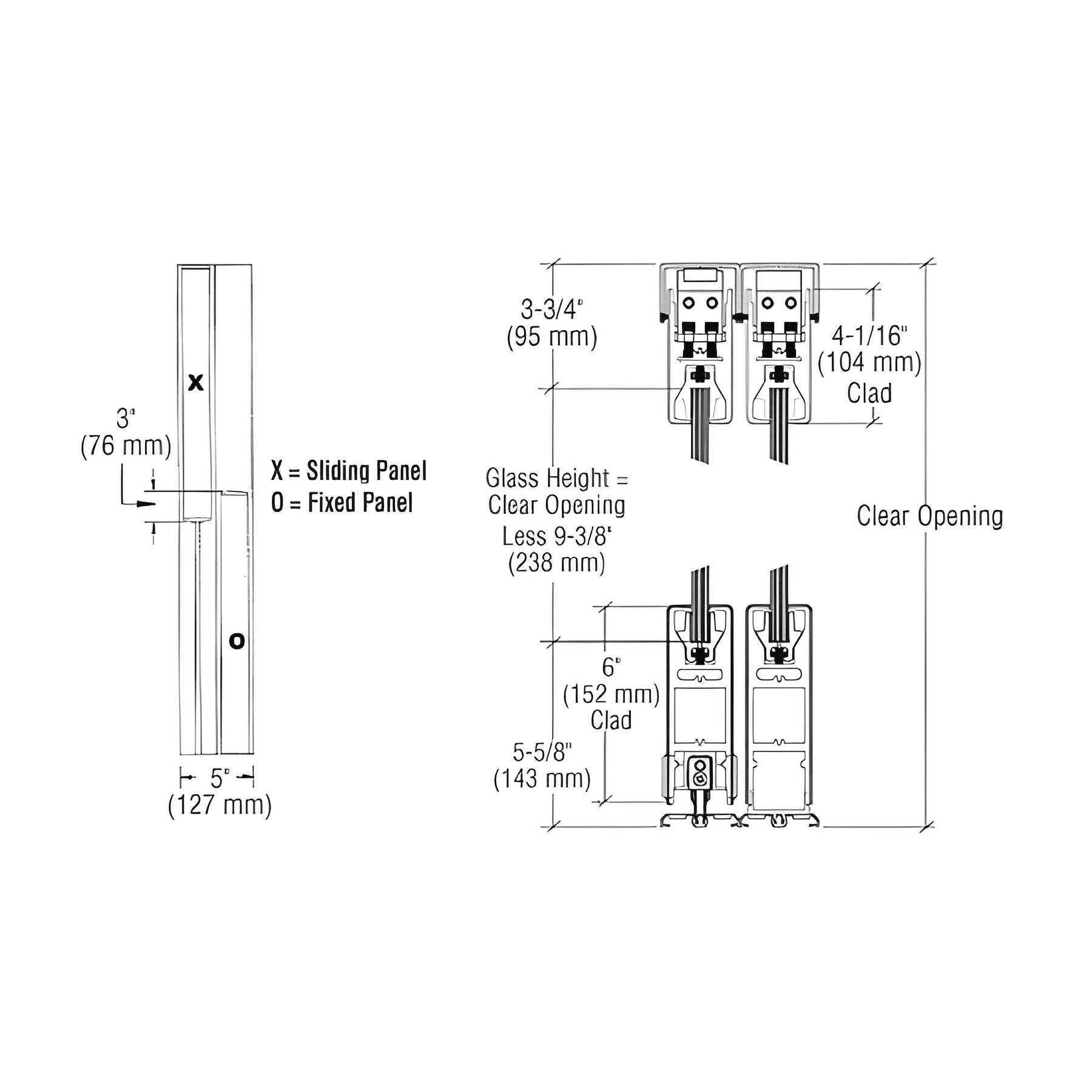

CAD Drawings - pdf
