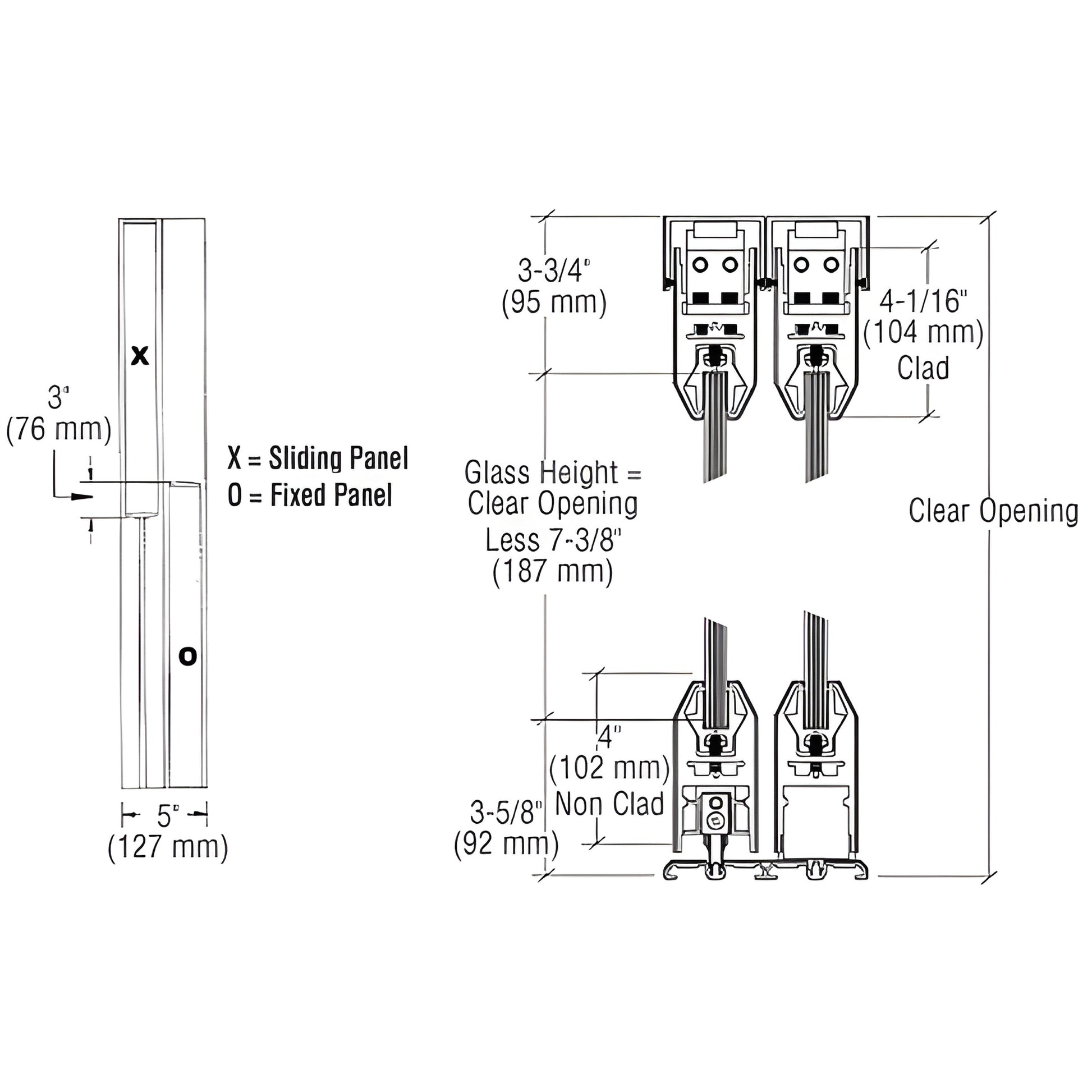

• Technical drawing of CRL SDR2CDU bottom-rolling sliding door system, cross-sections and dimensions.
1 1

CRL

CRL Black Bronze Anodized XO/OX Sliding Door System 4 in Tapered Rail

CRL Black Bronze Anodized XO/OX Sliding Door System 4 in Tapered Rail

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SDR2CDU
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
XO/OX
Door Type
Sliding
Finish/Color
Black Bronze Anodized
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)

Overview

  • With 4" Tapered DR4T Series Door Rails
  • Available in Seven Architectural Finishes

The CRL SDR Bottom Rolling Sliding Door System features 4" (102 mm) tapered DR4T rails top and bottom and uses the proven Wedge-Lock® Glass Securing System for secure, reliable bottom rolling operation. DR4T Series door and fixed-panel rails are custom fabricated to your specifications and can include optional bottom-rail locks. Designed for commercial and residential applications, this bottom rolling sliding door system supports a maximum door width of 48" (1.22 m), maximum height of 108" (2.74 m), and a maximum door weight of 234 lb (106 kg). SKU: SDR2CDU

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


Choose from seven architectural finishes and order custom-fabricated rails for a tailored bottom rolling sliding door solution. Contact CRL for quotes and lead times.
