CRL Black Bronze Anodized Square Sliding Glass Door System 6"/4"

• With 4" Square DR4S Series Door Top Rails, 6" Square DR6S Series Door Bottom Rails, and 6" Square SR6S Series Sidelite Bottom Rails
• Available in Seven Architectural Finishes

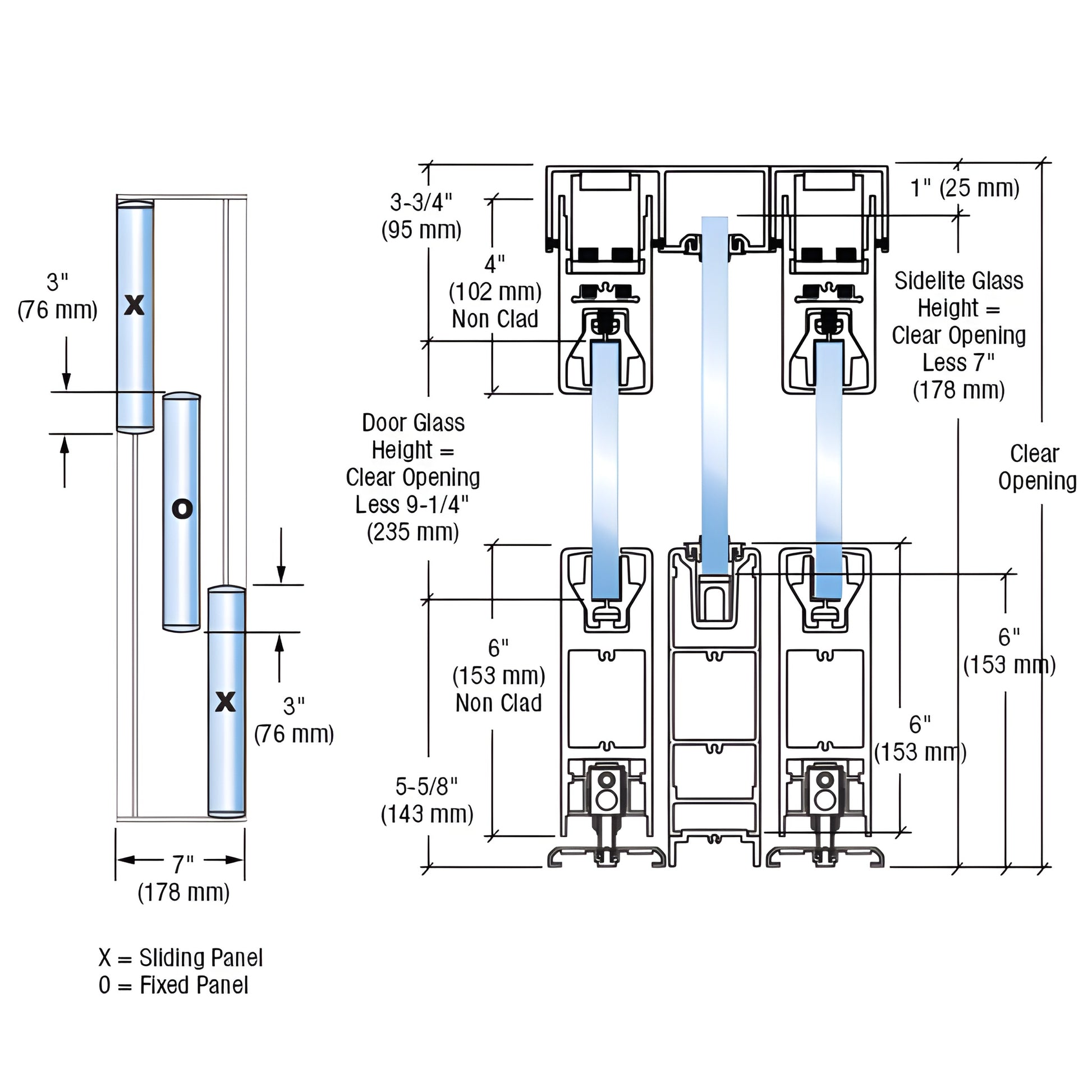

The CRL SSR Bottom Rolling Sliding Door System (SKU: 6SSR3DDU) is a bottom-rolling sliding door designed for commercial and residential glass installations. It features 4" (102 mm) square door top rails and 6" (152 mm) square door bottom rails and uses CRL's patented Wedge-Lock® Glass Securing System—also used in the DR4S and DR6S Series—for secure, vibration-resistant glazing. Bottom rails can be ordered with or without integrated locks.

Fixed sidelites use SR6S Series sidelite rails with roll-in vinyl at the bottom and an integrated glazing channel with roll-in vinyl in the top track for smooth operation and weather resistance. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum panel weight: 234 lb (106 kg). All panels are custom fabricated to your specifications for accurate fit and performance.

Key differentiators: Wedge-Lock® Glass Securing System for durable glazing, customizable bottom-rolling configuration, seven architectural finishes for design flexibility. Order the CRL SSR Bottom Rolling Sliding Door System (SKU: 6SSR3DDU) to get custom-fabricated, heavy-duty sliding glass panels—contact CRL to start your order.
