CRL XX-Format Black-Bronze Anodized Sliding Door 4" Tapered Rail
CRL XX-Format Black-Bronze Anodized Sliding Door 4" Tapered Rail
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SDR2BDU
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
X X
Door Type
Sliding
Finish/Color
Black Bronze Anodized
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Overview
- With 4" Tapered DR4T Series door rails for smooth bottom rolling operation
- Available in seven architectural finishes for commercial and residential applications

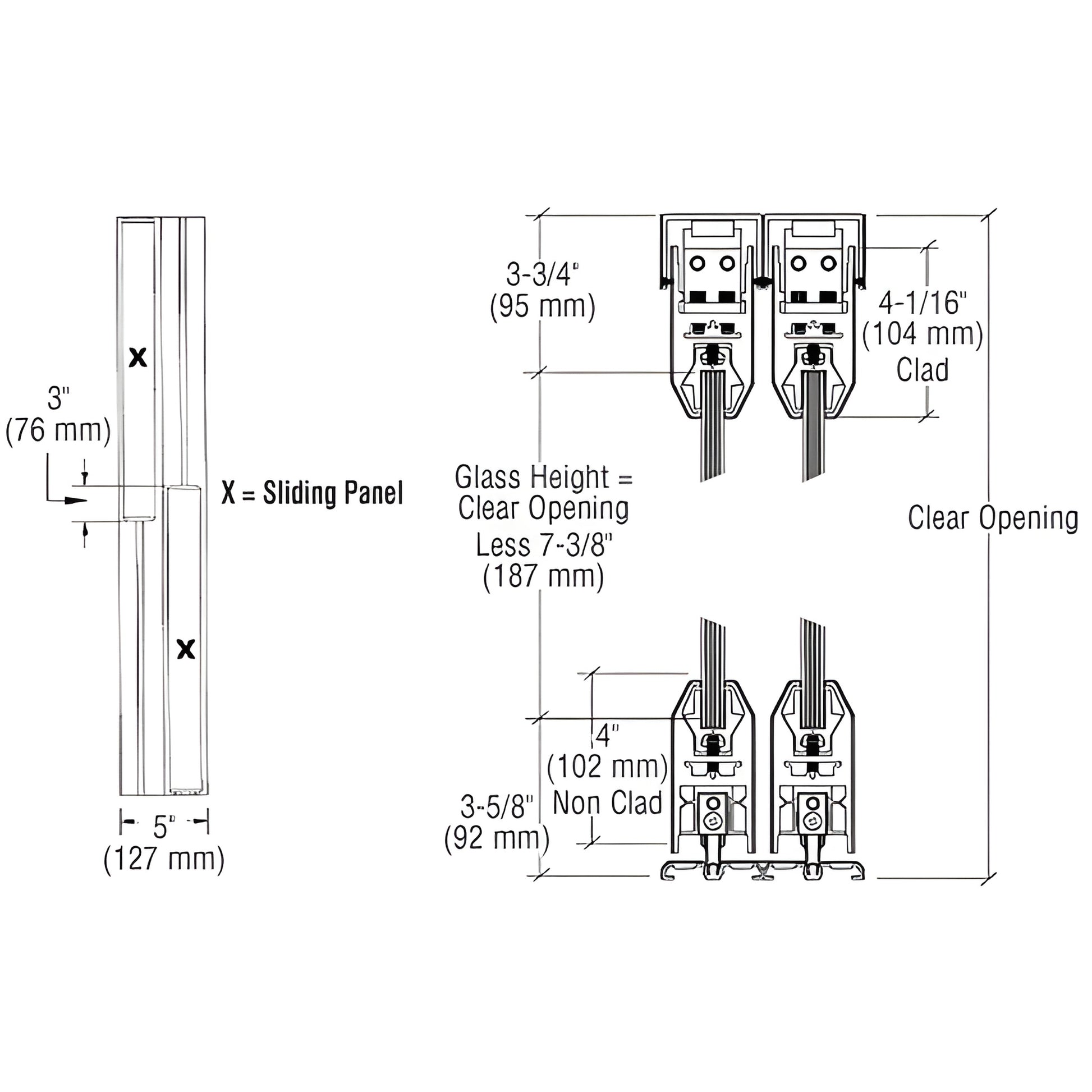

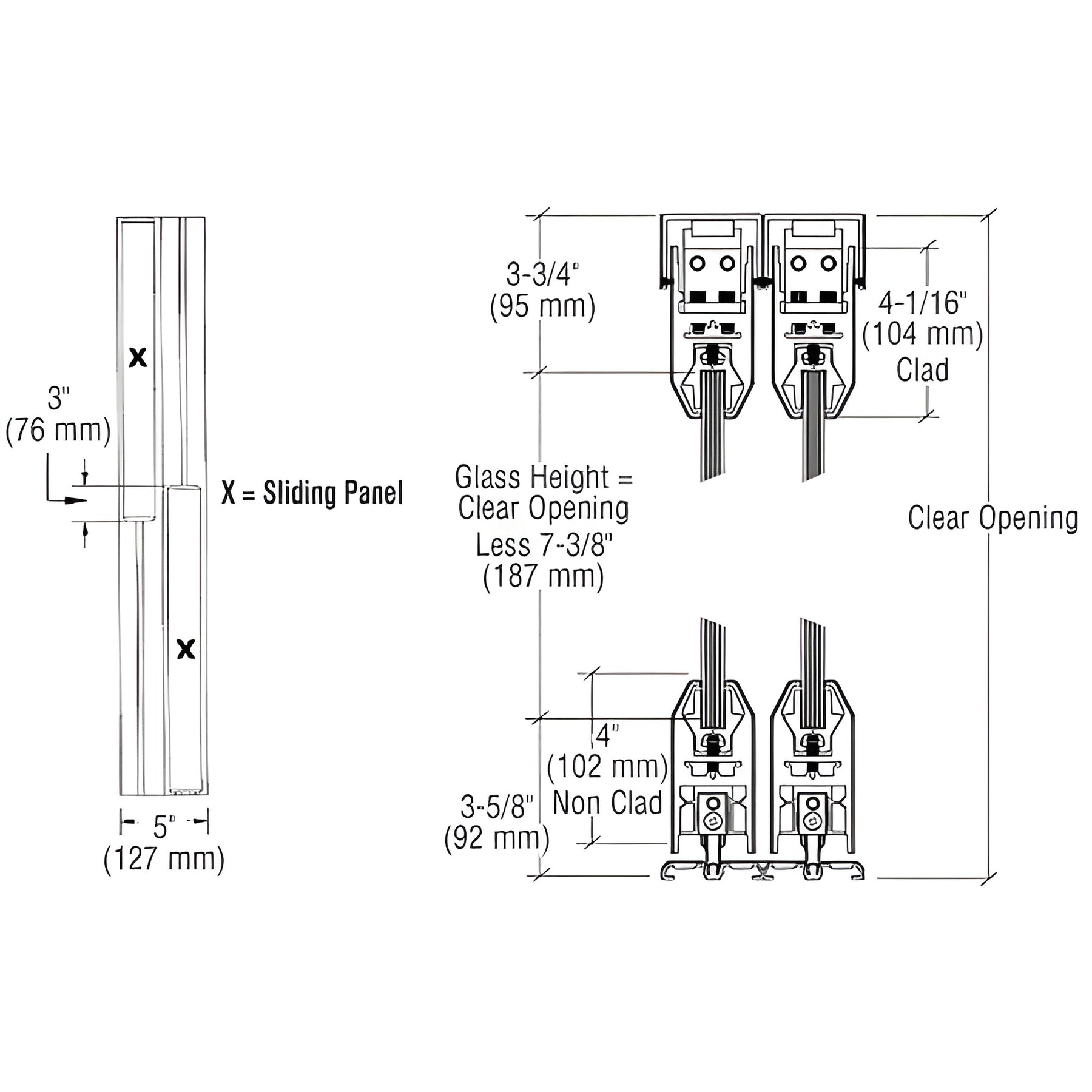

The CRL SDR Bottom Rolling Sliding Door System (SKU: SDR2BDU) features 4" (102 mm) tapered rails top and bottom and utilizes the Wedge-Lock® Glass Securing System for reliable glass retention. DR4T Series door rails are used on all door and fixed panels and are custom fabricated to your project specifications. Doors are available with or without locks in the bottom rail. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum weight: 234 lbs. (106 kg). Ideal for bottom rolling sliding glass door installations where smooth operation, durability, and a refined architectural finish are required.
Specifications
CAD Drawings - pdf
