CRL Black Bronze Anodized Sliding Door Entrance - 4" Tapered Rail
CRL Black Bronze Anodized Sliding Door Entrance - 4" Tapered Rail
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SDR42FDU
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
XXXX
Door Type
Sliding
Finish/Color
Black Bronze Anodized
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Overview
- With 4" Tapered DR4T Series Door Rails
- Available in Seven Architectural Finishes

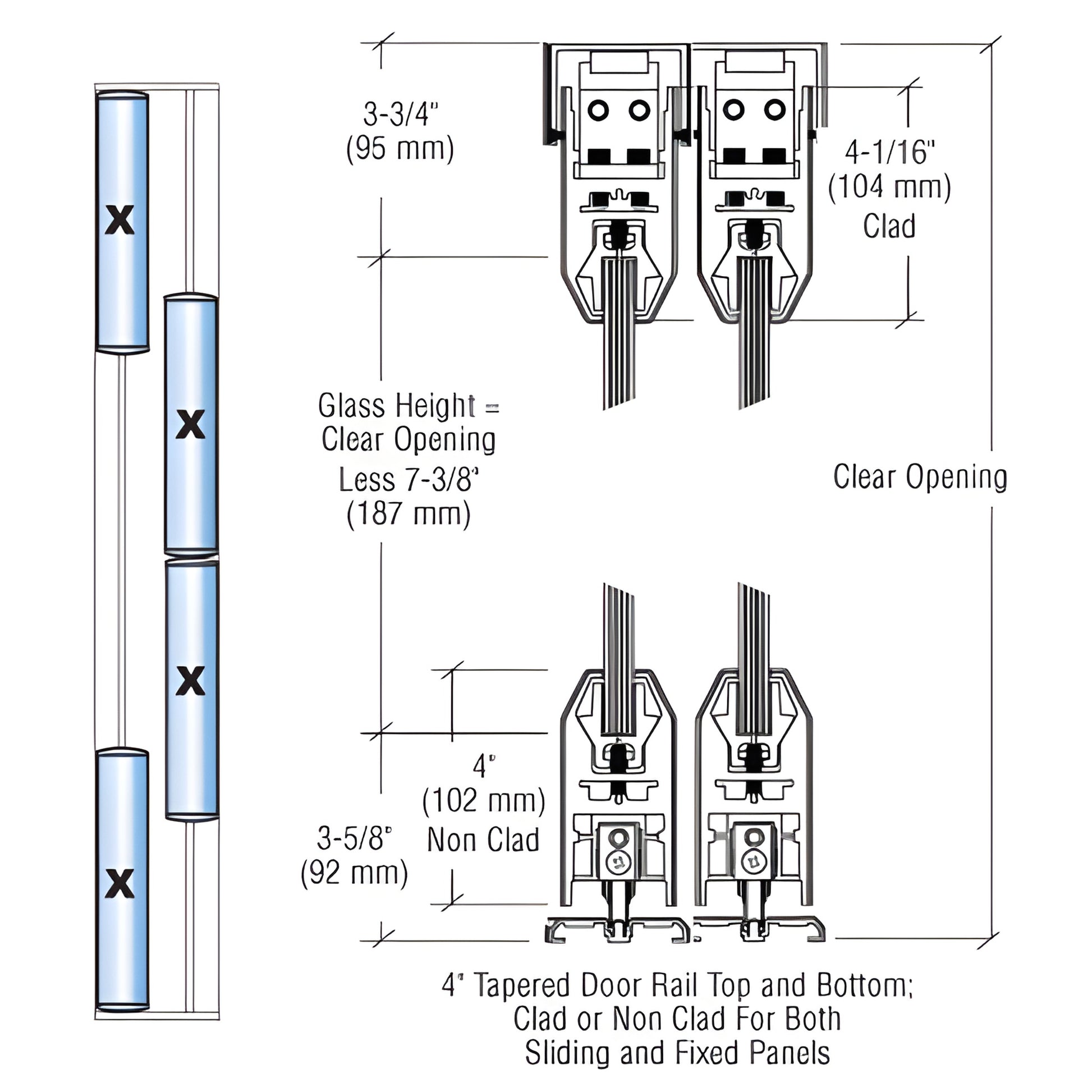

The CRL SDR Bottom Rolling Sliding Door System (SKU: SDR42FDU) features 4" (102 mm) tapered DR4T rails top and bottom and uses the proven Wedge-Lock® Glass Securing System for reliable glass retention. DR4T Series door rails are custom fabricated to your specifications for both door and fixed panels and can include an optional bottom-rail lock. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum weight: 234 lb (106 kg). Ideal for commercial and residential applications requiring a durable bottom-rolling sliding door with architectural finishes and heavy-duty glass support.
Specifications
CAD Drawings - pdf
