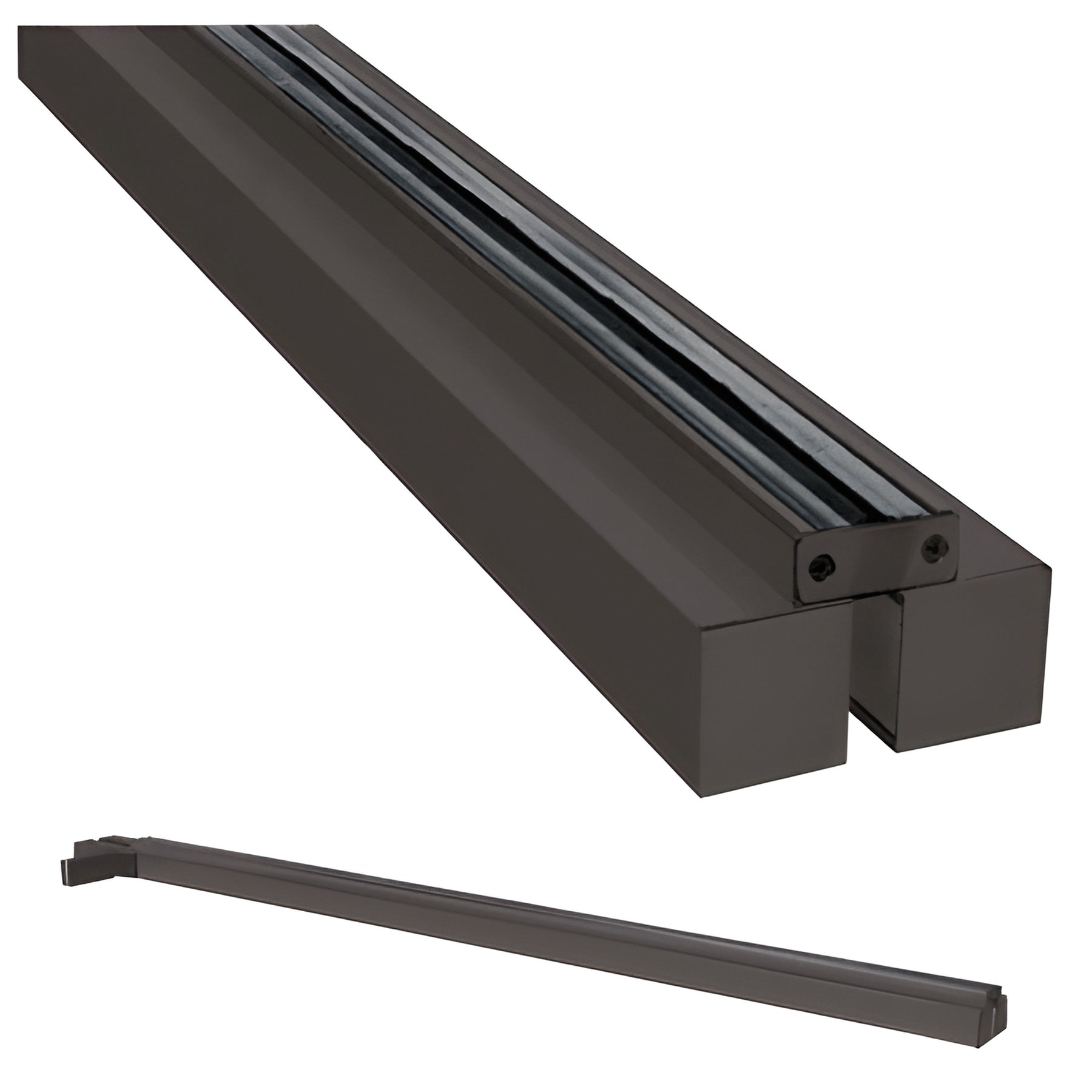

CRL Black Bronze Custom Glass-to-Wall Header w/ Fin Brackets 1-Door

• Adds rigidity and helps stabilize all‑glass openings
• Only available on special order (SKU: FH4FGWDUCS)
• For glass-to-glass or glass-to-wall installations — compatible with or without overhead concealed door closers
• Several stock architectural finishes available; custom finishes available
• Each floating header is customized to your project requirements

CRL Floating Headers With Fin Brackets were developed to add rigidity and reduce deflection in all‑glass entrances caused by wind, stack load pressure, or impacts. These floating headers for glass doors are available for single- or double-door systems and can be customized for many configurations, including glass-to-wall installations, custom lengths, and headers prepped for surface-mounted magnetic locks, magnetic shear locks, a surface-mounted top pivot, a walking beam pivot, or an overhead concealed door closer. Header dimensions: 4" x 1-3/4" (102 x 44.5 mm). For assistance with specifying a floating header for glass doors, contact CRL Technical Sales Department.

Product Warning:

STRUCTURAL DISCLAIMER - Customers must consult a structural engineer to confirm suitability for intended use and site conditions. Installers must be qualified and ensure compliance with local, state, and federal regulations, safety factors, and appropriate fastening materials and procedures.

If the transom weight above the header exceeds 100 pounds (45.4 kg), the transom must be supported from the ceiling to prevent bowing. Use Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings as appropriate. Contact our Technical Sales Department for assistance.

Need a custom floating header for a glass door project? Contact CRL Technical Sales to get a quote and specification assistance.
