CRL Black Outside Pull with Multiple Screw Hole Patterns

Overview

SKU	C1096
Sold as	1 Pack
Body Length	7-1/4
Body Width	1
Finish/Color:	Black
Handing	Non Handed
Keyed	No
Material	Aluminum
Mortise Mounted	No

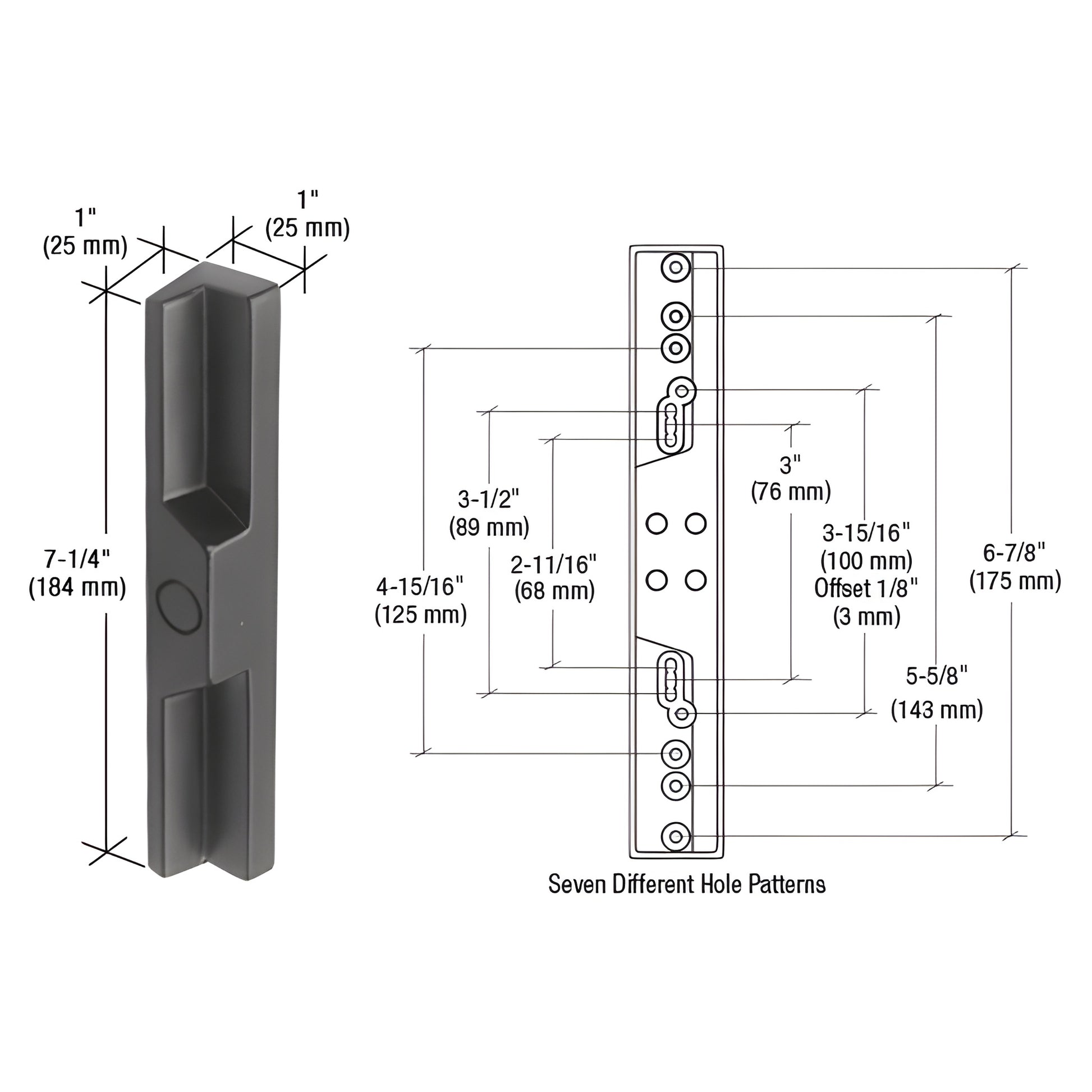

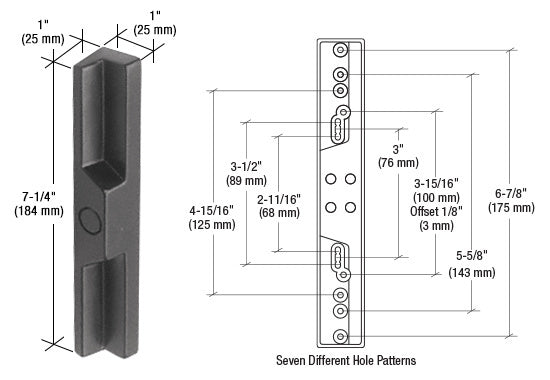

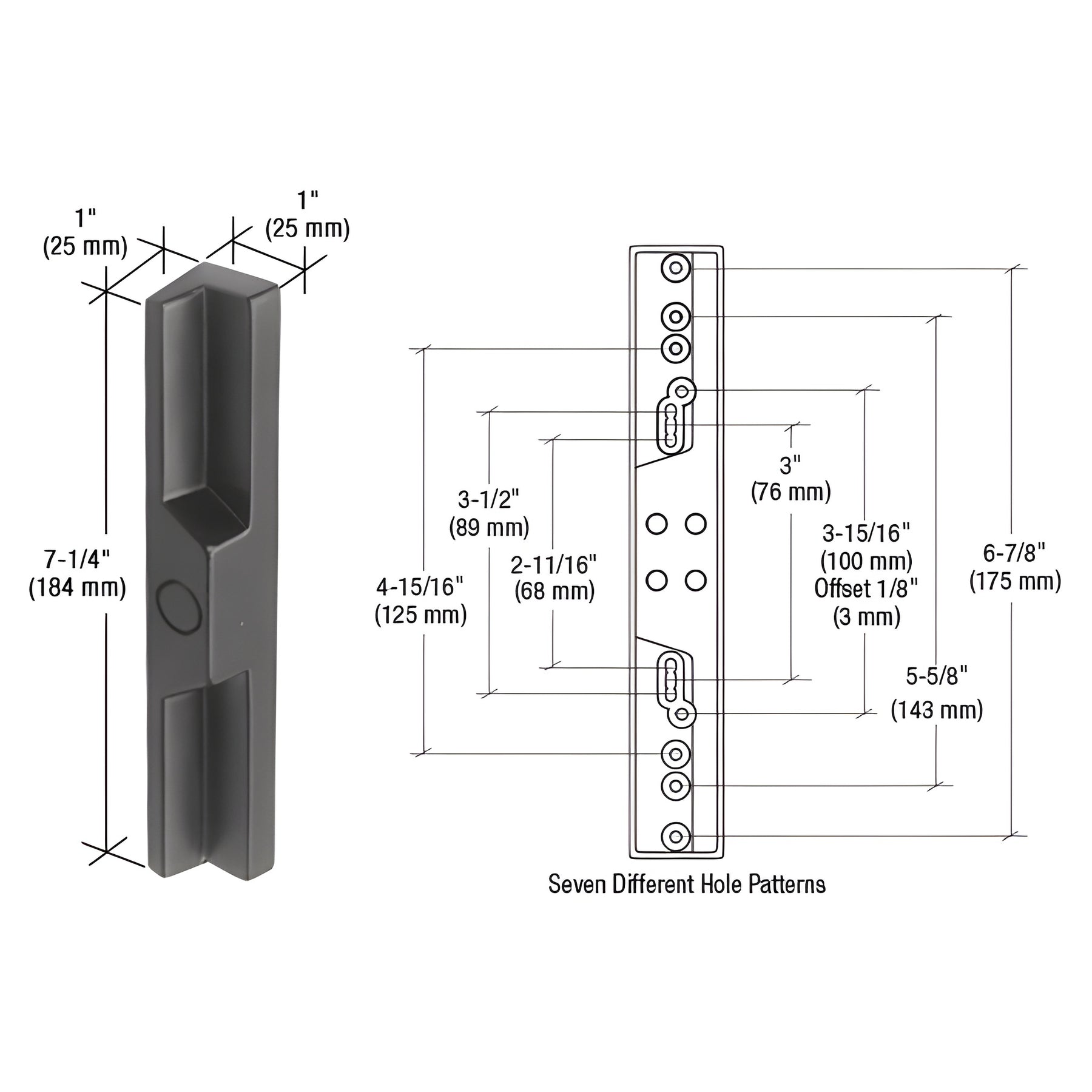

Mounting Holes	4-15/16 Inches, 3-1/2 Inches, 2-11/16 Inches,3 Inches, 3-15/16 Inches, 5-5/8 Inches, 6-7/8 Inches
Mounting Type	Surface
Protrudes	1
Pull Only	No
Weight Capacity	Not Rated

Description

Product Details

Allows Application to a Variety of Handle Sets

This unique product is the most versatile CRL Outside Pull available. It will accommodate seven different hole spacing patterns. Made from zinc diecast. One pull with installation screws per package.

NOTE: For units with Cat. No. E2000 Key Cylinder, center plug has been bored out.
