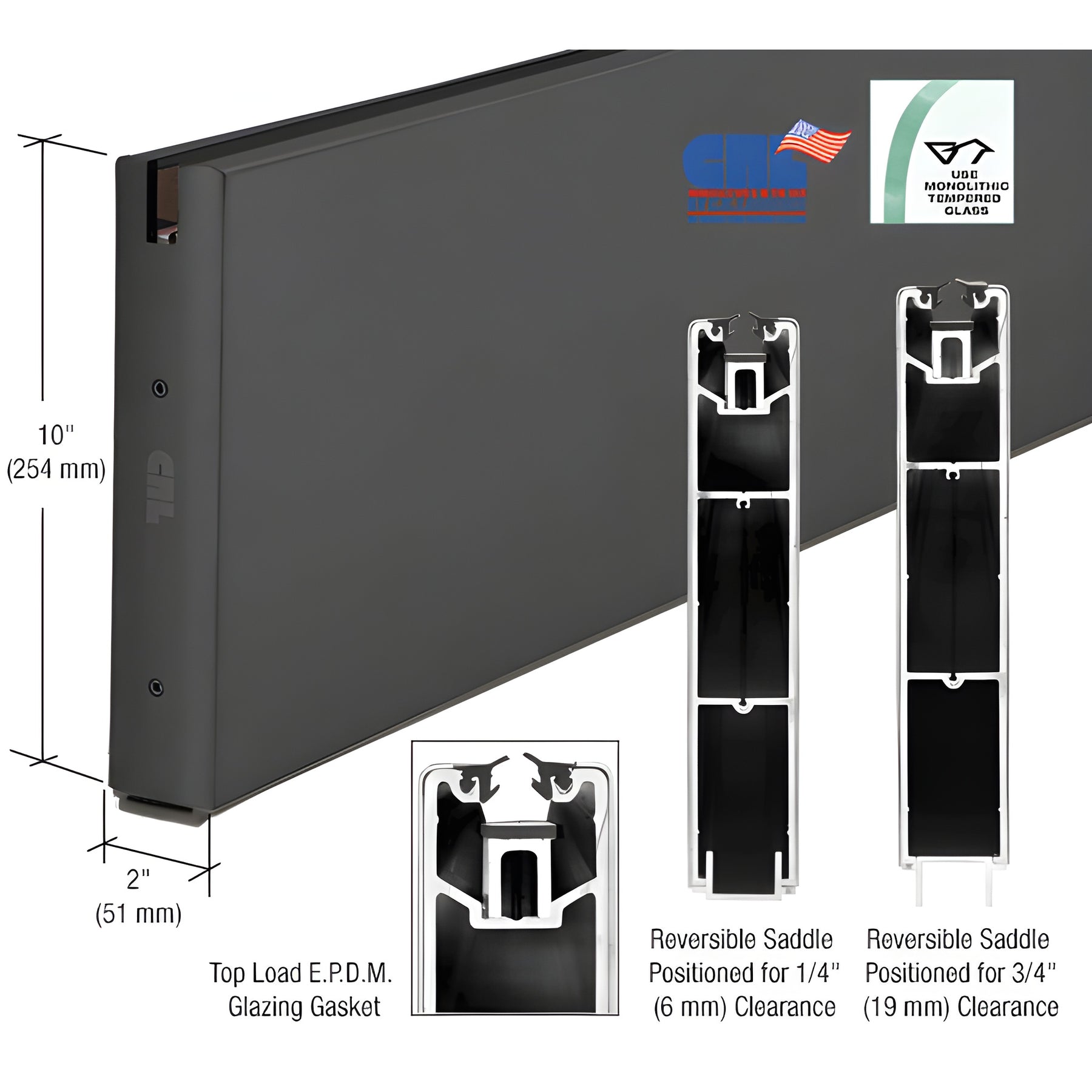

CRL Black Powder Coat 10" x 120" Length Square Sidelite Rail
CRL Black Powder Coat 10" x 120" Length Square Sidelite Rail
Regular price
$2,006.27 CAD
Regular price
Sale price
$2,006.27 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SR10SBL3812SL
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Gloss Black |
| Floor Mount Saddle Included FMS | 2BL |
| Glazing Thickness | 3/8 in. (10 mm) |
| Length 120 in. | (3048 mm) |
| Material | Aluminum |
| Nominal Height 10 in. | (254 mm) |
| Profile | Square |
| Width 2-1/4 in. | (57 mm) |
Overview
The CRL 10" (254 mm) Square Sidelite Rail is an ideal choice for office and storefront applications, providing a secure fit for fixed glass panels.
This versatile rail offers a reversible extruded saddle to match 1/4" or 3/4" door clearances, ensuring an even sightline with our matching door rails.
The easy 'lift and drop' installation method, using our 4" (102 mm) Aluminum and Neoprene Setting Blocks, and the Top Load EPDM Roll-in Glazing Gasket, eliminate the need for silicone sealant for a clean finish.
Available in various lengths and finishes, the CRL Sidelite Rail is designed for use with monolithic tempered glass and comes with vinyl for 1/2" glass, with options for 3/8" glass available separately.
For more information or to place an order, please contact CRL Customer Service.
This versatile rail offers a reversible extruded saddle to match 1/4" or 3/4" door clearances, ensuring an even sightline with our matching door rails.
The easy 'lift and drop' installation method, using our 4" (102 mm) Aluminum and Neoprene Setting Blocks, and the Top Load EPDM Roll-in Glazing Gasket, eliminate the need for silicone sealant for a clean finish.
Available in various lengths and finishes, the CRL Sidelite Rail is designed for use with monolithic tempered glass and comes with vinyl for 1/2" glass, with options for 3/8" glass available separately.
For more information or to place an order, please contact CRL Customer Service.
Specifications
CAD Drawings - pdf
Engineering & Test Reports
