CRL Black Powder Coat 10" x 240" Length Square Sidelite Rail
CRL Black Powder Coat 10" x 240" Length Square Sidelite Rail
Regular price
$3,457.73 CAD
Regular price
Sale price
$3,457.73 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SR10SBL3812240
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Gloss Black |
| Floor Mount Saddle Included FMS | 2BL |
| Glazing Thickness | 3/8 in. (10 mm) |
| Length 240 in. | (6096 mm) |
| Material | Aluminum |
| Nominal Height 4 in. | (102 mm) |
| Profile | Square |
| Width 2-1/4 in. | (57 mm) |
Overview

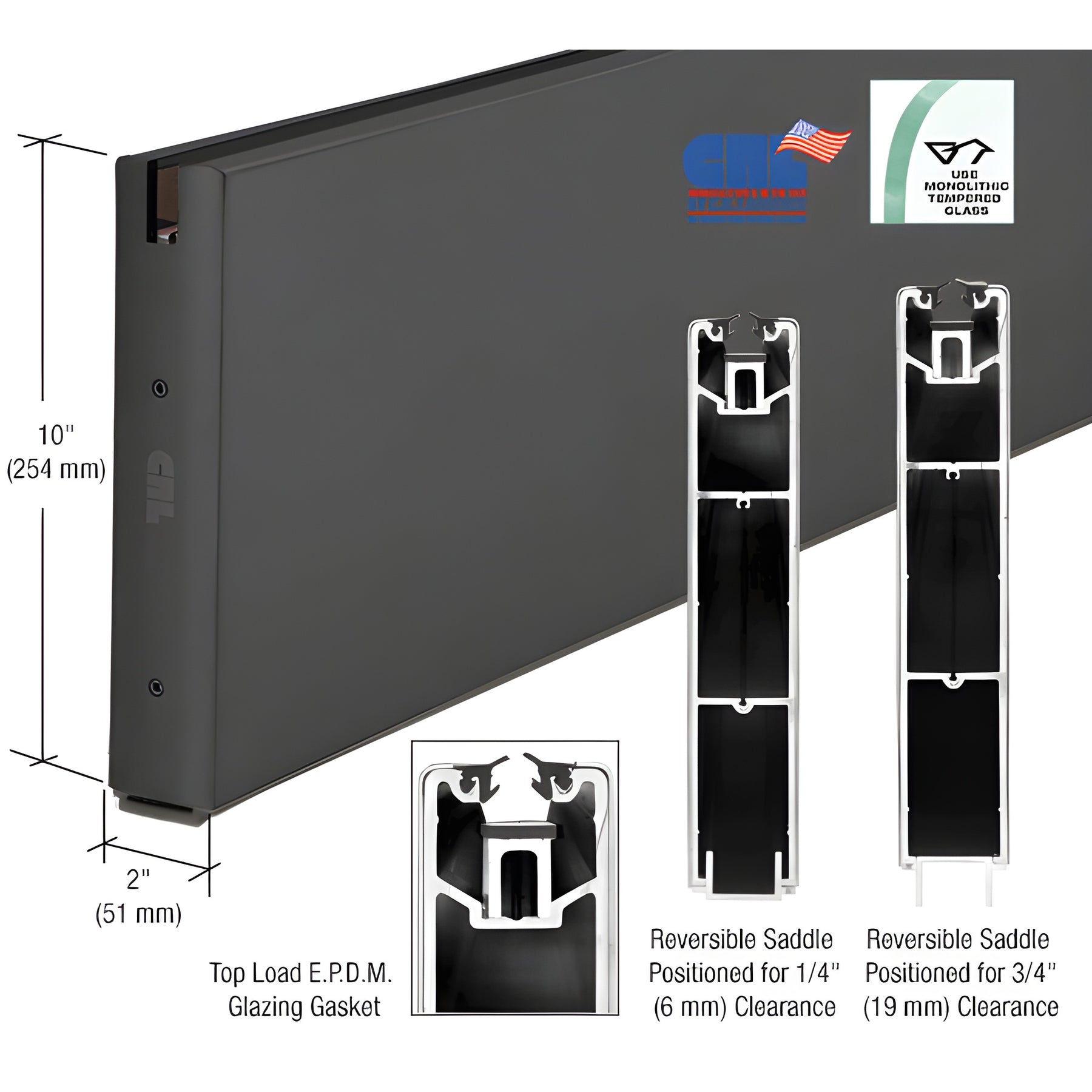

The CRL 10" (254 mm) Square Sidelite Rail is an ideal choice for office and storefront applications, offering a seamless match with our Door Rails for a cohesive look.
Designed for easy installation, these sidelite rails use the 'lift and drop' method with 4" (102 mm) aluminum and neoprene setting blocks, and secure glass with a top load EPDM roll-in glazing gasket, eliminating the need for silicone sealant.
Available in 120" (3.05 m) and select 240" (6.10 m) lengths, these rails come with vinyl to glaze 1/2" (12 mm) glass, and additional accessories like the GG38 Series Vinyl for 3/8" (10 mm) glass can be ordered separately.
Please note, the product height is 10” (254 mm), and for precise shipping weights or custom options, contact CRL Customer Service.
Designed for easy installation, these sidelite rails use the 'lift and drop' method with 4" (102 mm) aluminum and neoprene setting blocks, and secure glass with a top load EPDM roll-in glazing gasket, eliminating the need for silicone sealant.
Available in 120" (3.05 m) and select 240" (6.10 m) lengths, these rails come with vinyl to glaze 1/2" (12 mm) glass, and additional accessories like the GG38 Series Vinyl for 3/8" (10 mm) glass can be ordered separately.
Please note, the product height is 10” (254 mm), and for precise shipping weights or custom options, contact CRL Customer Service.
Specifications
Engineering & Test Reports
