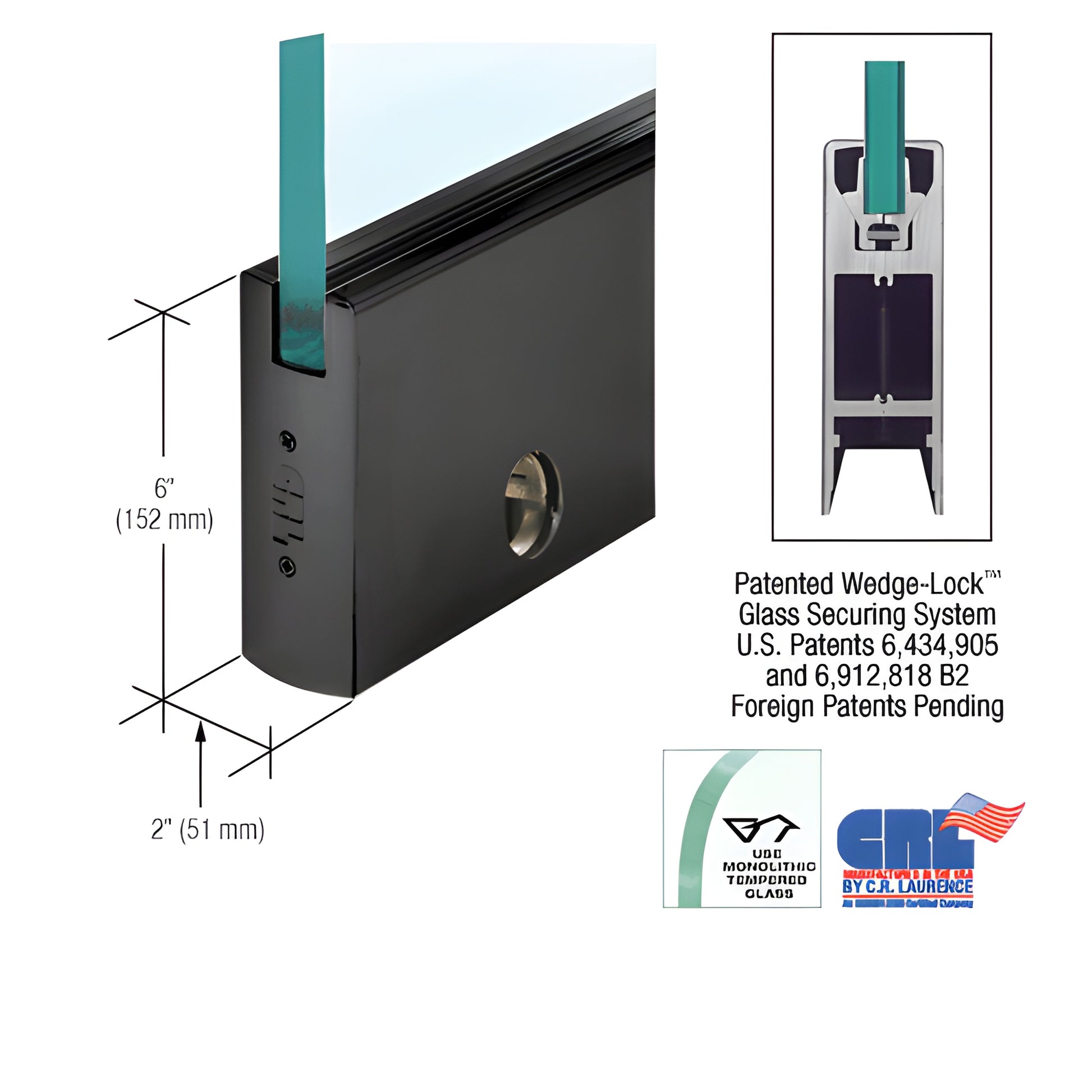

CRL 6" Sq Black Powder-Coat Door Rail w/ Lock for 3/8" Glass, Custom

• Custom Length for 3/8" (10 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

An innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System features the exclusive Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). The wedge-action design uses two glass-retaining aluminum extrusions and a stainless steel bar tightened with socket head cap bolts. As the bar is pulled down, angled extrusions wedge together in the rail groove to generate very high retaining force (more than 900 lbs. in the 9" corner rail), producing a secure, durable hold for monolithic tempered glass.

Key differentiators:

• Fast installation — experienced installers can prepare a door in under 10 minutes, reducing labor time on-site.
• Adjustable Door Alignment Slide — standard top and bottom; allows ±1/8" (3.2 mm) adjustment without removing the door for precise alignment in out-of-square openings.
• Rigid single-component housing — resists shifting or loss of adjustment over time (not two-piece construction).
• Internal components remain in place during installation — no disassembly required.
• Durable glass securing pads designed for longevity in extreme environments.

Rails ship fully fabricated and ready-to-install with End Caps installed. After mounting the rail, attach the door arm or pivot (not included) to the preassembled adjustable slide. To fine-tune alignment after installation, remove the End Cap to access three socket head cap bolts: center bolt secures the slide; outer bolts adjust the slide 1/8" in or out. The low-profile slide permits pivot placement other than the American Standard setback and enables fabrication for vertically out-of-square openings.

Models accept 3/8" or 1/2" (10 or 12 mm) glass. Available in several standard architectural finishes; custom finishes and widths quoted on request. Rail specifications, templates and hardware packages are available from CRL Technical Sales.

Ordering information:

• All door rails include the standard Kwik-
