CRL Black Powder Coat 4" x 120" Length Square Sidelite Rail
CRL Black Powder Coat 4" x 120" Length Square Sidelite Rail
Regular price
$781.36 CAD
Regular price
Sale price
$781.36 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SR4SBL3812SL
Shipping Weight: 24.7 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 24.7 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Gloss Black |
| Floor Mount Saddle Included FMS | 2BL |
| Glazing Thickness | 3/8 in.,1/2 in. (10 mm,12 mm) |
| Height 4 in. | (102 mm) |
| Length 120 in. | (3048 mm) |
| Width 2 in. | (50 mm) |
Overview

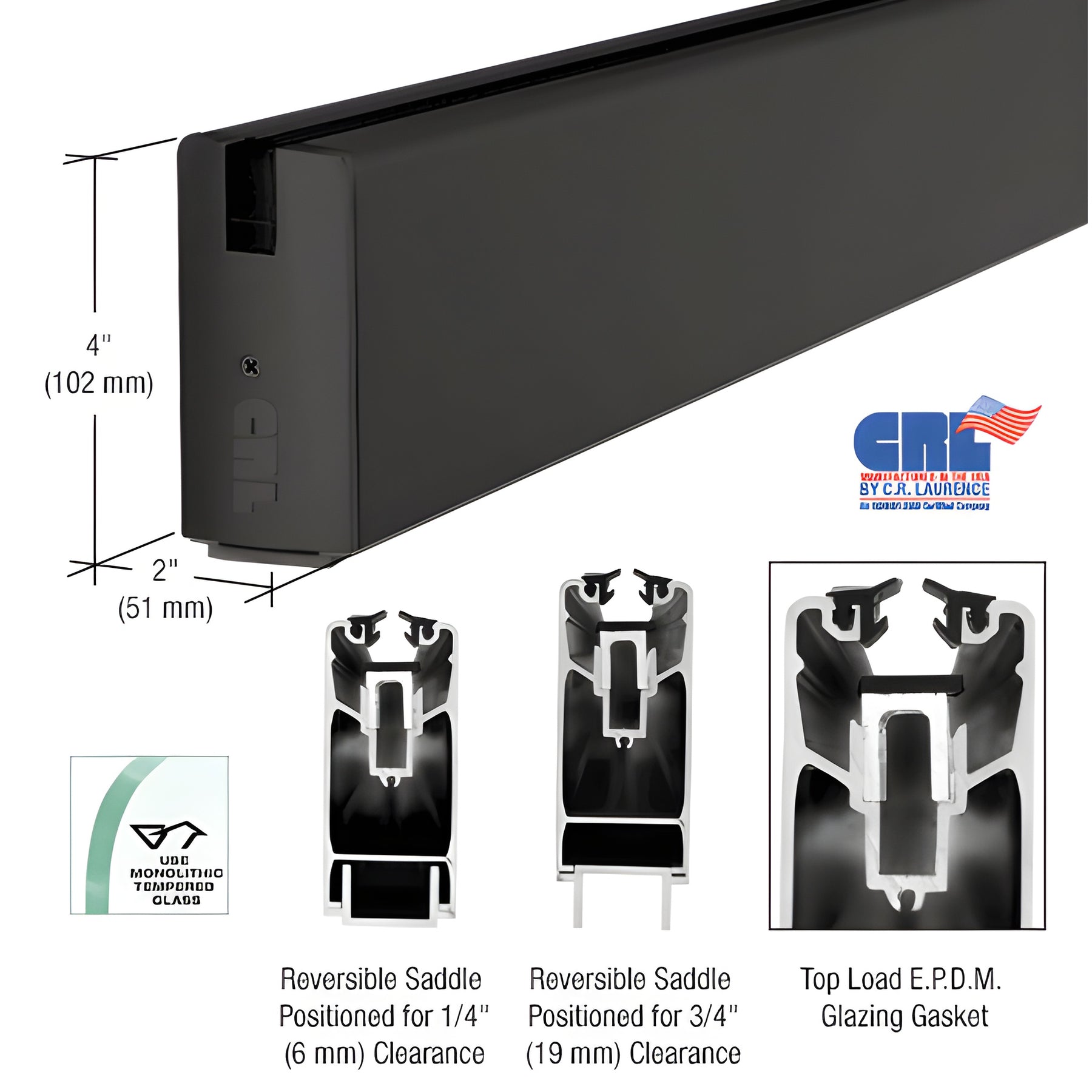

The CRL 4" (102 mm) Square Sidelite Rail is an ideal choice for office and storefront applications, offering secure installation for fixed glass panels.
Its reversible extruded saddle matches door clearances of 1/4" or 3/4" (6 or 19 mm), providing a seamless sightline with matching door rails.
Designed for easy use with monolithic tempered glass, the rail utilizes a 'lift and drop' method for installation, complemented by our Aluminum and Neoprene Setting Blocks and Top Load EPDM Roll-in Glazing Gasket.
Available in several finishes and lengths, these sidelite rails ensure a clean and professional look for any project.
Custom lengths and finishes are also available, and additional components such as setting blocks and end caps can be ordered separately.
For more information or assistance, please contact CRL Technical Sales.
Its reversible extruded saddle matches door clearances of 1/4" or 3/4" (6 or 19 mm), providing a seamless sightline with matching door rails.
Designed for easy use with monolithic tempered glass, the rail utilizes a 'lift and drop' method for installation, complemented by our Aluminum and Neoprene Setting Blocks and Top Load EPDM Roll-in Glazing Gasket.
Available in several finishes and lengths, these sidelite rails ensure a clean and professional look for any project.
Custom lengths and finishes are also available, and additional components such as setting blocks and end caps can be ordered separately.
For more information or assistance, please contact CRL Technical Sales.
