CRL Black Powder Coat 4" x 240" Length Tapered Sidelite Rail
CRL Black Powder Coat 4" x 240" Length Tapered Sidelite Rail
Regular price
$1,367.57 CAD
Regular price
Sale price
$1,367.57 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SR4TBL3812240
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Gloss Black |
| Floor Mount Saddle Included FMS | 2BL |
| Glazing Thickness | 3/8 in. (10 mm) |
| Height 4 in. | (102 mm) |
| Width 2-1/8 in. | (54 mm) |
Overview

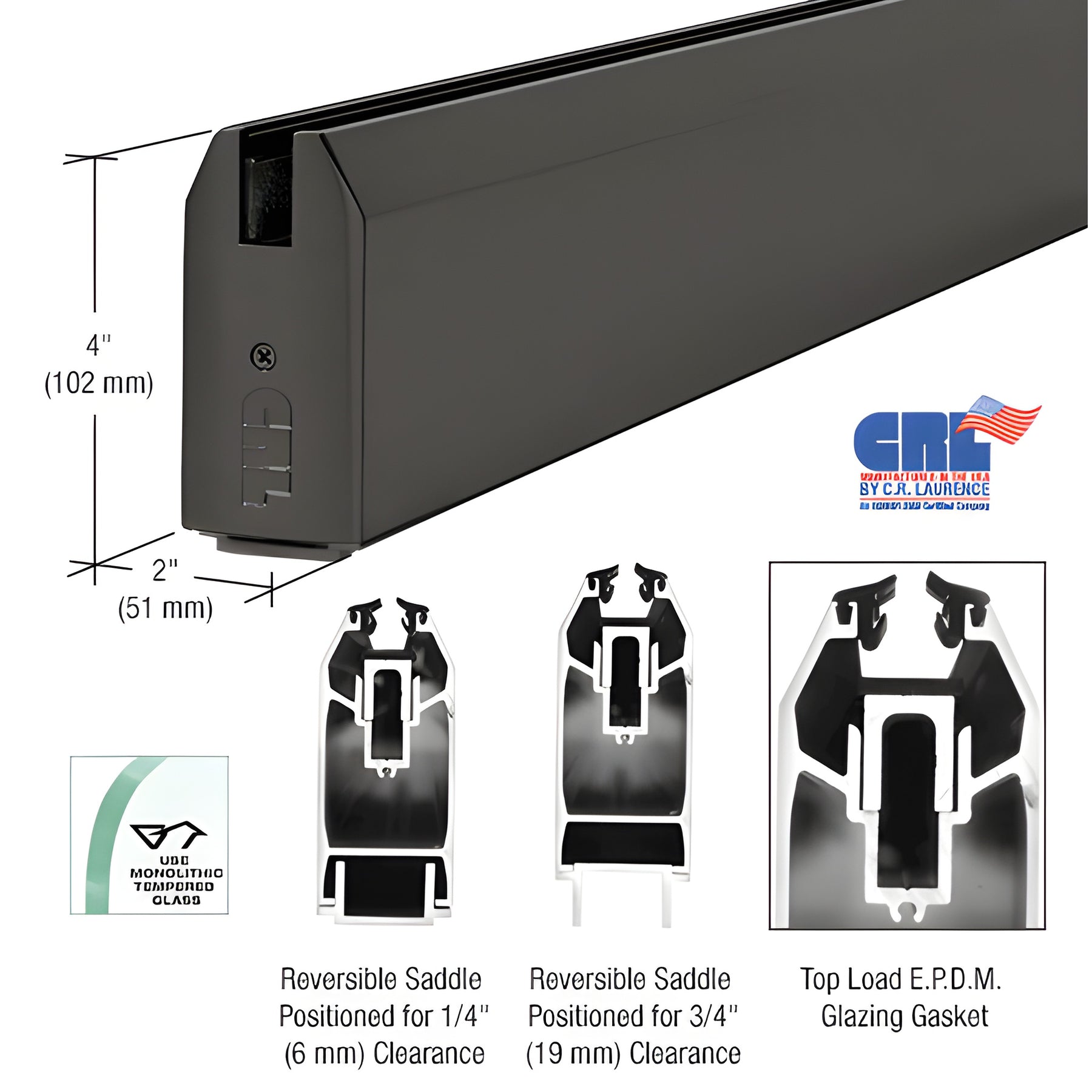

The CRL 4" (102 mm) Tapered Sidelite Rail is an ideal choice for office and storefront applications, providing a secure fit for fixed glass panels.
Designed for a seamless match with our Door Rails, these Sidelite Rails offer a versatile solution for top and bottom installation, or alongside smaller U-Channels.
Installation is straightforward with our 'lift and drop' method using 4" (102 mm) Aluminum and Neoprene Setting Blocks, and the glass is firmly secured with a Top Load EPDM Roll-in Glazing Gasket, avoiding the hassle of silicone sealant.
Available in several finishes and lengths, including 120" (3.05 m) and extra-long 240" (6.10 m) options, these Sidelite Rails ensure a perfect fit with various door configurations.
For a complete installation, don't forget to order the matching End Caps and Setting Blocks separately.
Designed for a seamless match with our Door Rails, these Sidelite Rails offer a versatile solution for top and bottom installation, or alongside smaller U-Channels.
Installation is straightforward with our 'lift and drop' method using 4" (102 mm) Aluminum and Neoprene Setting Blocks, and the glass is firmly secured with a Top Load EPDM Roll-in Glazing Gasket, avoiding the hassle of silicone sealant.
Available in several finishes and lengths, including 120" (3.05 m) and extra-long 240" (6.10 m) options, these Sidelite Rails ensure a perfect fit with various door configurations.
For a complete installation, don't forget to order the matching End Caps and Setting Blocks separately.
Specifications
Installation Instructions
Engineering & Test Reports
