CRL 4" Square Sliding Door Hardware - Black Powder Coat OX/XO SSR
CRL 4" Square Sliding Door Hardware - Black Powder Coat OX/XO SSR
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 4SSR2CBL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

Description
Door Configuration
XO or OX
Finish/Color
Gloss Black
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
2
Overview
- With 4" Square DR4S Series Door Rails and 4" Square SR4S Series Sidelite Bottom Rails
- Available in Seven Architectural Finishes
The CRL SSR Bottom Rolling Sliding Door System (SKU: 4SSR2CBL) features 4" (102 mm) square rails and the proven Wedge-Lock® Glass Securing System used in DR4S Series door rails on all sliding panels. Bottom rails are available with or without locks to suit secure, commercial, or residential bottom rolling sliding door applications.
The fixed sidelites use SR4S Series sidelite bottom rails with roll-in vinyl at the panel base and an integrated glazing channel with roll-in vinyl in the top track. Maximum door width: 48" (1.22 m). Maximum door height: 108" (2.74 m). Maximum panel weight: 234 lb (106 kg). All panels are custom fabricated to your specifications, making this bottom rolling sliding door system ideal for custom glass doors, sliding glass entrances, and ADA-compliant sliding configurations.
Choose your finish and request a quote today to get a custom-fabricated CRL SSR bottom rolling sliding door system.
Specifications

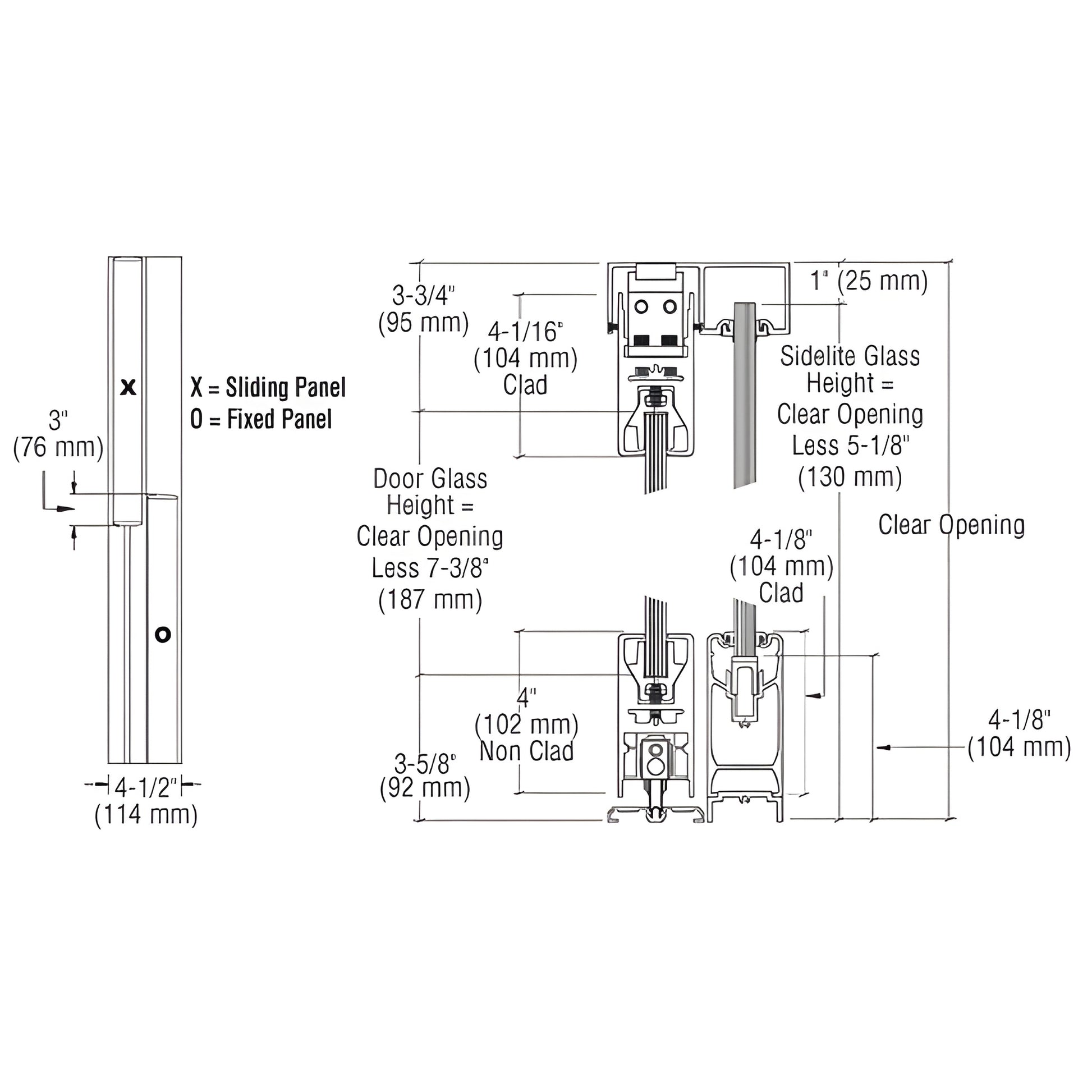

CAD Drawings - pdf
