CRL OXO Format Black Powder-Coat Sliding Door 4" Square Rail
CRL OXO Format Black Powder-Coat Sliding Door 4" Square Rail
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 4SDR3EBL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Gloss Black
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
3
Overview
- With 4" Square DR4S Series Door Rails
- Available in Seven Architectural Finishes

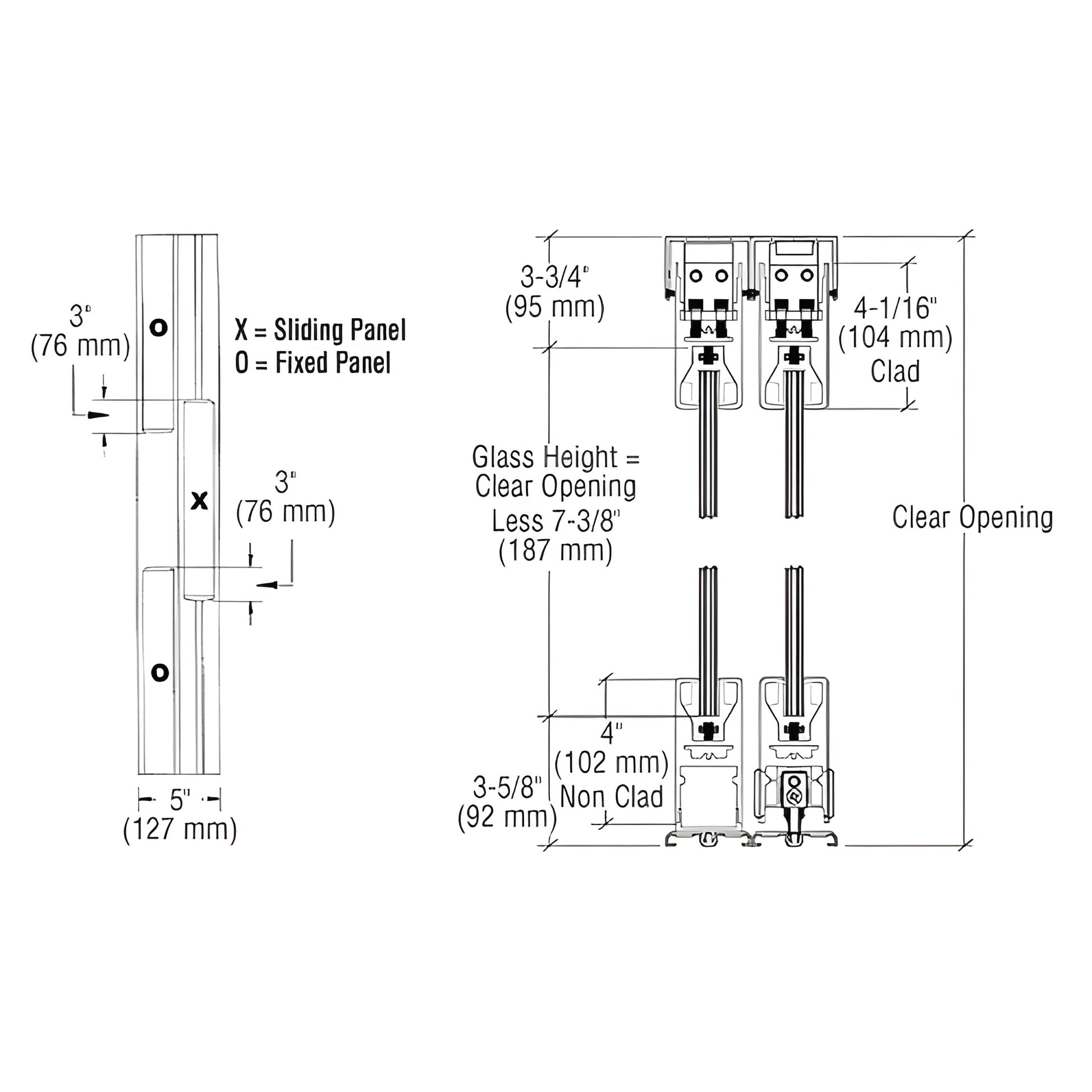

The CRL SDR Bottom Rolling Sliding Door System with 4" (102 mm) square rails top and bottom features the patented Wedge-Lock® Glass Securing System for reliable, low-profile glass retention. DR4S Series door and fixed panel rails are custom fabricated to your specifications and support a clean, contemporary look for commercial and residential interior openings. The system accommodates doors up to 48" (1.22 m) wide and 108" (2.74 m) high, with a maximum door weight of 234 lb (106 kg). Locks may be ordered in the bottom rail when required. SKU: 4SDR3EBL
Specifications
CAD Drawings - pdf
