CRL OXO SSR 4 in Black Powder-Coat Square Sliding Door Hardware Kit
CRL OXO SSR 4 in Black Powder-Coat Square Sliding Door Hardware Kit
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 4SSR3EBL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
OXO
Finish/Color
Gloss Black
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
3
Overview
- With 4" Square DR4S Series Door Rails and 4" Square SR4S Series Sidelite Bottom Rails
- Available in Seven Architectural Finishes
The CRL SSR Bottom Rolling Sliding Door System (SKU: 4SSR3EBL) features 4" (102 mm) square rails and the proven Wedge‑Lock® Glass Securing System used in DR4S Series door rails. Bottom rails for sliding panels are available with or without locks to suit secure entry requirements.
Fixed sidelite panels use SR4S Series sidelite rails with roll‑in vinyl at the bottom and an integrated glazing channel with roll‑in vinyl at the top track. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum panel weight: 234 lb (106 kg). All panels are custom fabricated to your specifications for precise fit and finish.
Choose the CRL SSR Bottom Rolling Sliding Door System for durable, custom bottom rolling sliding doors with 4" square rails and Wedge‑Lock® glazing. Contact CRL to order or request a quote.
Specifications

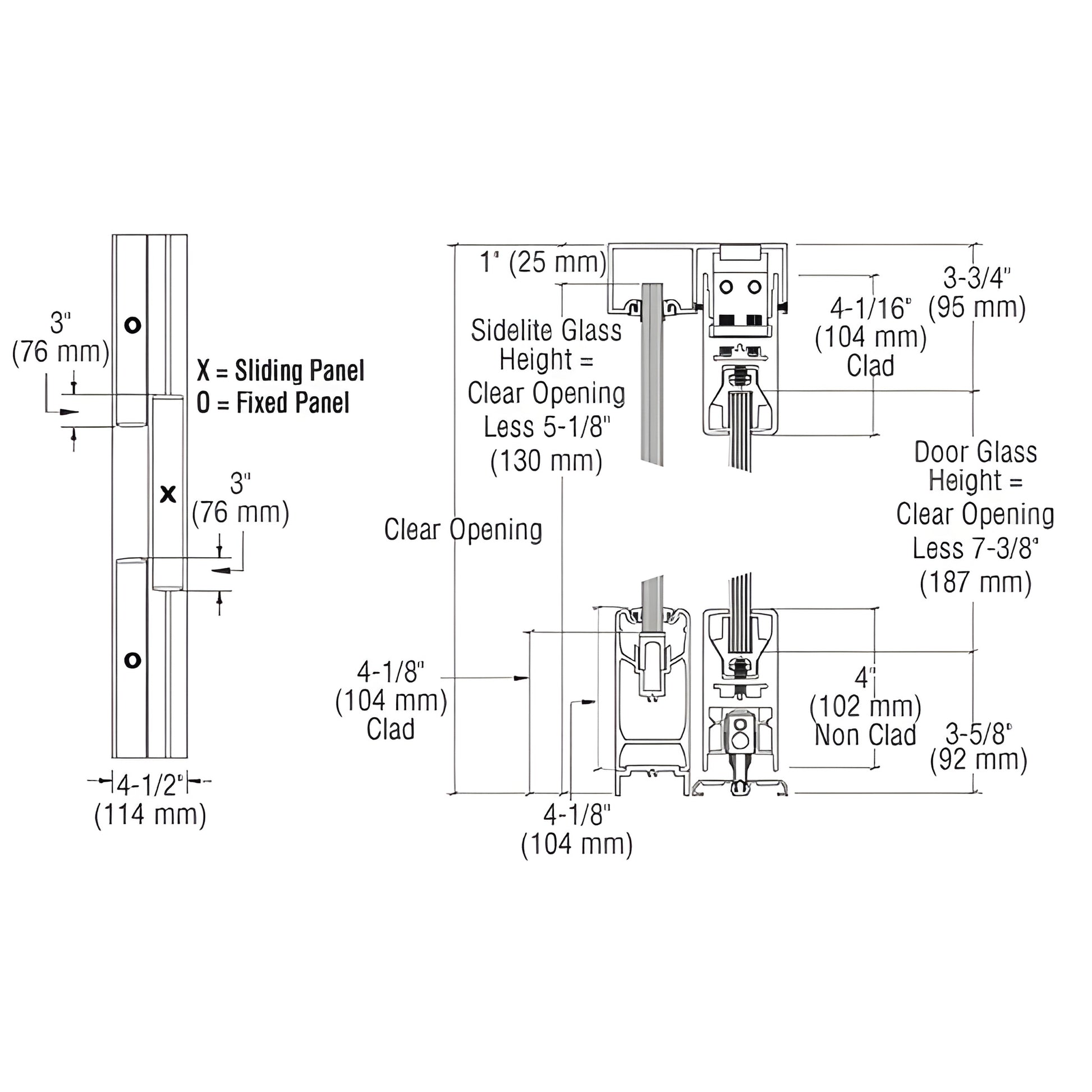

CAD Drawings - pdf
