CRL OXXO Format Black Powder-Coat Sliding Door System 4" Square Rail
CRL OXXO Format Black Powder-Coat Sliding Door System 4" Square Rail
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 4SDR4FBL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
OXXO
Finish/Color
Gloss Black
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
4
Overview
- With 4" Square DR4S Series Door Rails
- Available in Seven Architectural Finishes
The CRL SDR Bottom Rolling Sliding Door System (SKU: 4SDR4FBL) features 4" (102 mm) square top and bottom DR4S rails and uses CRL’s Wedge-Lock® Glass Securing System for a secure, low-profile glass installation. DR4S Series rails are custom fabricated for door and fixed panels to your specifications and are available in seven architectural finishes to match commercial and residential interiors. Doors can be ordered with or without bottom-rail locks. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum weight: 234 lbs. (106 kg).
Specifications

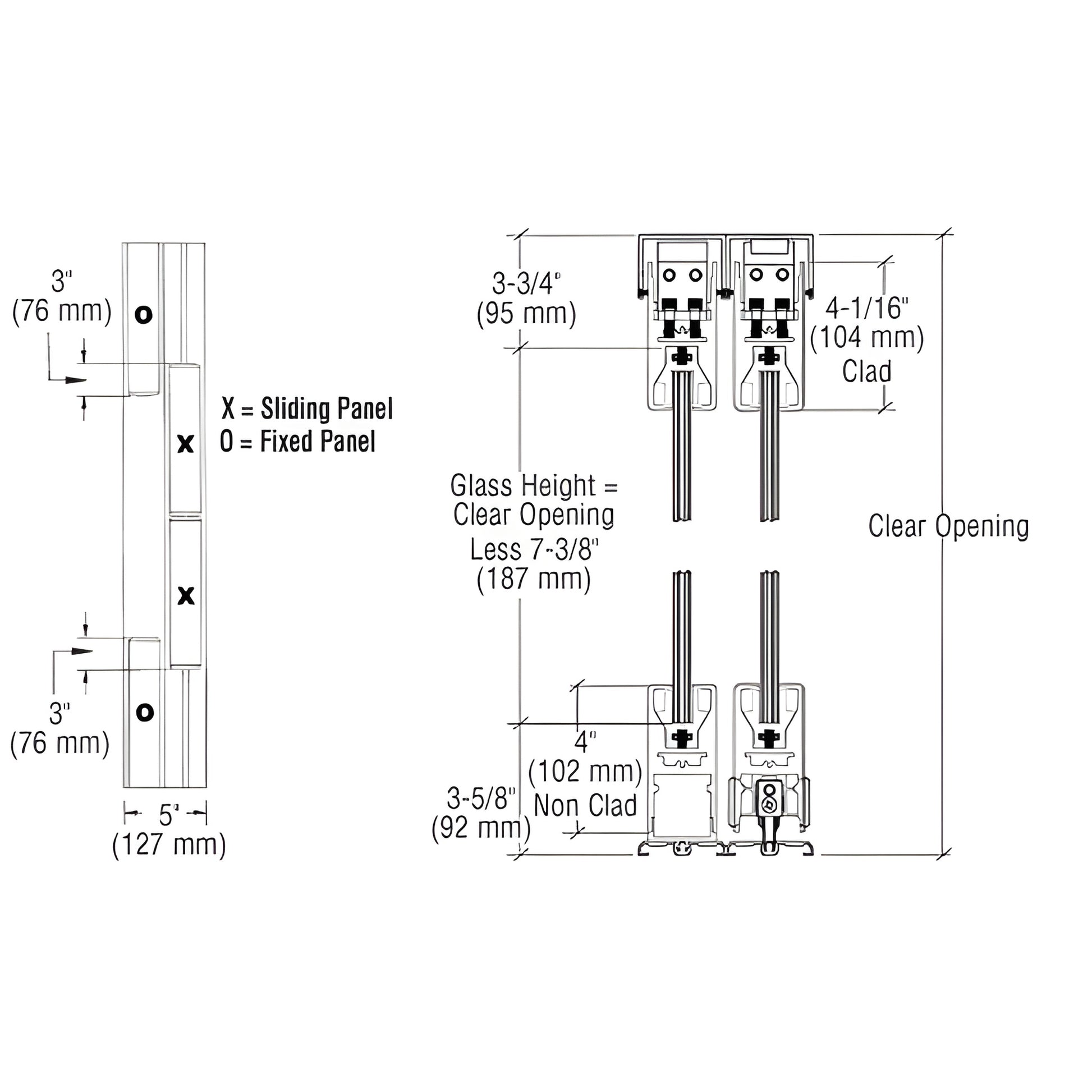

CAD Drawings - pdf
