CRL
CRL OXXO SSR 4-inch Black Powder-Coated Square Sliding Door Hardware
CRL OXXO SSR 4-inch Black Powder-Coated Square Sliding Door Hardware
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 4SSR4FBL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
OXXO
Finish/Color
Gloss Black
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
4
Overview
- 4" Square DR4S Series door rails for sliding panels and 4" Square SR4S sidelite bottom rails
- Available in seven architectural finishes
The CRL SSR Bottom Rolling Sliding Door System (SKU: 4SSR4FBL) is a bottom-rolling sliding glass door system featuring 4" (102 mm) square rails and the proven Wedge-Lock® Glass Securing System used in the DR4S Series. Sliding panels can be specified with or without locks integrated into the bottom rail for secure, low-profile operation.
The fixed sidelite panels use SR4S Series rails with roll-in vinyl at the bottom and an integrated glazing channel with roll-in vinyl in the top track for weather resistance and smooth performance. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum panel weight: 234 lb (106 kg). Panels are custom fabricated to your specifications—ideal for commercial and residential sliding glass door projects where durability and clean aesthetics matter.
Choose CRL SSR for a durable bottom rolling sliding glass door system with Wedge-Lock security and custom finish options. Contact CRL to request a quote or technical assistance.
Specifications

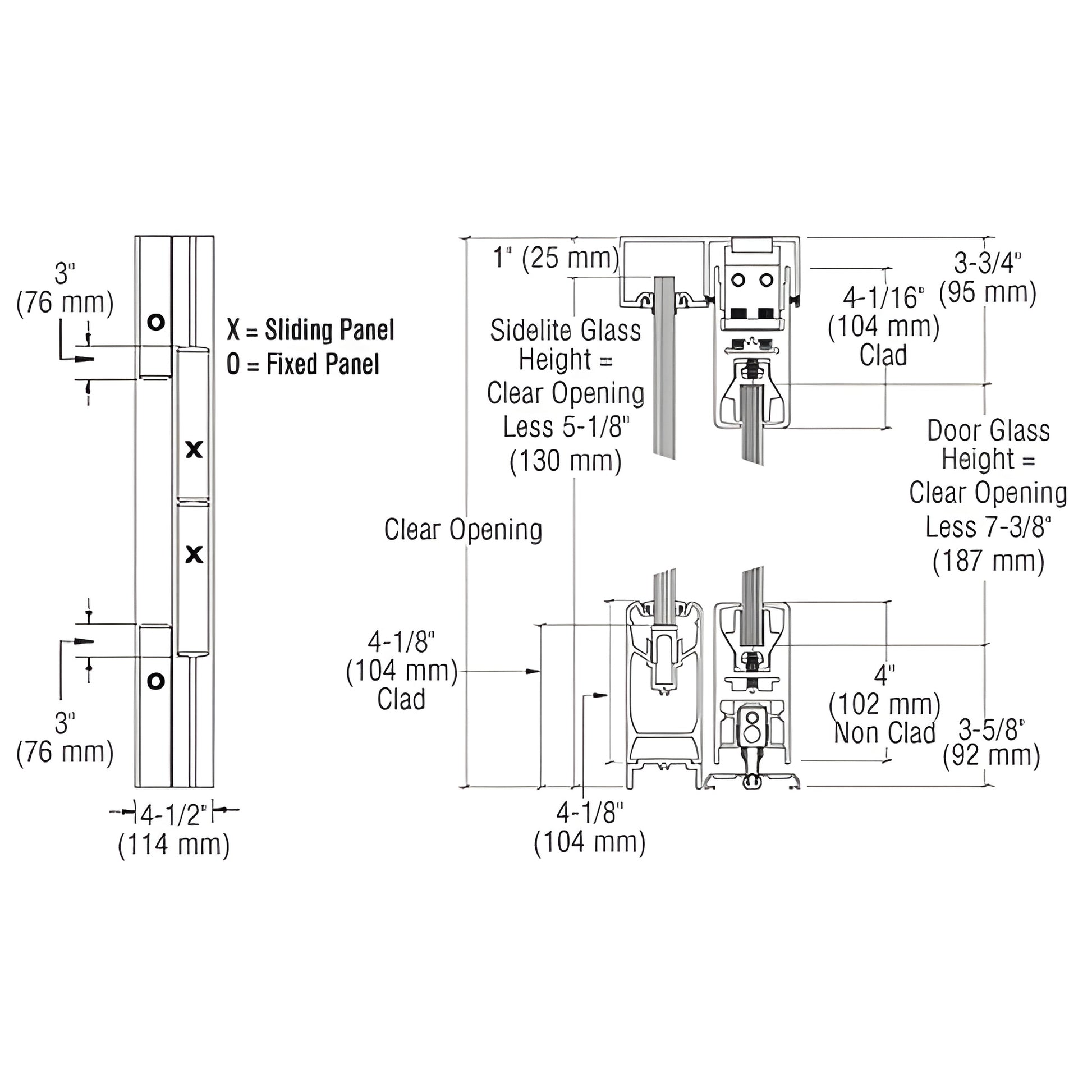

CAD Drawings - pdf
