CRL OXXO SSR Bottom-Rolling Sliding Door System, Black Powder Coat
CRL OXXO SSR Bottom-Rolling Sliding Door System, Black Powder Coat
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SSR4FBL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
OXXO
Finish/Color
Black
Height
4 in. (102 mm)
Material
Aluminum
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Minimum Door Width
234 in. (5944 mm)
Overview
- With 4" Tapered DR4T Series Door Rails and 4" Tapered SR4T Series Sidelite Bottom Rails
- Available in Seven Architectural Finishes
The CRL SSR Bottom Rolling Sliding Door System (SKU: SSR4FBL) features 4" (102 mm) tapered rails and the proprietary Wedge-Lock® Glass Securing System used in DR4T Series door rails for reliable, tool-free glass retention on all sliding panels. Rails can be ordered with or without locks in the bottom rail for flexible security options.
Fixed panels use SR4T Series sidelite rails with roll-in vinyl at the panel bottom and an integrated glazing channel with roll-in vinyl in the top track for smooth operation and weather resistance. This bottom rolling sliding door system supports a maximum door width of 48" (1.22 m), maximum door height of 108" (2.74 m), and a maximum panel weight of 234 lb (106 kg). All panels are custom fabricated to your specifications and finish choices.
Specifications

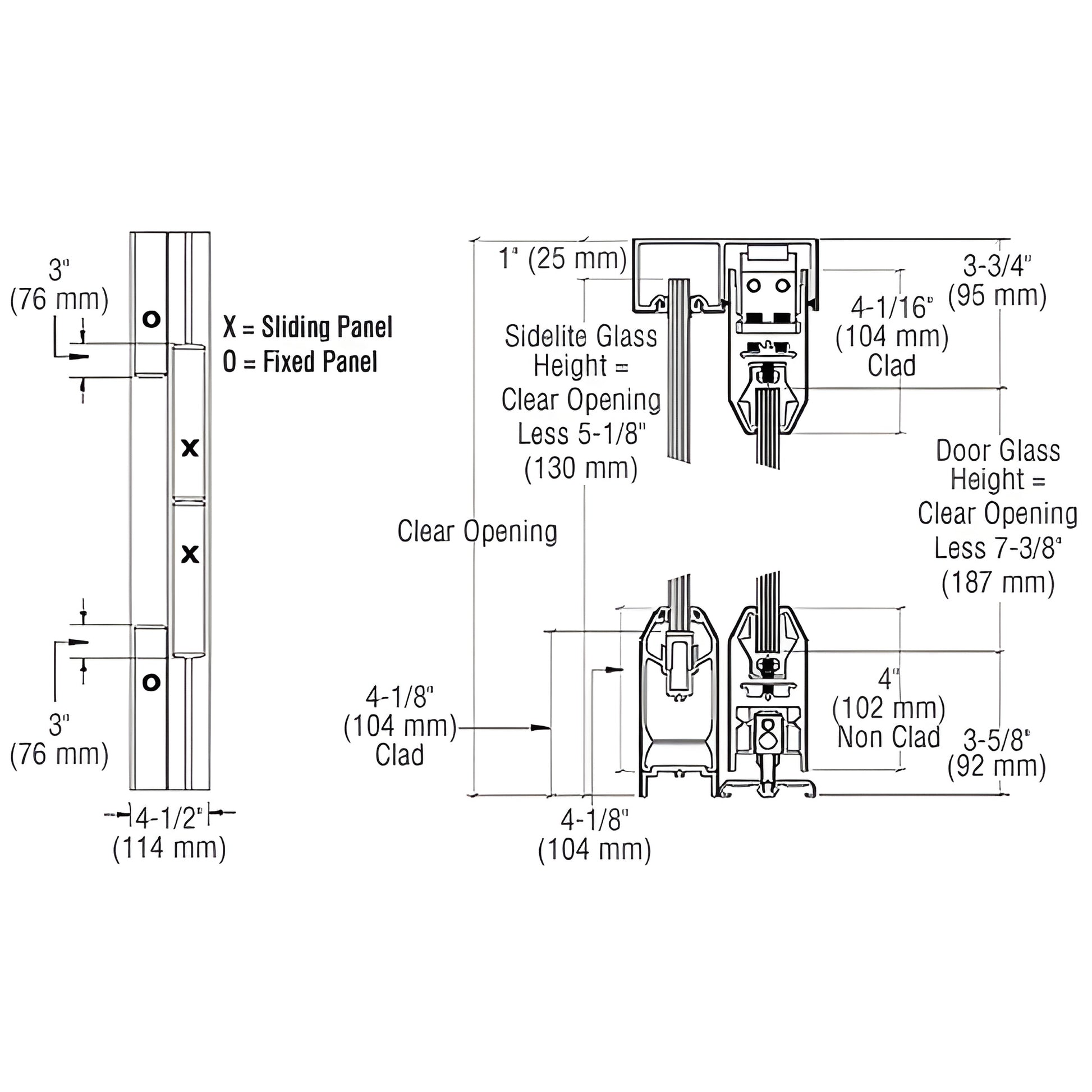

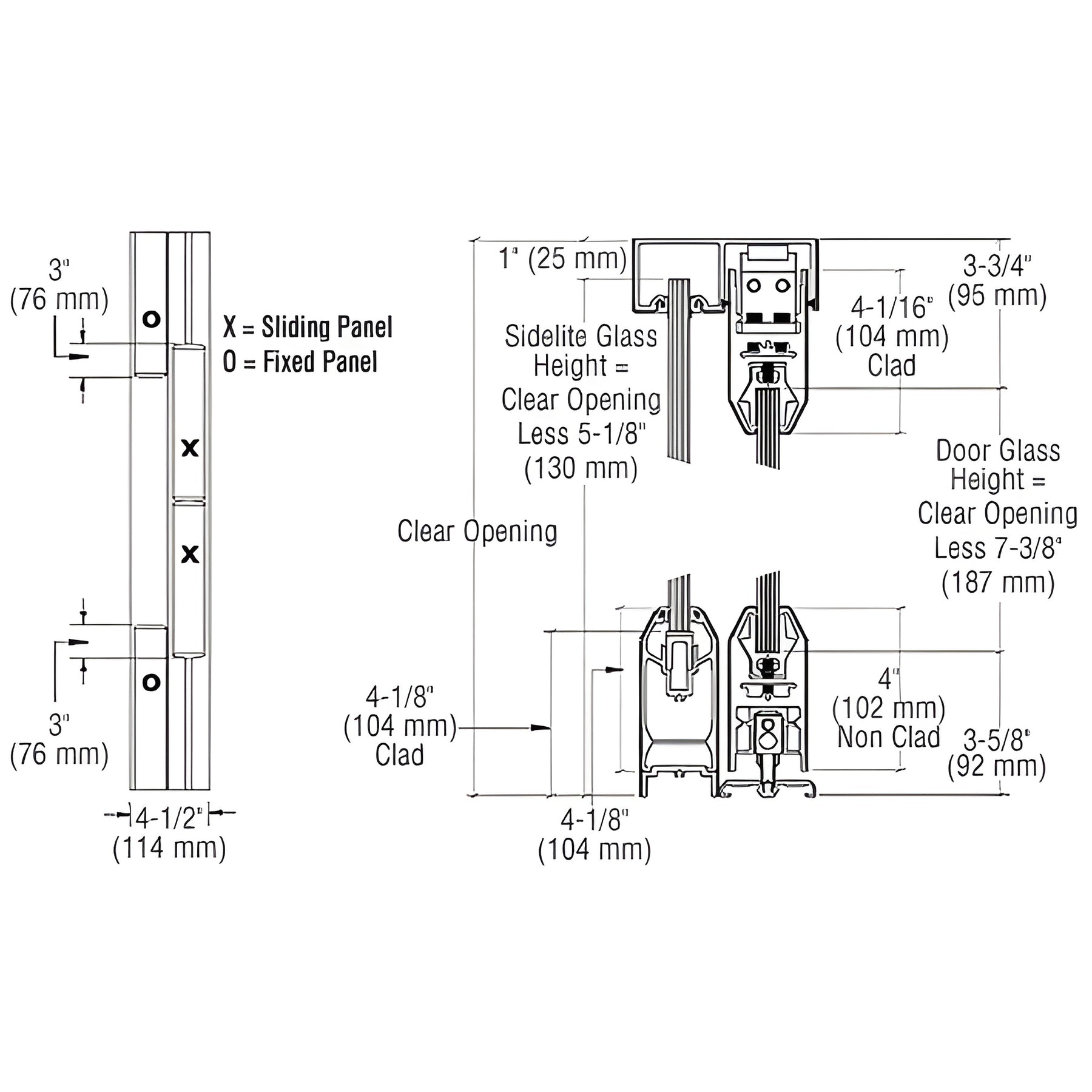

CAD Drawings - pdf
