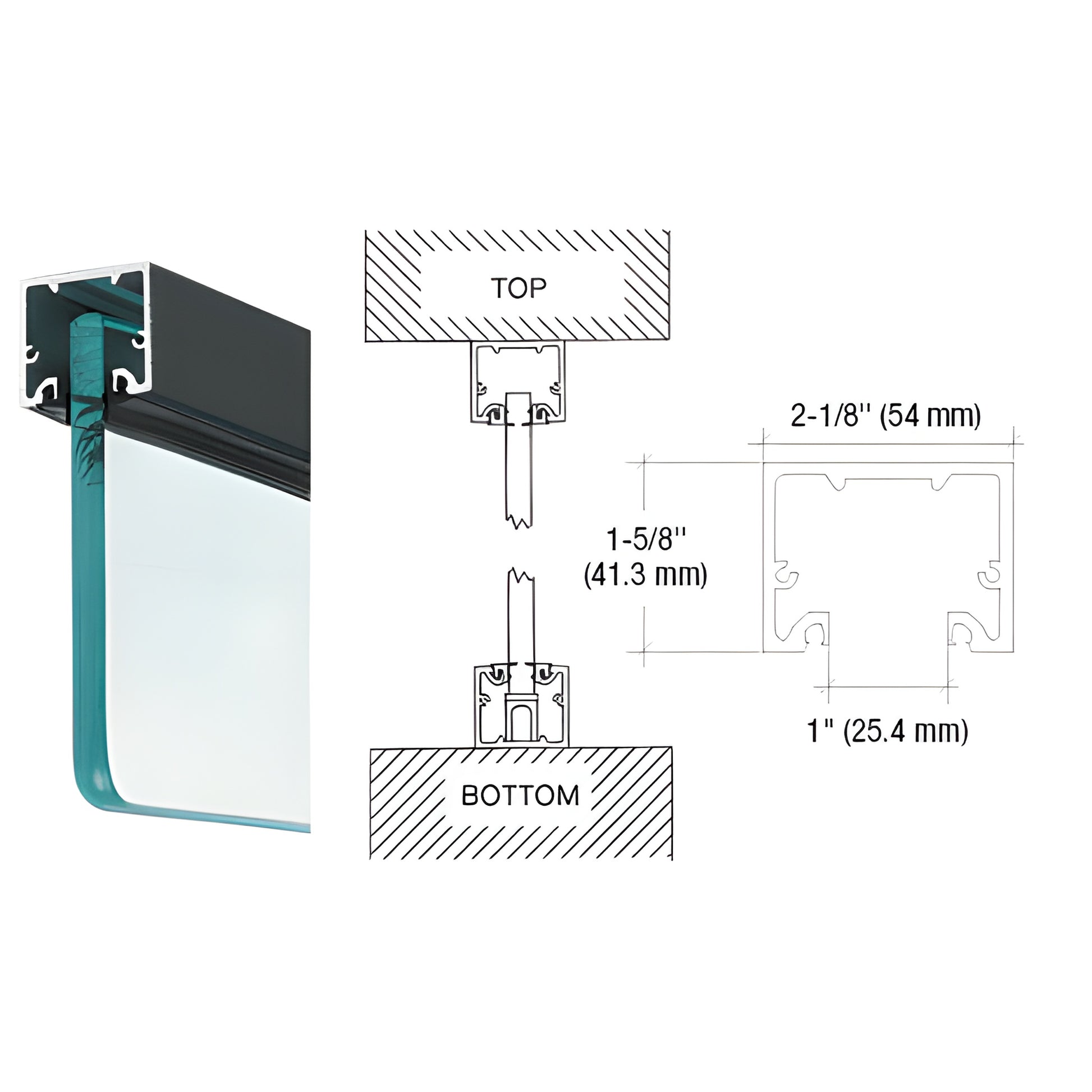

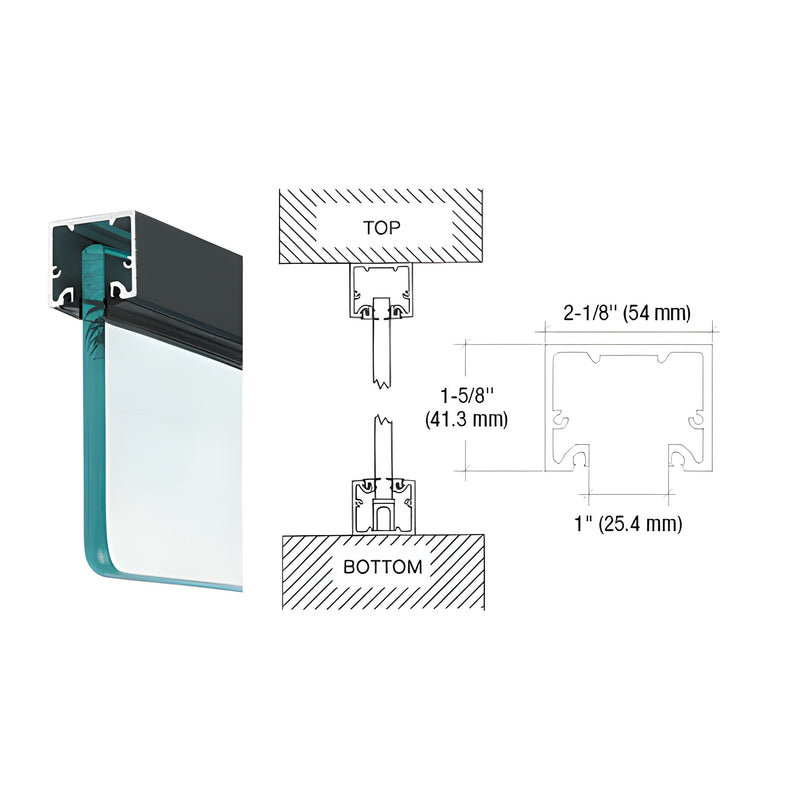

• NH3BLCL gloss-black aluminum narrow header/U-channel for 3/4" glass, 2-1/8" wide 1-5/8" high, profile view.
1 1

CRL

CRL Black Powder-Coat Wide U-Channel, Top-Load Gasket for 3/4" Glass

CRL Black Powder-Coat Wide U-Channel, Top-Load Gasket for 3/4" Glass

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# NH3BLCL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Gloss Black
Glazing Thickness
3/4 in. (19 mm)
Height
1-5/8 in. (41 mm)
Length
Specify
Width
2-1/8 in. (54 mm)

Overview

  • Matches the width of door and sidelite rails; accepts roll-in gasket, top pivot block and flush snap-in insert — ideal for glass door assemblies
  • Available in stock lengths, fabricated headers, or headers with side pockets for "lift and drop" panel glazing
  • Special sidelite rail adapter enables a continuous sight line when used with the narrow header for a seamless appearance

This CRL Wide U-Channel and Narrow Header (SKU: NH3BLCL) is engineered for three primary uses: as a U-channel matching our Sidelite and Door Rails; as a narrow header that accepts a top free-swinging pivot to secure door tops; and as an Even Sight Line System when the fabricated narrow header is installed first and the sidelite rail is secured with the 1/4" (6.4 mm) header saddle. All drilling, tapping and fabrication are completed at the factory to save installation time and eliminate on-site fabrication. For application guidance, contact our Technical Sales Department.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please contact CRL Customer Service before ordering. Product images represent the actual product or a close match; colors may vary with monitor settings.


Need help specifying this aluminium narrow header or U-channel for glass doors? Contact CRL Technical Sales to get assistance and place an order.
