CRL Black Powdercoat U-Channel Top-Load Roll-In Gasket 3/8-1/2" Custom
CRL Black Powdercoat U-Channel Top-Load Roll-In Gasket 3/8-1/2" Custom
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# NH2BLCL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

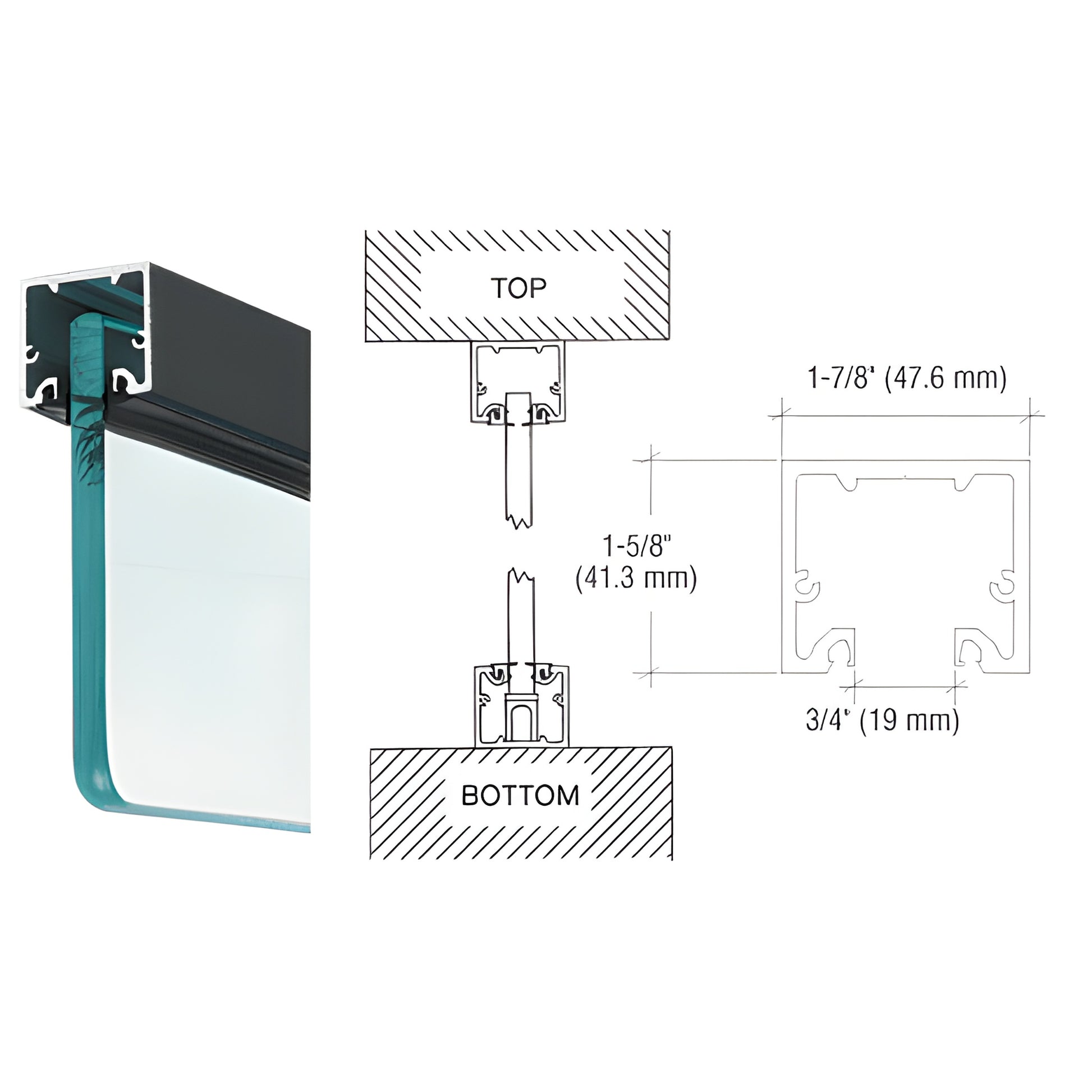

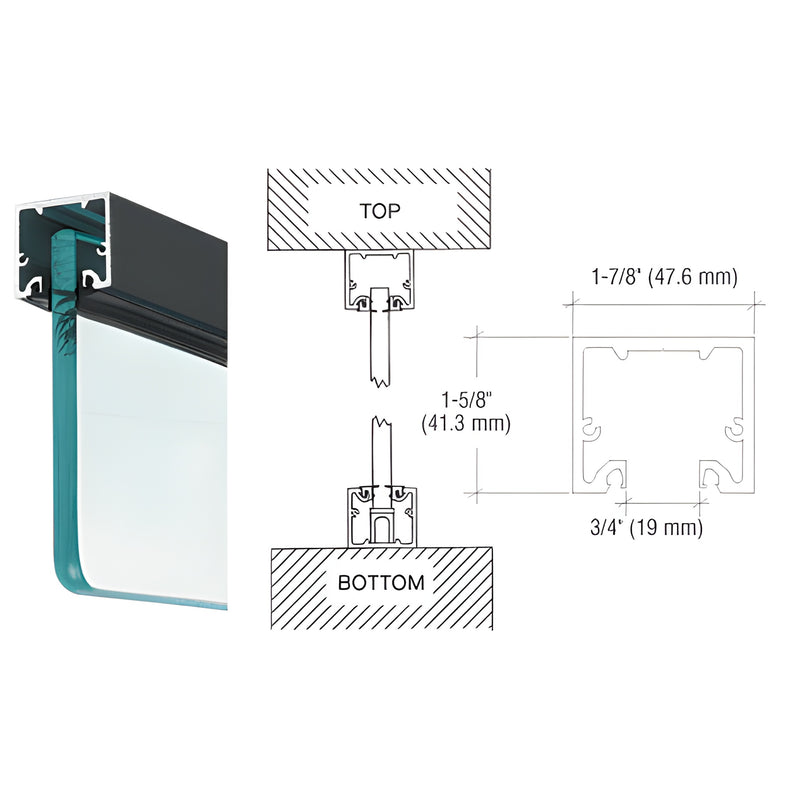

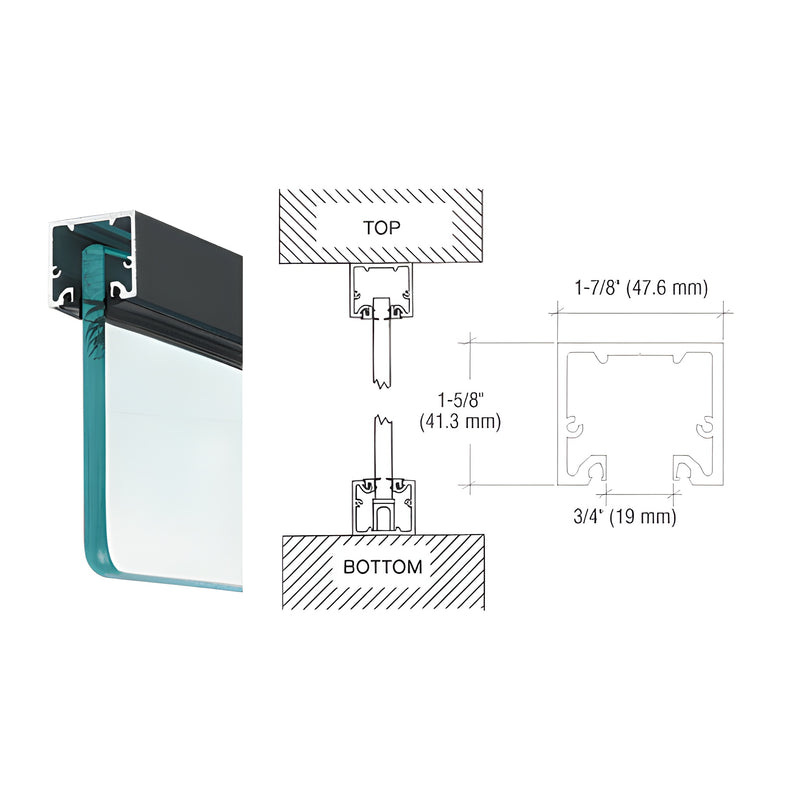

Description
Finish/Color
Black Bronze Anodized
Glazing Thickness
3/8 in. (10 mm)
Height
1-5/8 in. (41 mm)
Length
Specify
Width
1-7/8 in. (48 mm)
Overview
- Matches width of door and sidelite rails; accepts roll-in gasket, top pivot block and flush snap-in insert
- Available in stock lengths, fabricated headers, or headers with side pockets for "lift and drop" panel glazing
- Special sidelite rail adapter enables a continuous sight line when using the sidelite rail with the narrow header
This CRL Wide U-Channel and Narrow Header (SKU: NH2BLCL) is designed for versatile glass door and sidelite framing: use as a U-channel matching our Sidelite and Door Rails, as a narrow header that accepts a top free‑swinging pivot to secure doors, or as part of an Even Sight Line System by attaching the fabricated Narrow Header to the opening and securing the Sidelite Rail to it with the 1/4" (6.4 mm) header saddle. All drilling, tapping and fabrication are completed at the factory to save installation time and eliminate field fabrication. For technical questions, contact the CRL Technical Sales Department.
Order part NH2BLCL or contact CRL for a quote and installation guidance.
Specifications
CAD Drawings - dwg
