CRL Black Powder Coat Sliding Door System, 4 in Top/Bottom Rail
CRL Black Powder Coat Sliding Door System, 4 in Top/Bottom Rail
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 4SDR1ABL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Gloss Black
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Overview
- With 4" Square DR4S Series Door Rails — 4" (102 mm) square rails for bottom rolling sliding doors
- Available in Seven Architectural Finishes — multiple architectural finishes for commercial and residential applications
The CRL SDR Bottom Rolling Sliding Door System with 4" (102 mm) Square Rails top and bottom uses the Wedge-Lock® Glass Securing System for secure, tool-free glass retention. DR4S Series door rails are custom fabricated to your specifications and accommodate all door and fixed panels. Doors are available with or without locks in the bottom rail. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum door weight: 234 lbs. (106 kg). Ideal for projects needing durable, low-profile bottom rolling sliding door hardware.
Contact CRL Customer Service to confirm finishes, request exact weights, or get a custom quote.
Specifications

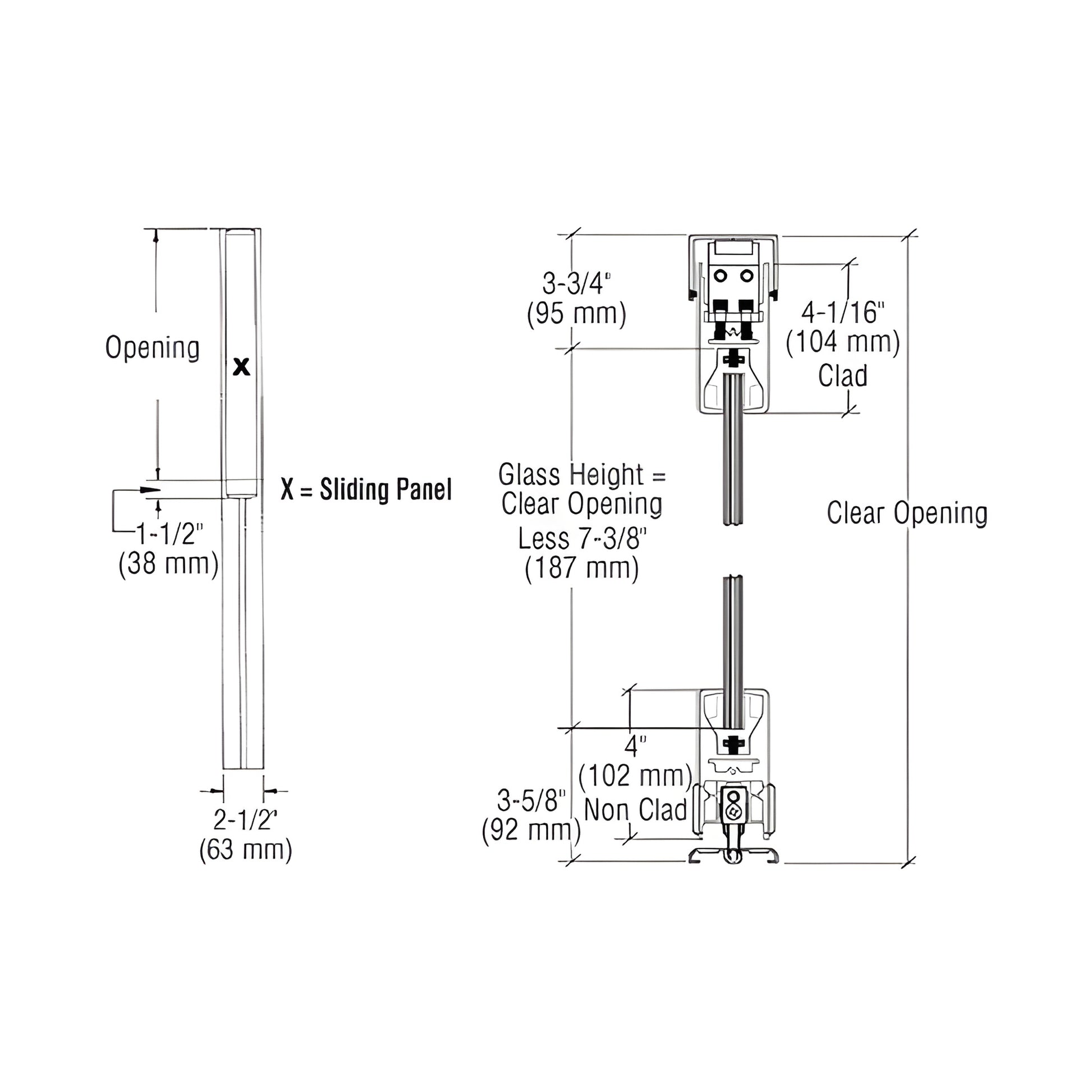

CAD Drawings - pdf
