CRL Black Powder-Coat X-/X Sliding Door Entrance, 4 in Tapered Rail
CRL Black Powder-Coat X-/X Sliding Door Entrance, 4 in Tapered Rail
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SDR1ABL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
X-/-X
Finish/Color
Black
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Overview
- 4" (102 mm) Tapered DR4T Series Door Rails for top and bottom
- Available in seven architectural finishes
The CRL SDR Bottom Rolling Sliding Door System (SKU: SDR1ABL) features 4" tapered rails top and bottom and the Wedge-Lock® Glass Securing System for secure, clean glass retention. DR4T Series rails accommodate all door and fixed panels and are custom fabricated to your specifications. Doors may be ordered with or without bottom-rail locks. Maximum door width: 48" (1.22 m); maximum height: 108" (2.74 m); maximum weight: 234 lb (106 kg). Ideal for commercial and residential bottom-rolling sliding door applications where durable, low-profile hardware and multiple architectural finishes are required.
Order or request a quote today for custom-fabricated DR4T bottom-rolling sliding door hardware.
Specifications

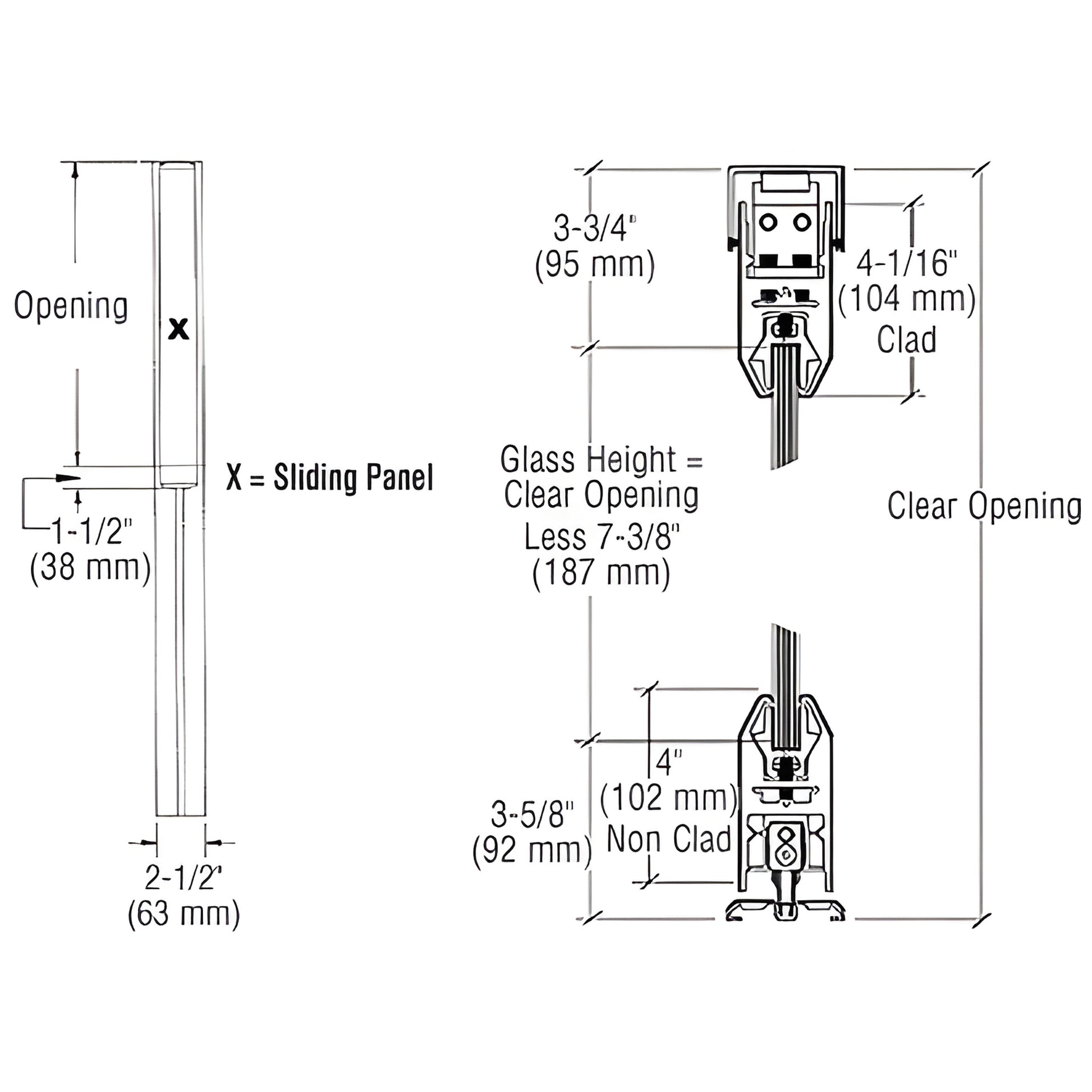

CAD Drawings - pdf
