CRL XO/OX Black Powder Coat 4" Square Rail Sliding Door System
CRL XO/OX Black Powder Coat 4" Square Rail Sliding Door System
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 4SDR2CBL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Gloss Black
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Overview
- With 4" Square DR4S Series Door Rails
- Available in Seven Architectural Finishes
The CRL SDR Bottom Rolling Sliding Door System (SKU: 4SDR2CBL) features 4" (102 mm) square top and bottom rails and the patented Wedge-Lock® Glass Securing System for secure, low-profile glass retention. DR4S Series rails are custom fabricated for door and fixed panels and can be ordered with or without locks in the bottom rail. Designed for heavy-duty residential and commercial sliding applications, the system supports doors up to 48" (1.22 m) wide and 108" (2.74 m) high with a maximum panel weight of 234 lb (106 kg). Available in seven architectural finishes for coordinating interior and storefront projects.
Need exact shipping weight or a custom quote? Contact CRL Customer Service to order or request specifications.
Specifications

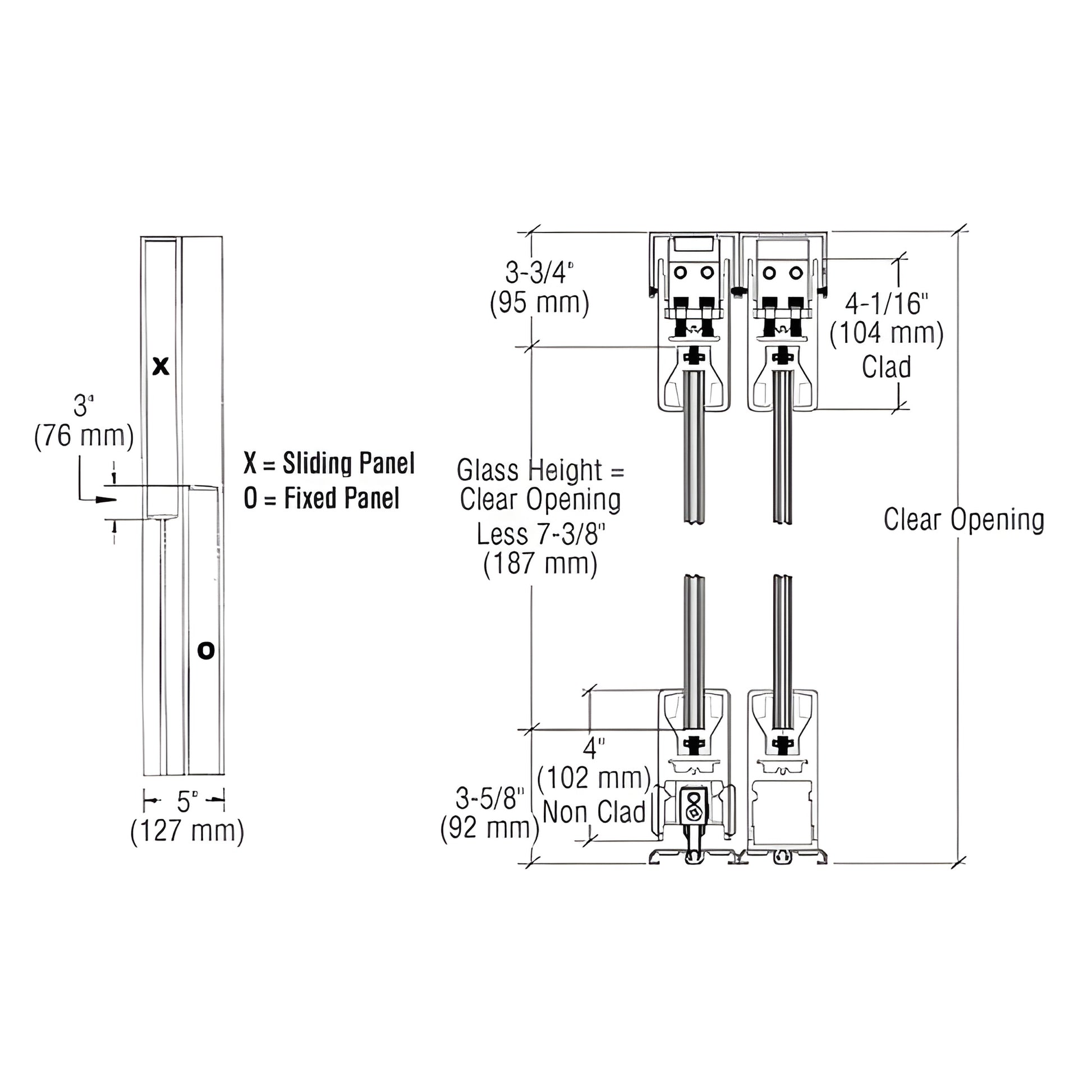

CAD Drawings - pdf
