Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please contact CRL Customer Service before placing your order. Product images show the actual product or a close representation; colors may vary by monitor and video card settings.
CRL
CRL Black Powder-Coated XO/OX Sliding Door System 4 in Tapered Rail
CRL Black Powder-Coated XO/OX Sliding Door System 4 in Tapered Rail
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SDR2CBL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
XO/OX
Door Type
Sliding
Finish/Color
Black
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Overview
- 4" Tapered DR4T Series door rails (top and bottom)
- Available in seven architectural finishes
The CRL SDR Bottom Rolling Sliding Door System features 4" (102 mm) tapered rails top and bottom and uses the Wedge-Lock® Glass Securing System for secure, reliable glass retention. DR4T Series door rails are used for all door and fixed panels and are custom fabricated to your specifications for precise fit and finish. Doors are available with or without bottom-rail locks. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum weight: 234 lb (106 kg). This bottom rolling sliding door system is ideal for architectural applications requiring durable tapered rails and customizable finishes.
SKU: SDR2CBL — Contact CRL to request a quote or place a custom order.
Specifications

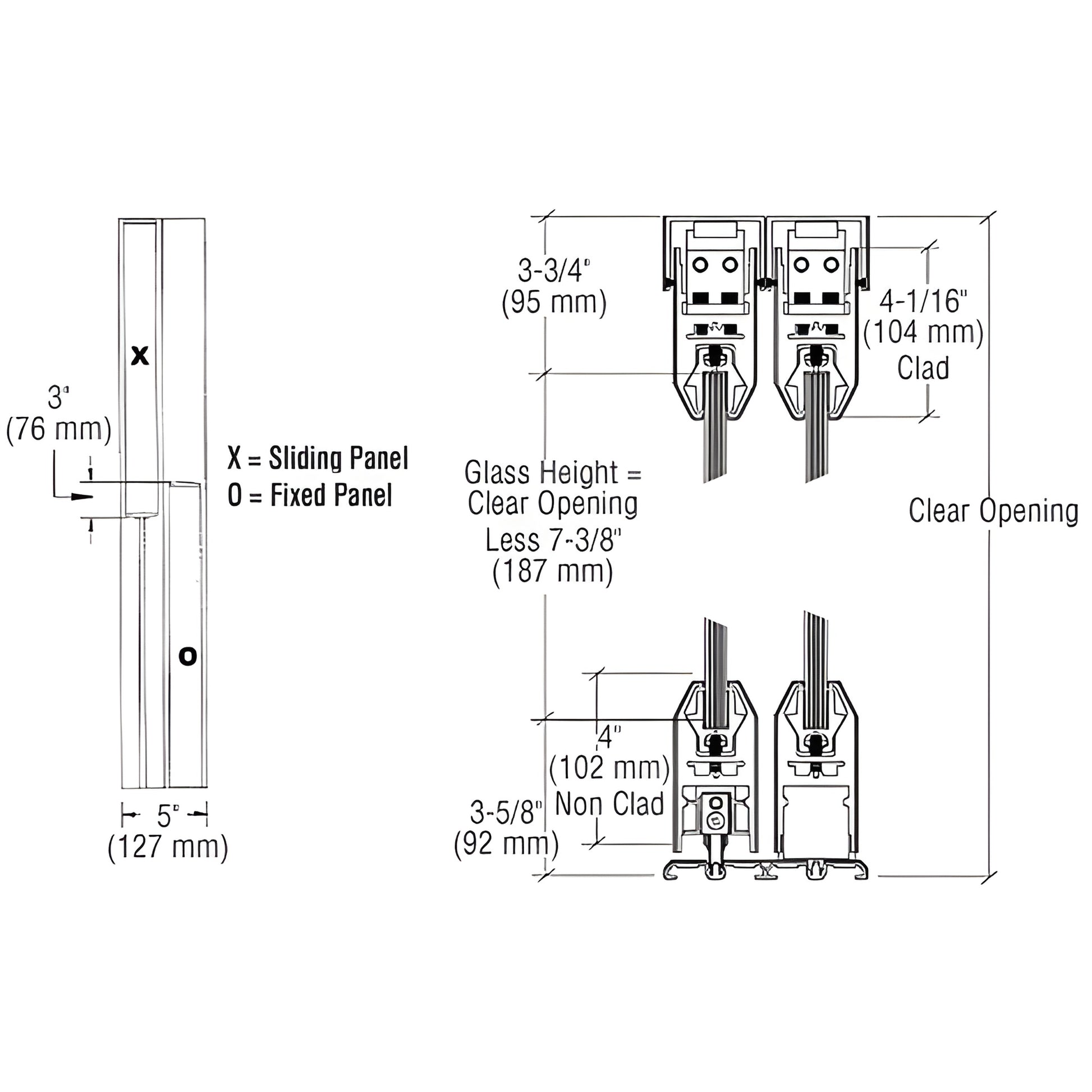

CAD Drawings - pdf
