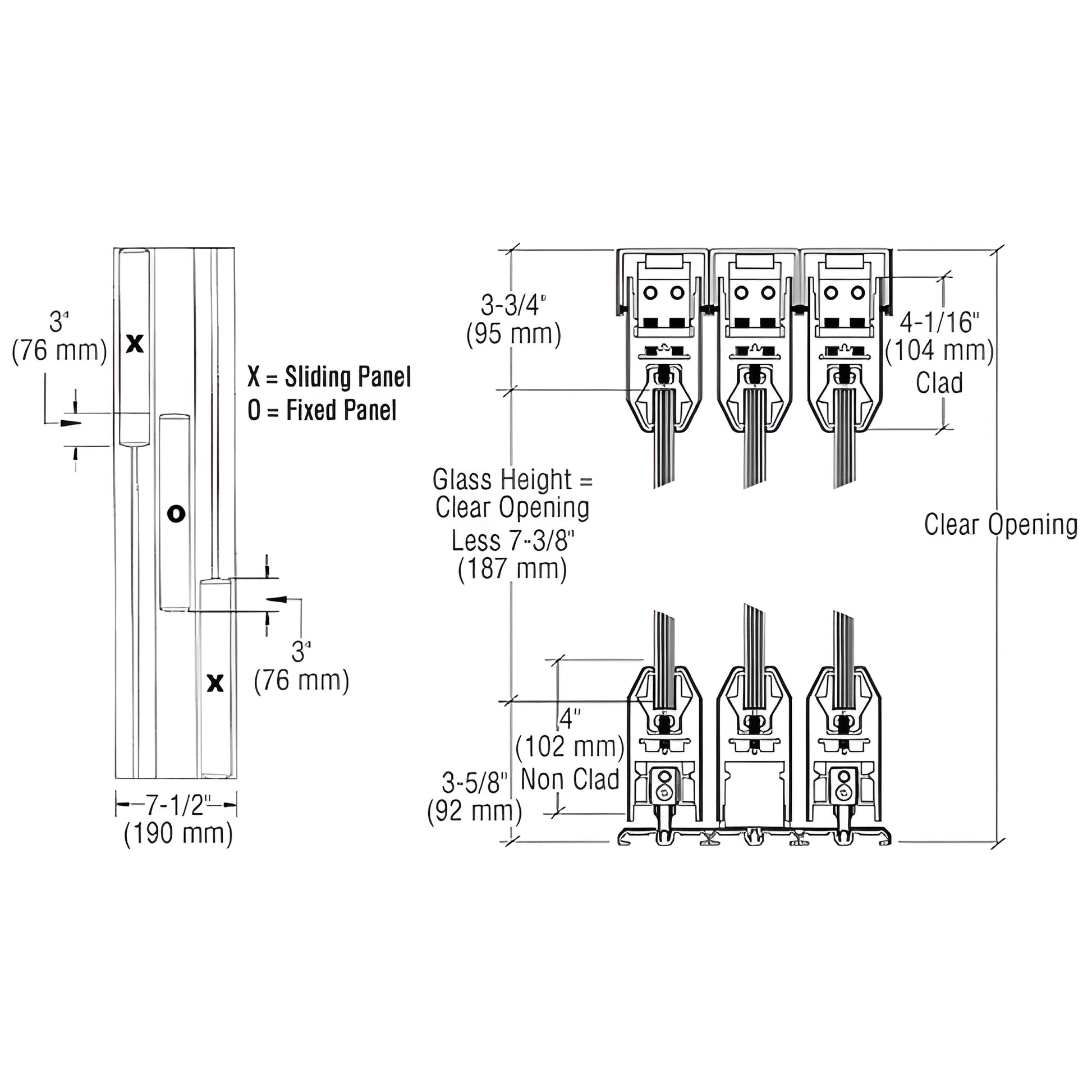

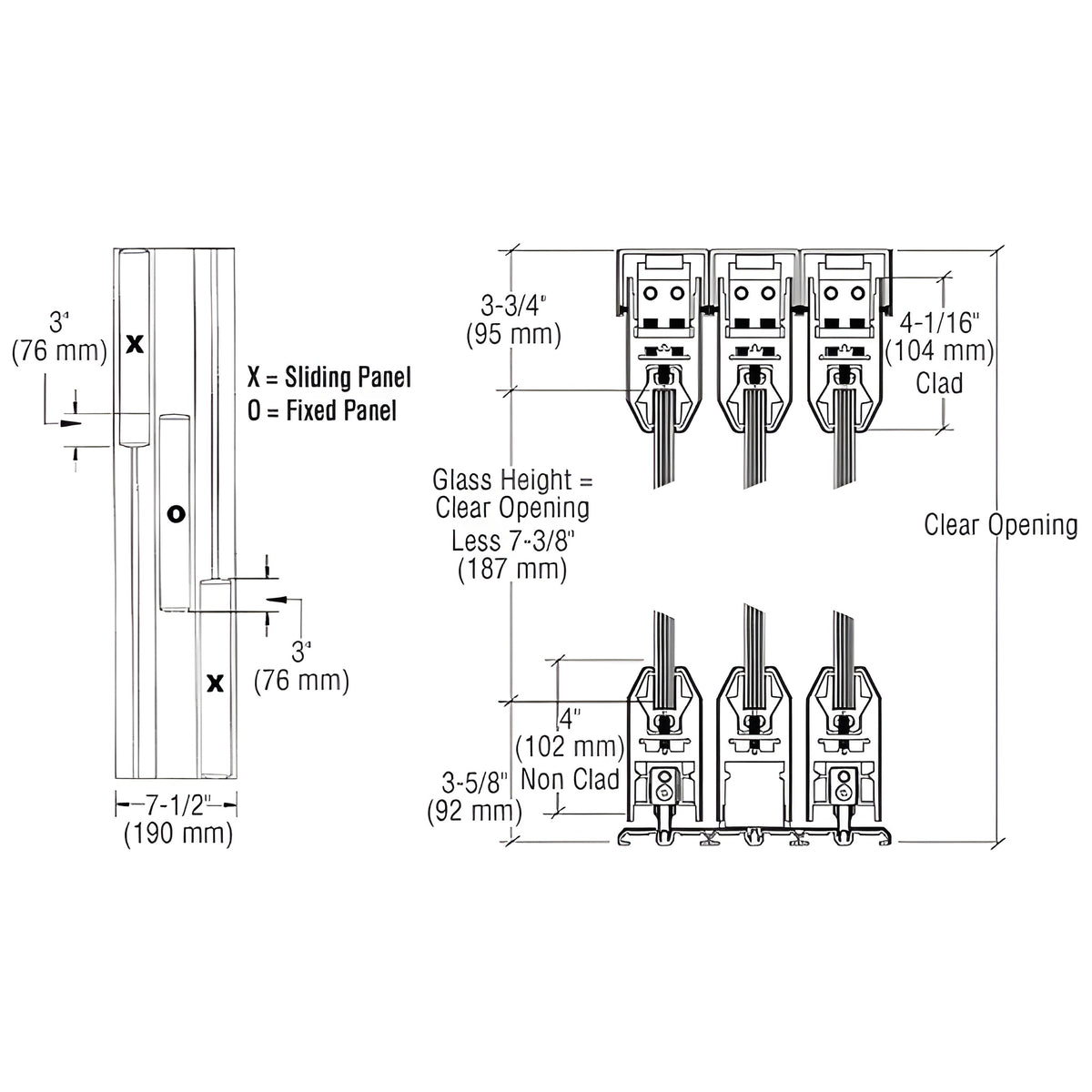

• CRL SDR3DBL bottom-rolling sliding door system, black, XOX layout, tapered 4in rails, max 48x108 in, Wedge-Lock glass.
1 1

CRL

CRL Black Powder-Coat XOX Sliding Door 4" Tapered Top/Bottom Rails

CRL Black Powder-Coat XOX Sliding Door 4" Tapered Top/Bottom Rails

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SDR3DBL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
XOX
Door Type
Sliding
Finish/Color
Black
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)

Overview

  • With 4" Tapered DR4T Series Door Rails
  • Available in Seven Architectural Finishes

The CRL SDR Bottom Rolling Sliding Door System (SKU: SDR3DBL) features 4" (102 mm) tapered rails top and bottom and CRL's proven Wedge-Lock® Glass Securing System for secure, low-profile glass retention. DR4T Series rails are used for all sliding door and fixed panels and are custom-fabricated to your project specifications. Order doors with or without bottom-rail locks to suit commercial or residential applications.
  • Maximum door width: 48" (1.22 m)
  • Maximum door height: 108" (2.74 m)
  • Maximum door weight: 234 lb (106 kg)

Designed as a bottom-rolling sliding door solution with tapered rails for smooth operation, this system is ideal for frameless glass entrances, interior glass partitions, and heavy-duty sliding assemblies where high-quality architectural finishes and reliable glass retention matter.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs and complete your order, request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor and video card settings.


Order the CRL SDR Bottom Rolling Sliding Door System (SDR3DBL) today for a durable, customizable bottom-rolling solution with tapered DR4T rails and Wedge-Lock® glass security.
