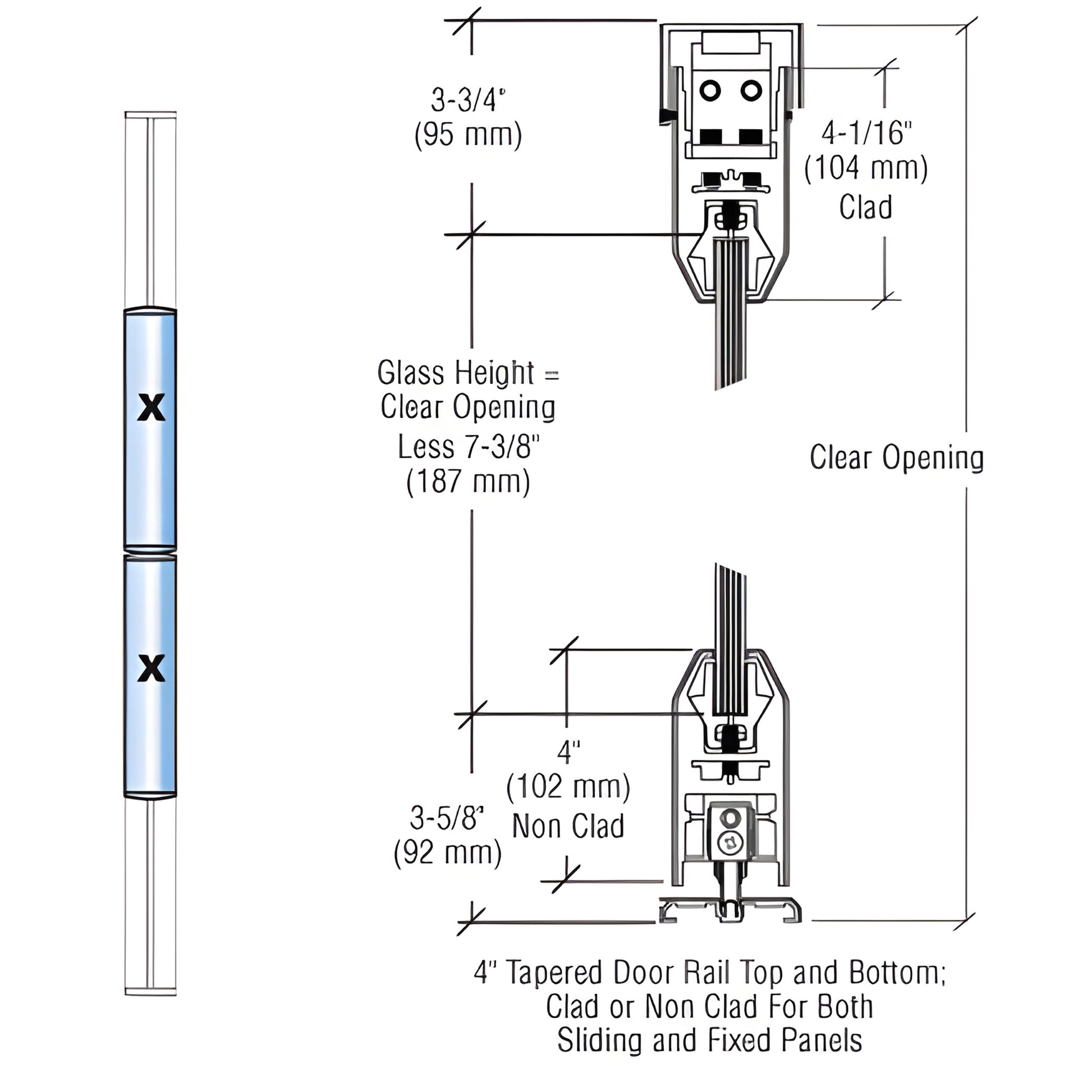

• SDR21BBL bottom-rolling bi part sliding glass door system, black, 4" tapered rails; max 108" H 48" W, 234 lb panel.
1 1

CRL

CRL Black Powder-Coated Bottom Rolling Bi-Part Sliding Door System

CRL Black Powder-Coated Bottom Rolling Bi-Part Sliding Door System

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SDR21BBL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
X X
Door Type
Bi-Part Sliding
Finish/Color
Black
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)

Overview

  • 4" (102 mm) Tapered DR4T Series Door Rails for top and bottom
  • Available in seven architectural finishes

CRL SDR Bottom Rolling Sliding Door System (SKU: SDR21BBL) uses 4" tapered DR4T rails and the Wedge-Lock® Glass Securing System for secure, frameless glass door installations. Rails are custom fabricated to your specifications and are suitable for both door and fixed panels. Doors are available with or without bottom-rail locks for added security and ADA-compliant threshold options when required.

Key specifications:
  • Maximum door width: 48" (1.22 m)
  • Maximum door height: 108" (2.74 m)
  • Maximum door weight: 234 lbs. (106 kg)

Available Finishes / Product Warning:
  • Clad finishes
  • Brushed Stainless
  • Polished Stainless
  • Polished Brass
  • Satin Brass

Most shipping weights are approximate and have not been verified. If an exact weight is required to calculate shipping costs before ordering, contact CRL Customer Service. Product images show the actual product or a close representation; colors may vary by monitor.

Order the CRL SDR Bottom Rolling Sliding Door System (SDR21BBL) for durable, customizable glass sliding doors—contact CRL to request a quote or specify custom rail fabrication.
