CRL XX Format 4" Black Powder-Coat Sliding Door with 4" Square Rails
CRL XX Format 4" Black Powder-Coat Sliding Door with 4" Square Rails
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 4SDR2BBL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Gloss Black
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Overview
- With 4" Square DR4S Series Door Rails
- Available in Seven Architectural Finishes
The CRL SDR Bottom Rolling Sliding Door System with 4" (102 mm) square top and bottom rails uses the Wedge-Lock® Glass Securing System for reliable, secure glass retention. DR4S Series rails are custom fabricated to your specifications for commercial and residential applications. Doors are available with or without bottom-rail locks. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum weight: 234 lb (106 kg). SKU: 4SDR2BBL.
Highlights: secure Wedge-Lock® system, 4" DR4S square rails, seven architectural finishes, custom fabrication for precise fit. Contact CRL to configure your bottom rolling sliding door system today.
Specifications

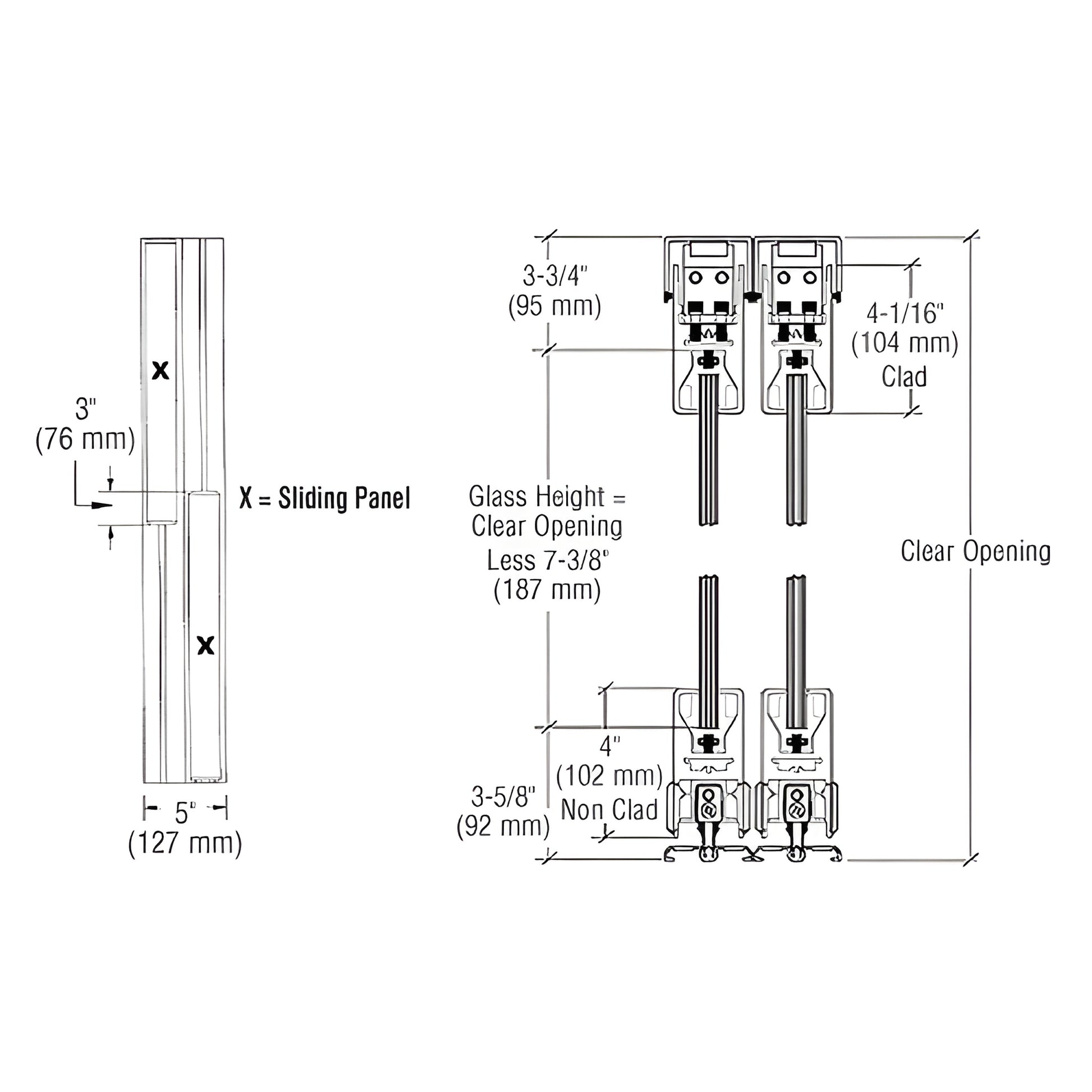

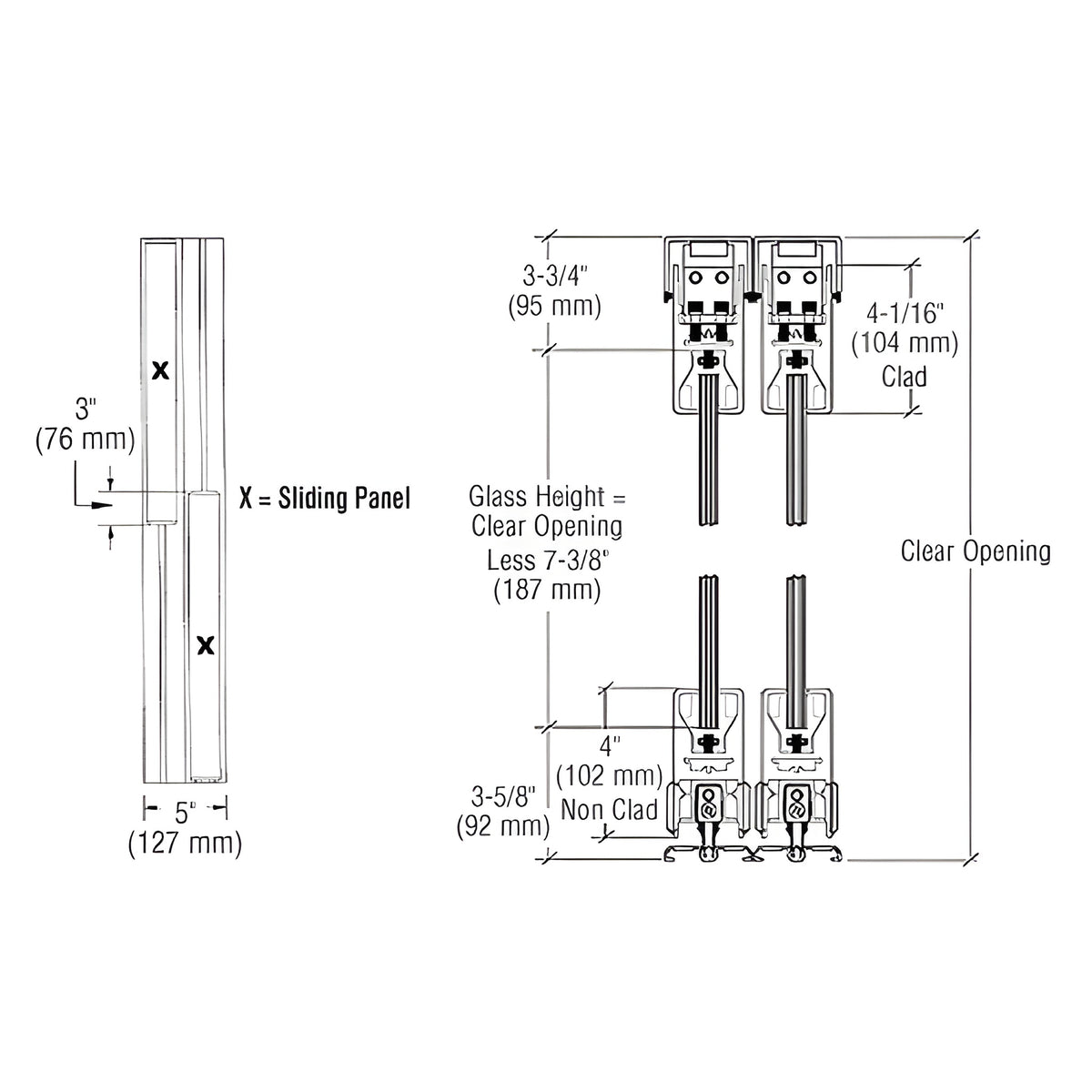

CAD Drawings - pdf
