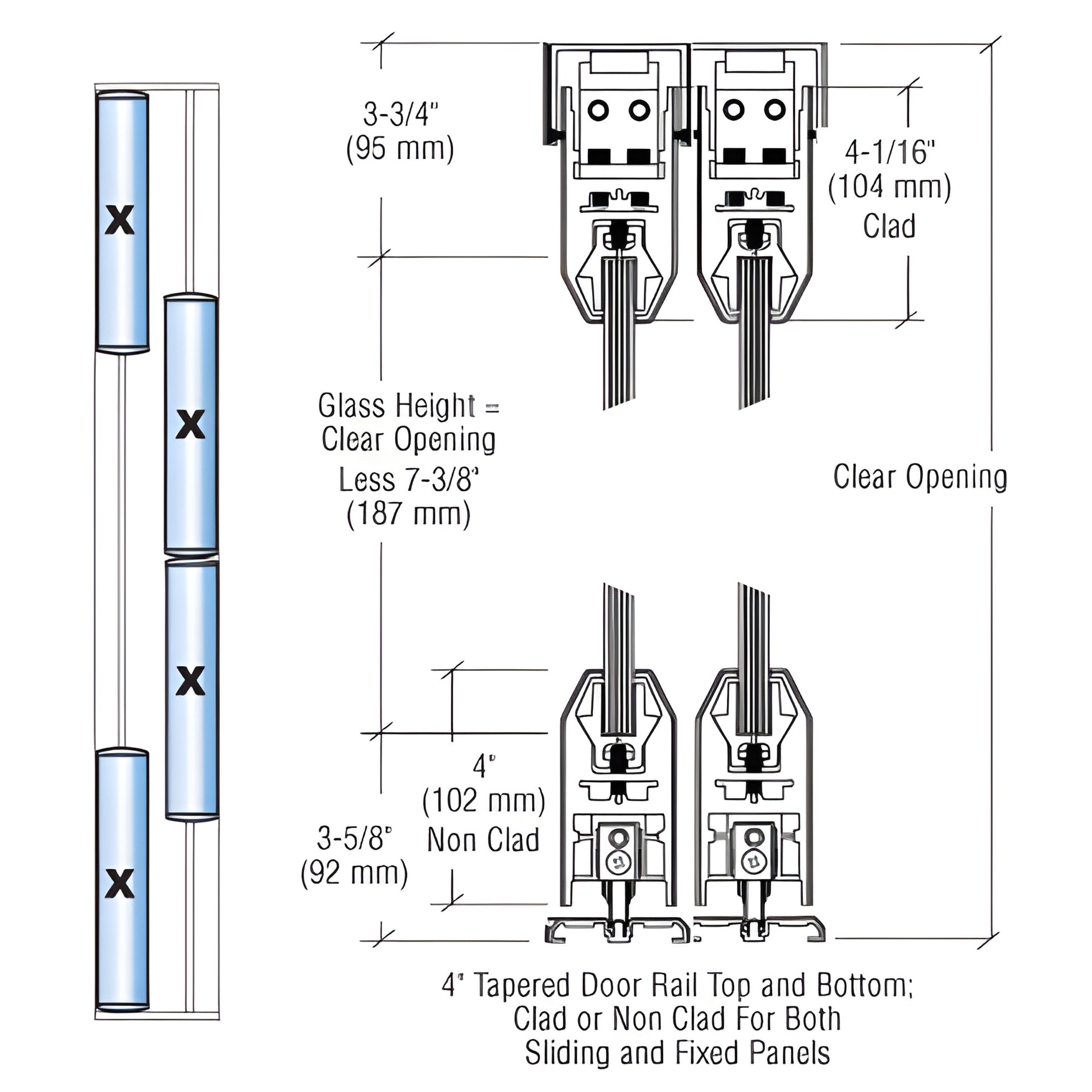

• CRL SDR42FBL bottom-rolling sliding door system, black 4" tapered rails for glass panels up to 48x108 in, 234 lb capacity
1 1

CRL

CRL Black Powder Coat XXXX Sliding Door Hardware - 4" Tapered Rail

CRL Black Powder Coat XXXX Sliding Door Hardware - 4" Tapered Rail

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SDR42FBL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
XXXX
Door Type
Sliding
Finish/Color
Black
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)

Overview

  • 4" (102 mm) Tapered DR4T Series Door Rails for smooth bottom-rolling operation
  • Available in seven architectural finishes for seamless design integration

The CRL SDR Bottom Rolling Sliding Door System (SKU: SDR42FBL) features 4" tapered top and bottom rails and the proven Wedge-Lock® Glass Securing System for secure, single- or multiple-panel bottom rolling sliding doors. DR4T Series rails are custom fabricated to your specifications for both door and fixed panels and can include an optional lock in the bottom rail. Door capacity: maximum width 48" (1.22 m), maximum height 108" (2.74 m), and maximum weight 234 lb (106 kg). This bottom rolling sliding door system is ideal for architectural and commercial applications requiring high-performance, customizable hardware.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.


Contact CRL Customer Service to request exact weights, custom fabrication details, or to place your order.
