CRL 10in Black Powder-Coat 1/2in Glass Sq Door Rail w/ Lock - Custom

• Custom length for 1/2" (12 mm) tempered monolithic glass
• Patented Wedge-Lock® glass securing system for secure, high-force glass retention
• Models available to fit 1/2" to 3/4" (12 to 19 mm) glass
• Several stock architectural finishes; custom finishes available
• Available with or without locks; matching sidelite rails available

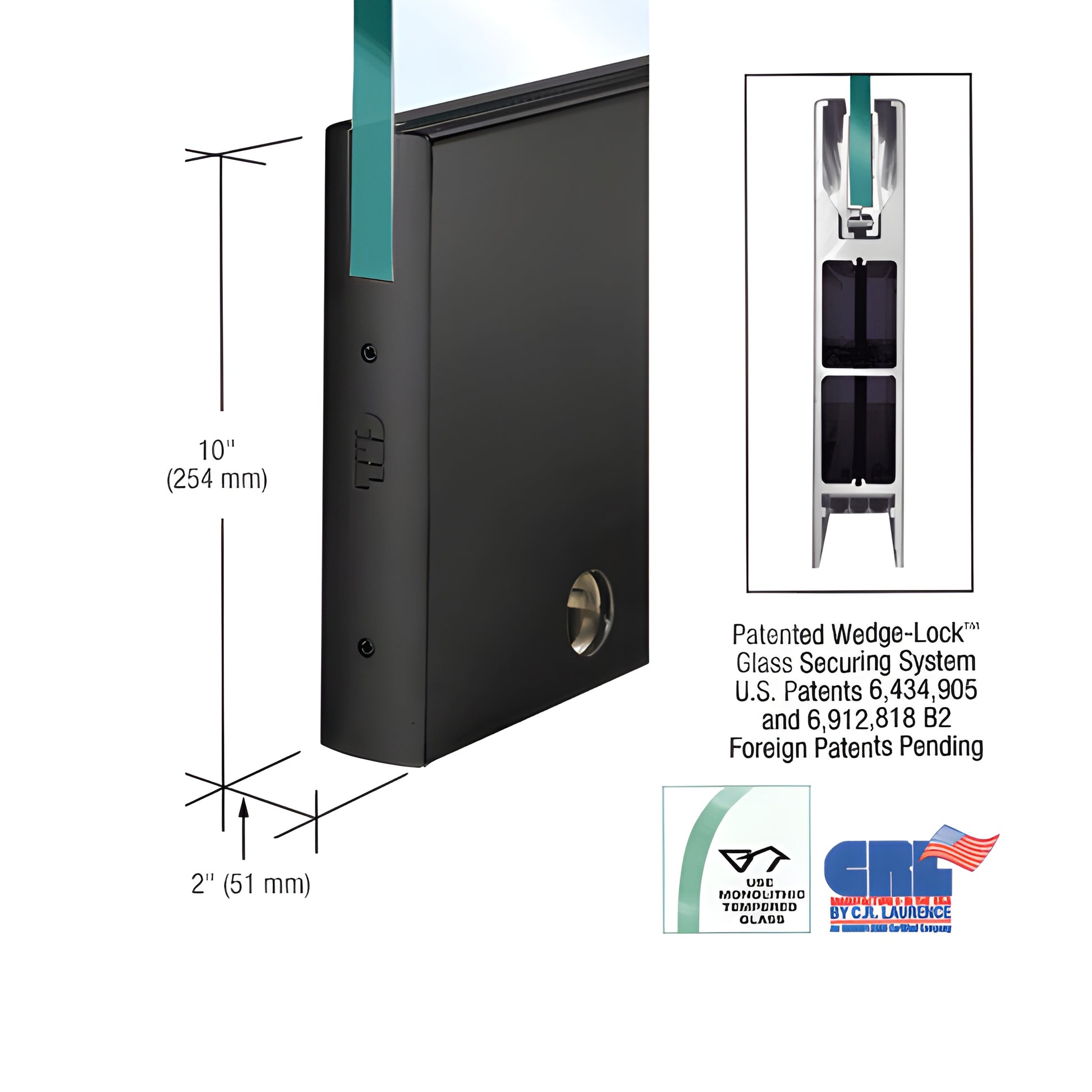

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, uses the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) to clamp glass with wedge-driven pressure. Two aluminum glass-retaining extrusions and a flat stainless steel bar are pulled down with socket head cap bolts into an angled groove. The wedge action plus a specially designed door-retaining gasket produces extreme clamp force (over 900 lbs. in the 9" / 228.6 mm corner rail), delivering industry-leading glass retention for door rails and frameless glass entrance systems.

NOTE: Actual product height: 10" (254 mm)

The Wedge-Lock® system not only secures glass reliably but also speeds installation. Experienced installers can prepare a door for installation in under ten minutes. Rails come completely fabricated and ready-to-install with end caps installed. After mounting the rail, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

The built-in adjustable door alignment system lets you shift the door 1/8" (3 mm) toward or away from the jamb without removing the door—standard on both top and bottom rails. To access adjustment bolts after installation, remove the end cap to reveal three socket head cap bolts: the center bolt secures the slide; the two outer bolts adjust the slide 1/8" (3 mm) in or out. The low-profile slide allows pivot placement other than the American Standard setback (2-3/4" / 69.8 mm), enabling fabrication for vertically out-of-square openings.

Why choose Wedge-Lock® Door Rails:

• Accepts 3/8" to 3/4" (10 to 19 mm) glass options
• Rigid, single-component housing resists shift and maintains alignment over time
• No need to remove internal components before installation
• Durable glass-securing pads designed for longevity in extreme environments
