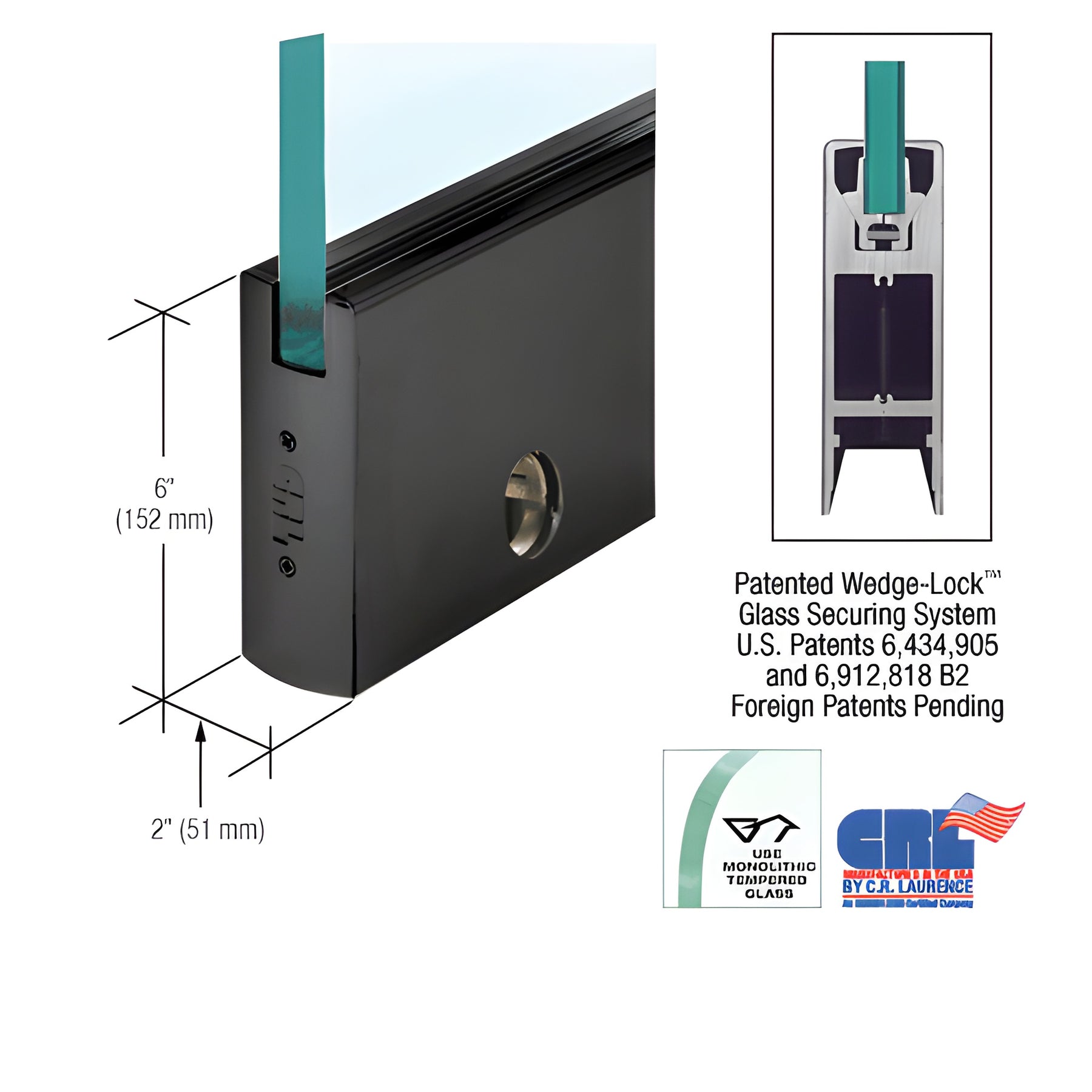

CRL Powder-Coated 6" Square Glass Door Rail with Lock for 1/2" Glass

• Custom length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S. & international patents)
• Models to fit from 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes — custom finishes available
• Available with and without locks
• Matching sidelite rails available

An innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR6SBL12CL) uses the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2, Canadian Patent 2,419,706, European Patent EP 1 404 939 B1) to secure glass in door rails with superior holding force. The system applies downward pressure via two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, angled wedges in the rail pull the extrusions together, compressing the door retaining gasket and generating tremendous clamping force — more than 900 lbs. in our 9" (228.6 mm) corner rail. Expect even greater force in full-length door rails.

The Wedge-Lock® system stands out for:

• Fast installation: experienced installers can prepare a door in under 10 minutes — ideal for commercial glass doors and storefront projects
• Ready-to-install rails: come fully fabricated with end caps installed
• Adjustable Door Alignment System: built-in adjustable slide allows 1/8" (3.2 mm) in/out adjustment on both top and bottom rails without removing the door
• Durable, single-component housing that resists shifting or loss of adjustment over time
• Internal components remain in place during installation — no disassembly required
• Glass securing pads engineered for longevity in extreme environments

Installation notes:

• After rail installation, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail
• To adjust the door after installation, remove the end cap to access three socket head cap bolts: center bolt locks the slide; outer bolts provide the 1/8" (3.2 mm) adjustment
• Low-profile slide and slotted pivot grooves allow fabrication for vertically out-of-square openings and alternative setbacks
• All Wedge-Lock® Door Rails include the built-in jamb alignment block; arms and pivots must be ordered separately

Other product features:

• Models accept 3/8" or 1/2" (10 or 12 mm) glass
• Locks available; models with locks are supplied with the lock mechanism installed (keyed cylinders or thumbturns sold separately)
• End caps included; specify door rail length (including end caps)
