CRL 1/2" Low-Profile Black Glass Door Rail w/ Lock - Custom Length

• Custom Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System (fastest installation)
• Low Profile Rails are Only 2-5/16" (59 mm) Tall
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available Without Locks
• Matching Sidelite Rails Available

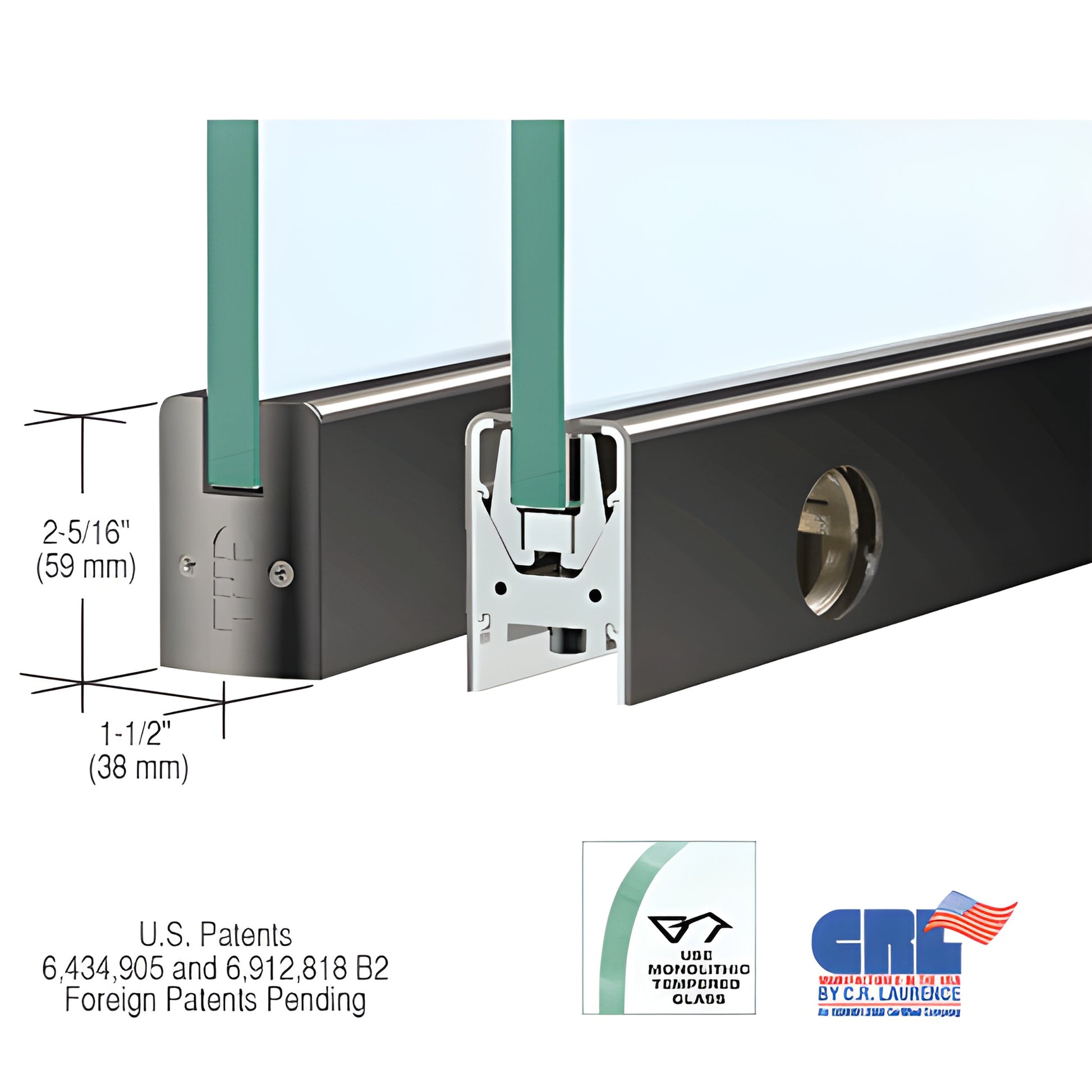

CRL Low Profile Door Rail (SKU: DR2SBL12CL) measures 2-5/16" (59 mm) high by 1-1/2" (38 mm) wide and features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). These low profile door rails are shipped complete with End Caps, installation instructions, and adjustment wrenches for quick, ready-to-install use.

Key differentiators:

• Wedge-Lock® System: secure, single-component housing that eliminates shifting and keeps internal components in place without removal during installation.
• Fast installation for commercial tempered glass doors — experienced installers can prepare a door in under ten minutes.
• Adjustable Door Alignment System: ±1/8" (3 mm) adjustment toward or away from the jamb on both top and bottom rails without removing the door.
• Durable glass securing pads designed for longevity in extreme environments.
• Available models accept 3/8" to 3/4" (10 to 19 mm) glass for broader application.

Installation and adjustment: Rails arrive fabricated and ready-to-install with End Caps installed. After installation attach the door arm or pivot (not included) to the adjustable alignment slide already assembled in the rail. To fine-tune alignment, remove the End Cap to access three socket head cap bolts: the center bolt secures the slide; the two outer bolts provide the 1/8" (3 mm) in/out adjustment. Low-profile slide design allows pivot placement other than the American Standard Setback (2-3/4" / 69.8 mm) for out-of-square openings.

Notes & ordering:

• All Wedge-Lock® Door Rails include the built-in Jamb Alignment Block; arms and pivots sold separately to meet job requirements.
• Models with locks are supplied with the lock mechanism installed; matching finish keyed cylinders or thumbturns must be ordered separately.
• End Caps are included. Specify total Door Rail length (including End Caps) when ordering custom lengths.
• Pivot inserts (1NT701, 1NT703, 1NT704) are sold separately for use with overhead or floor closers.
• Rail specifications, templates
