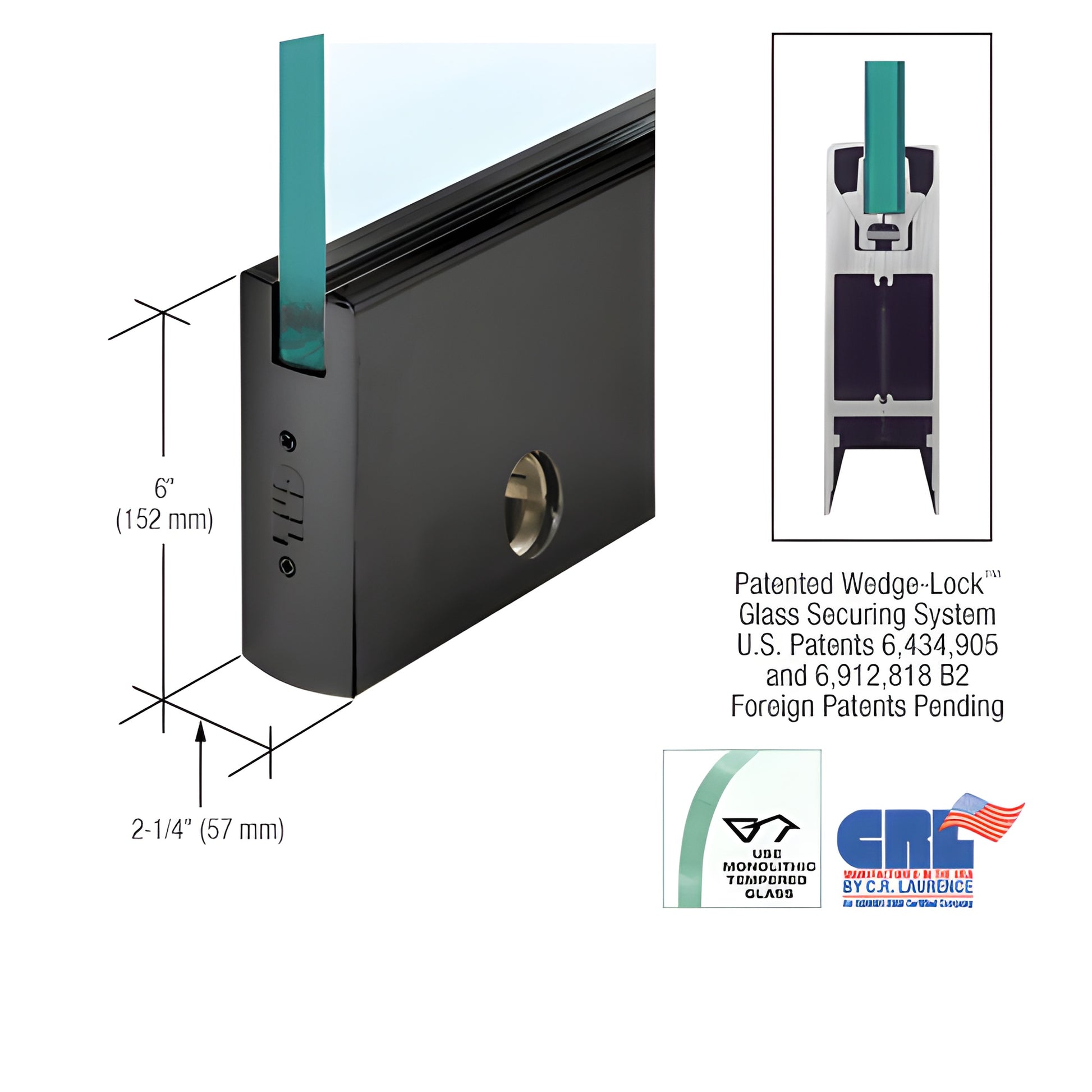

CRL 6" Black Powder-Coated Door Rail for 3/4" Glass w/ Lock - Custom

• Custom Length for 3/4" (19 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

An innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR6SBL34CL) uses the exclusive Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2, Canadian Patent 2,419,706, European Patent EP 1 404 939 B1) to secure monolithic tempered glass quickly and securely. The system applies controlled downward pressure using two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, angled extrusions engage an angled groove in the door rail, pulling the extrusions together and compressing the door retaining gasket to generate very high retention force (over 900 lbs. in the 9" corner rail).

The Wedge-Lock® design delivers:

• Fast on-site installation — experienced installers can prepare a door in under ten minutes
• Factory-fabricated rails shipped ready-to-install with End Caps installed
• Standard adjustable door alignment slide allowing ±1/8" (3.2 mm) adjustment without removing the door
• Low-profile adjustable slide for flexible pivot placement and out-of-square opening compensation
• Durable, single-component housing that resists shifting or loss of adjustment over time
• Internal components that do not need removal for installation; glass securing pads built for longevity in extreme environments

Top and bottom rails include the Adjustable Door Alignment System; after installation remove the End Cap to access three socket head cap bolts — center bolt secures the slide, outer bolts adjust the slide 1/8" (3.2 mm) in or out.

NOTE: All Wedge-Lock® Door Rails feature the built-in Jamb Alignment Block. Arms and pivots must be ordered separately to meet job requirements.

CRL Wedge-Lock® Door Rails are available in several standard architectural finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales.

ORDERING INFORMATION:

• All Door Rails are supplied with standard Kwik-Adjust™ Pivot Alignment System. Closer arms and floor or overhead pivots must be ordered separately.
• Models with locks are supplied with the lock mechanism installed. Matching finish keyed cylinders or thumbturns must be ordered separately.
• End Caps are included in the stock Door Rail
