CRL 6" Square Powder-Coated Lockable Rail 35-3/4" for 3/8" Glass Door

• 35-3/4" (908 mm) length for 3/8" (10 mm) glass
• Use monolithic tempered glass

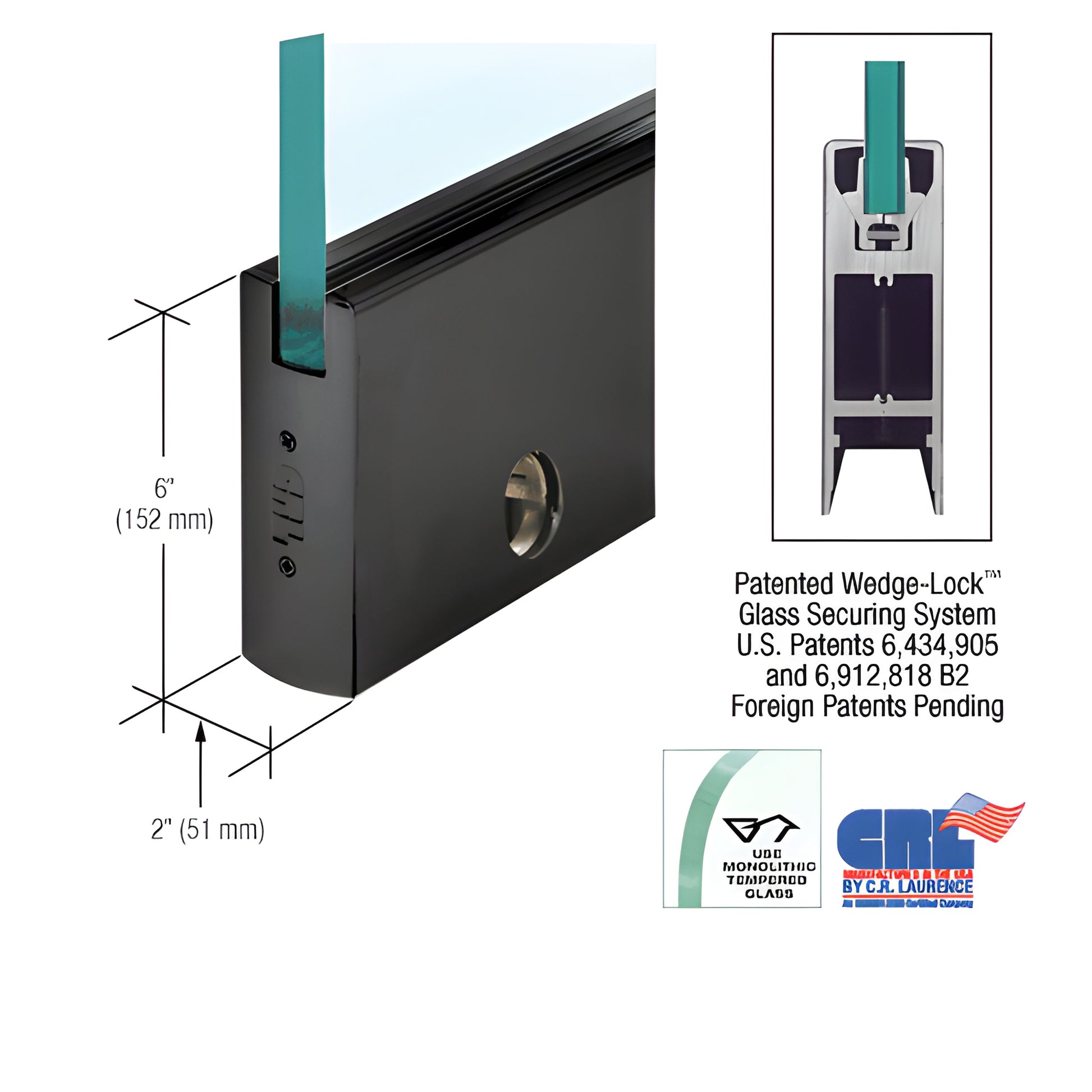

• Patented Wedge-Lock® glass securing system
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes — custom finishes available
• Available with and without locks
• Matching sidelite rails available

An innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR6SBL38SL) uses the exclusive Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) to lock glass securely in the rail. The patented system applies downward pressure through two glass-retaining aluminum extrusions and a flat stainless steel bar; as the bar is tightened with socket head cap bolts, the angled extrusions wedge together in the rail groove and—together with the door retaining gasket—create exceptional clamping force (more than 900 lbs. in the 9" corner rail). This design delivers high holding power, fast installation, and long-term durability for commercial glass doors.


NOTE: Actual product height: 6" (152 mm)

The Wedge-Lock® system provides the fastest installation time of any door rail offered to the industry—experienced installers can prepare a door for installation in under ten minutes. CRL Wedge-Lock® door rails come fully fabricated and ready-to-install with End Caps installed. After rail installation, simply attach the door arm or pivot (not included) to the preassembled adjustable door alignment slide. The adjustable slide lets you move the door 1/8" (3.2 mm) toward or away from the jamb without removing the door; this feature is standard on both top and bottom rails.

To fine-tune alignment after installation, remove the End Cap to access three socket head cap bolts: the center bolt secures the adjustable slide; the two outer bolts adjust the slide 1/8" (3.2 mm) in or out. The low-profile slide allows pivots with slotted grooves to be positioned off the American Standard Setback (2-3/4" / 69.8 mm), enabling fabrication for vertically out-of-square openings.

Why choose CRL Wedge-Lock® Door Rail System:

• Models accept 3/8" or 1/2" (10 or 12 mm) glass
• Rigid single-component housing resists shifting and maintains adjustment over time
• Internal components remain in place—no removal required before installation
• Durable glass securing pads designed for longevity in extreme environments
