CRL Black Powder-Coated 3/8in Glass 6in Sq Door Rail 35-3/4in No Lock

• 35-3/4" (908 mm) length for 3/8" (10 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Models to fit from 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes — custom finishes available
• Available with and without locks
• Matching sidelite rails available

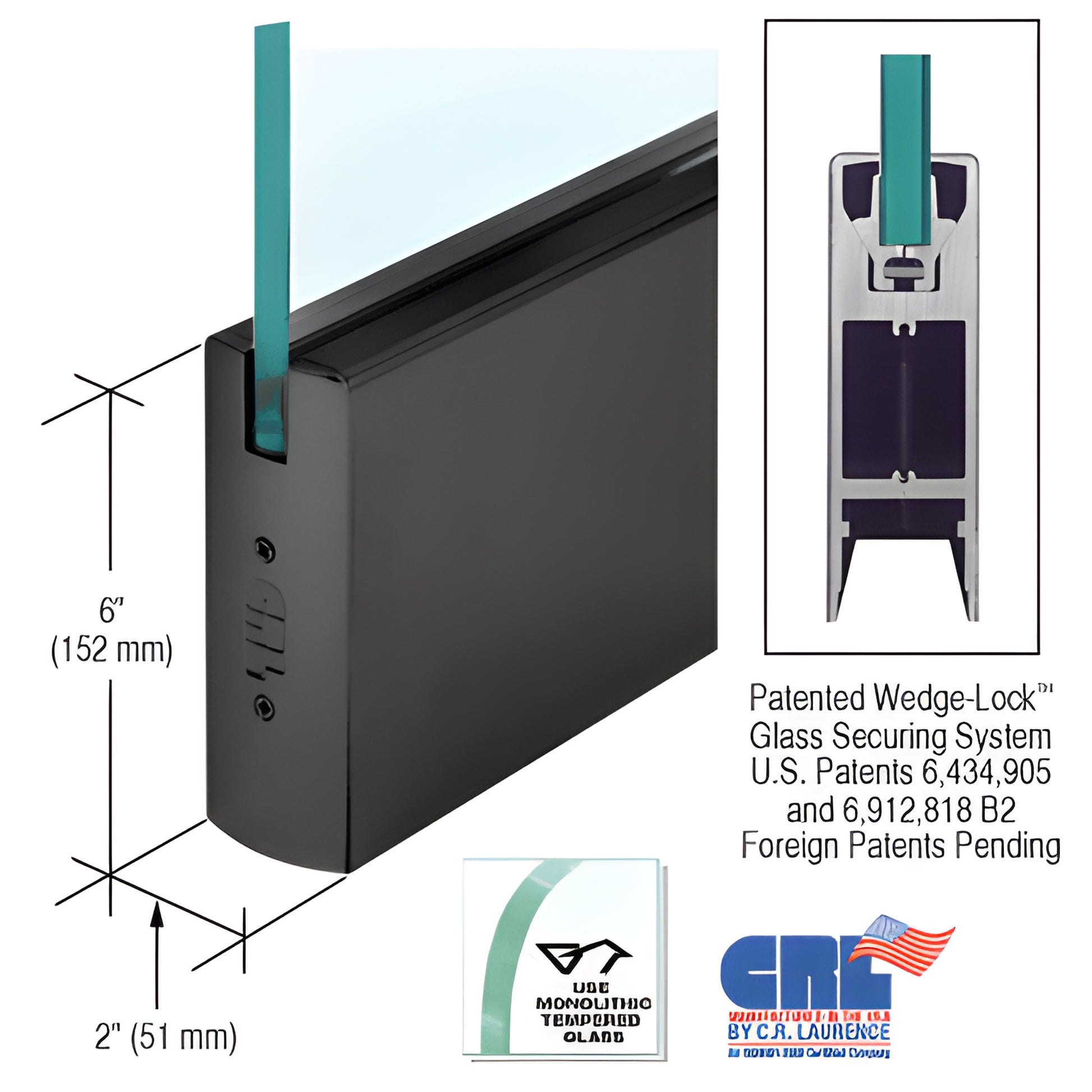

An innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR6SBL38S) uses the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) to secure tempered glass in the door rail. The system clamps glass by pulling a flat stainless steel bar down against two glass-retaining aluminum extrusions seated in an angled groove — creating tremendous holding force (more than 900 lbs. in the 9" corner rail). This patented wedge action and the specially designed door retaining gasket deliver superior toughness and long-term reliability for commercial glass doors.

NOTE: Actual product height: 6" (152 mm)

The Wedge-Lock® design provides fast, dependable installation for tempered glass door applications. Rails arrive completely fabricated and ready-to-install with end caps installed. After rail installation, simply attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail. The adjustable door alignment system allows ±1/8" (3.2 mm) of field adjustment toward or away from the jamb on both top and bottom rails — no door removal required. Low-profile slides and slotted pivot grooves permit non-standard setbacks and installation in vertically out-of-square openings.

Adjustment is simple: remove the end cap to access three socket head cap bolts — center bolt locks the slide; outer bolts adjust the slide in or out by 1/8" (3.2 mm). Internal components stay in place during installation, and the single-piece housing resists shifting over time. Glass securing pads are engineered for longevity in extreme environments.

Other key benefits and specifications:

• Accepts 3/8" or 1/2" (10 or 12 mm) glass in select models
• Rigid single-component housing — maintains adjustment over time
• Internal components do not require disassembly before installation
• Durable glass securing pads for extreme climates
• Built-in jamb alignment block (arms and pivots ordered separately)

CRL Wedge-Lock® Door Rails are offered in several standard finishes and can be quoted in custom
