CRL 3/8" Glass Door Rail w/ Lock, Low-Profile Tapered, Black, Custom

• Custom length for 3/8" (10 mm) glass
• Designed for monolithic tempered glass doors
• Patented Wedge-Lock® glass securing system (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1)
• Low profile rails: 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available with or without locks
• Matching sidelite rails available

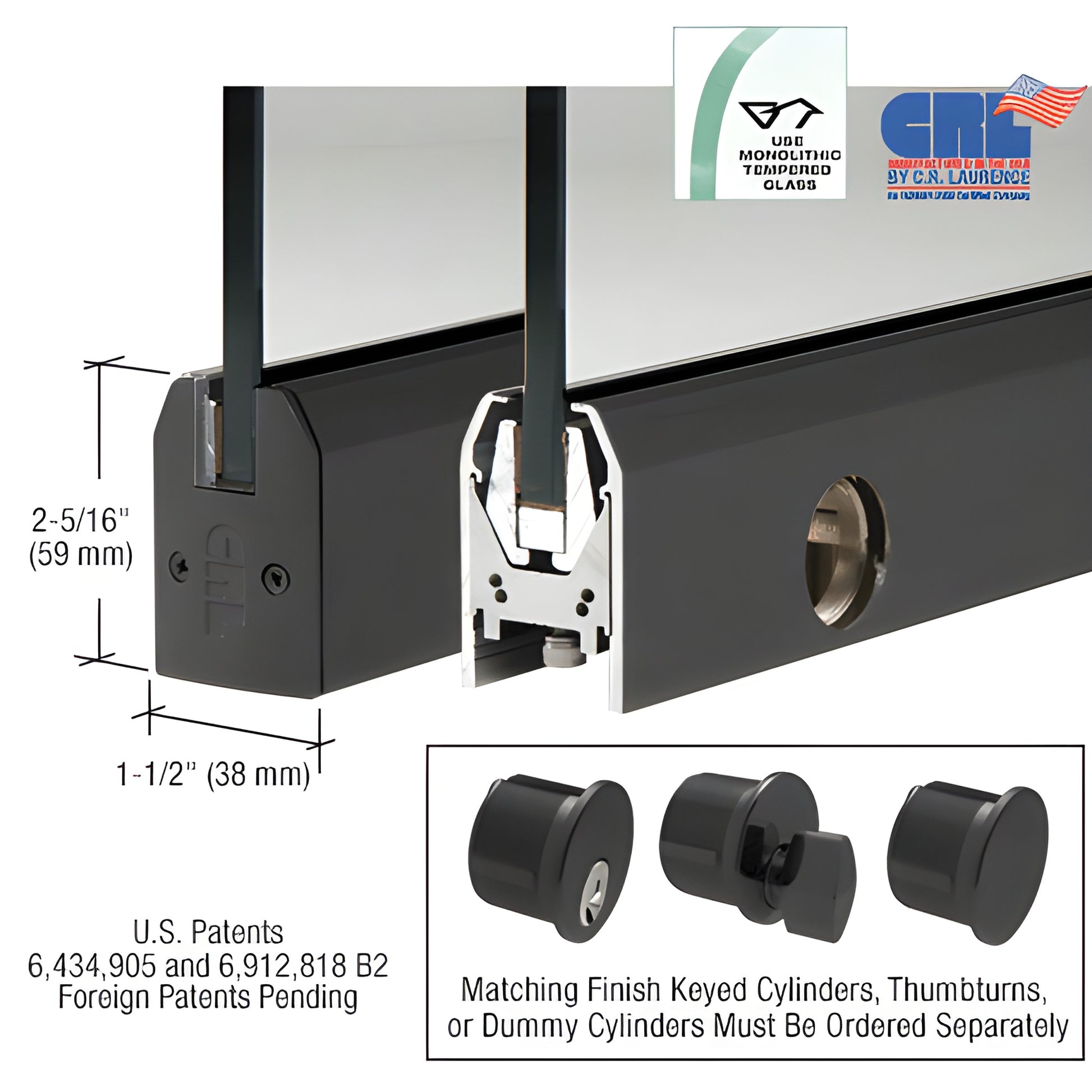

CRL Low Profile Door Rail (SKU: DR2TBL38CL) measures only 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and incorporates the patented Wedge-Lock® system for secure, reliable clamping of 3/8" (10 mm) tempered glass. Rails come complete with end caps, installation instructions, and adjustment wrenches—ready to install for faster glass door assembly.

Key differentiators:

• Fastest installation among door rail systems — experienced installers can prepare a door in under ten minutes
• Integrated Wedge-Lock® pads provide durable glass retention for interior and exterior tempered glass doors
• Rigid single-component housing resists shifting or falling out of adjustment over time
• Internal components remain in place during installation—no need to remove parts
• Adjustable Door Alignment System standard top and bottom: ±1/8" (3 mm) adjustment without removing the door
• Low-profile adjustable slide allows pivot placement off the American Standard setback for out-of-square openings

Installation & hardware notes:

• Rails ship with end caps installed; specify door rail length (including end caps) when ordering custom lengths
• Comes prepped to accept Low Profile Door Rail pivot inserts (pivot inserts and closer arms/floor or overhead pivots sold separately)
• Models with locks include the latch mechanism; keyed cylinders or thumbturns ordered separately
• Pivot inserts 1NT701, 1NT703, and 1NT704 sold separately for overhead or floor closers

Compatibility: Available models accept 3/8" to 3/4" (10 to 19 mm) glass—confirm model selection when ordering. All rails include the built-in jamb alignment block; arms and pivots must be ordered to meet job requirements.

Finishes & support: Standard architectural finishes available; custom finishes and widths quoted on request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales — contact us.

<
