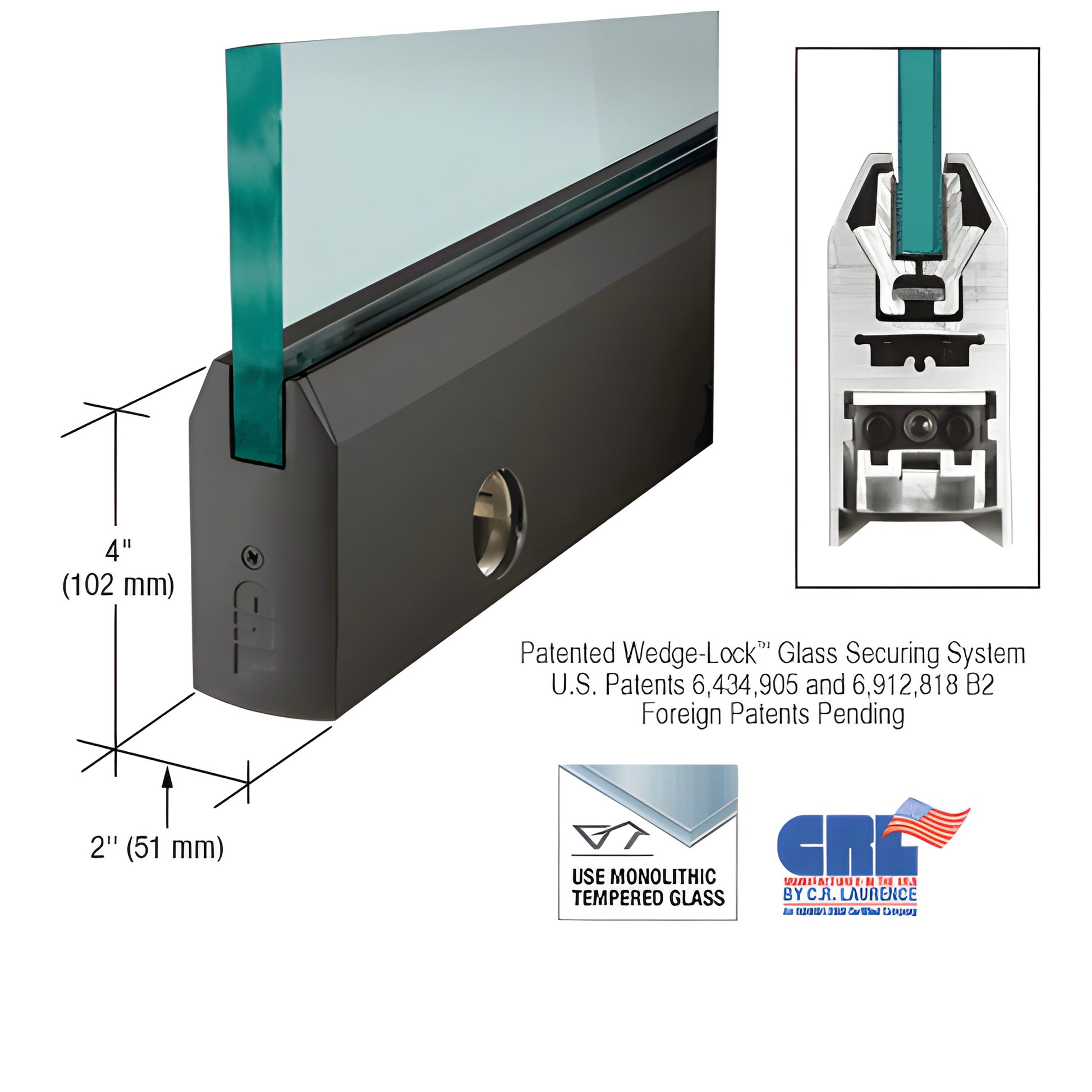

CRL Black Powder-Coated 4" Tapered Door Rail for 1/2" Glass w/ Lock

• Custom length for 1/2" (12 mm) monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S., Canadian, European patents)
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with or without locks (matching keyed cylinders or thumbturns sold separately)
• Matching sidelite rails available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR4TBL12CL), uses the exclusive Wedge-Lock® Securing System to clamp tempered glass from the bottom using two aluminum glass-retaining extrusions and a flat stainless steel bar. As the bar is tensioned with socket head cap bolts, angled extrusions wedge together in the rail groove to create exceptional holding force (over 900 lbs. in the 9" corner rail), delivering secure, durable glass attachment for commercial glass doors.

The Wedge-Lock® system is engineered for fast installation—experienced installers can prepare a door in under ten minutes—and ships fully fabricated with End Caps installed. After rail installation, simply attach the door arm or pivot (not included) to the pre-assembled adjustable door alignment slide.

The standard Adjustable Door Alignment System lets you adjust the door 1/8" (3.2 mm) toward or away from the jamb without removing the door. To access adjustments after installation, remove the End Cap to reveal three socket head cap bolts: center bolt secures the slide; the two outer bolts adjust ±1/8" (3.2 mm). The low-profile slide supports pivots with slotted grooves and allows fabrication for vertically out-of-square openings.

Other key benefits and long-tail features:

• Accepts 3/8" to 3/4" (10–19 mm) glass—ideal for commercial tempered glass door projects
• Rigid single-component housing resists shifting and long-term drift
• Internal components remain installed during fitting—no disassembly required for installation
• Durable glass securing pads designed for longevity in extreme environments
• Built-in jamb alignment block standard (arms and pivots ordered separately)

Ordering & specifications:
• Rails come with Kwik-Adjust™ Pivot Alignment System; closer arms and floor/overhead pivots sold separately.
• Models with locks include the lock mechanism; keyed cylinders or thumbturns are separate.
• End Caps included on stock rail lengths. Specify rail length (including End Caps) for custom-length orders.

Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

Product Warning:
Comes standard with jamb alignment block; arms and pivots must be ordered separately to meet job requirements.
