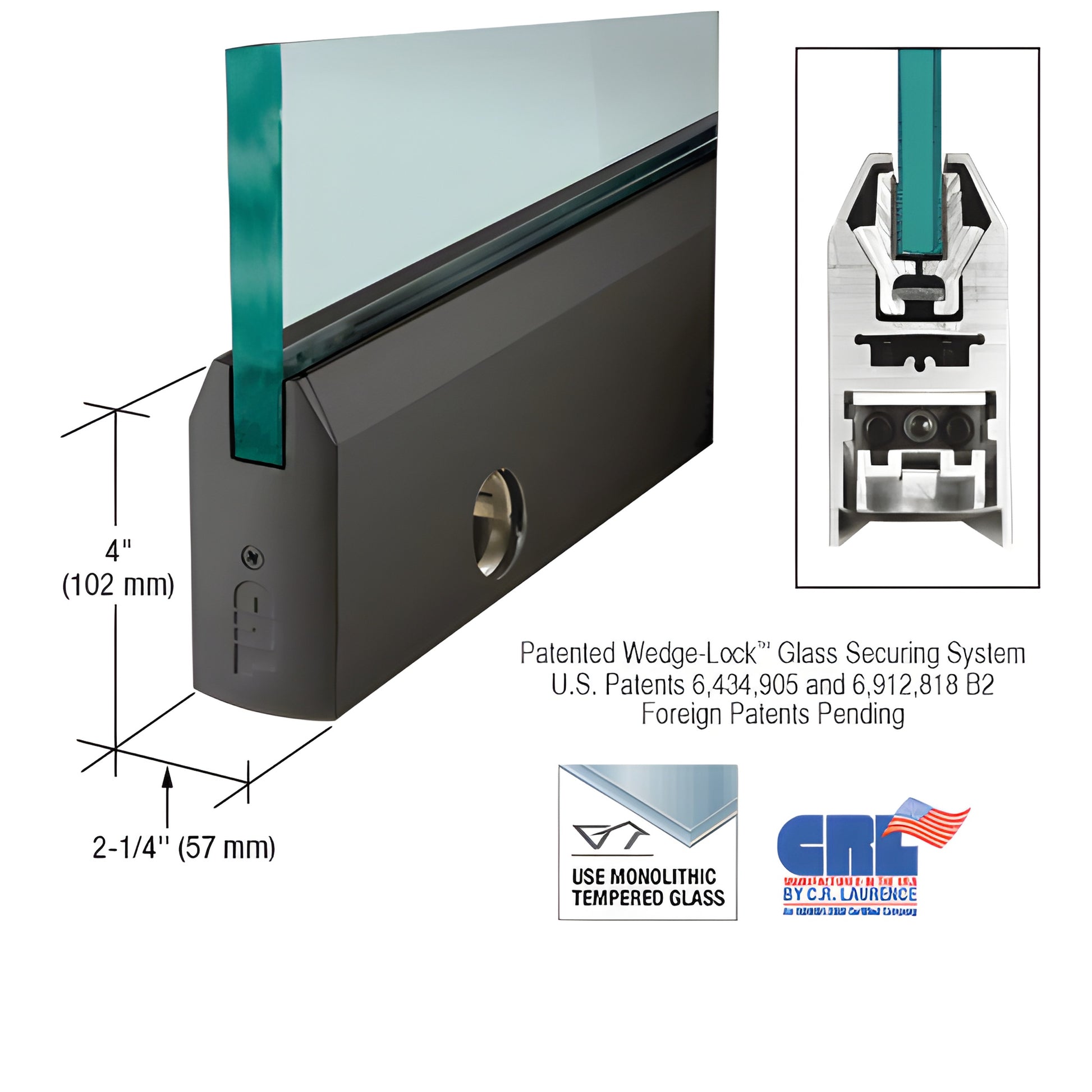

CRL Black Powder Coat 4" Tapered Glass Rail 5/8" Lockable - Custom

• Custom Length for 5/8" Glass (16 mm)
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

SKU: DR4TBL58CL

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Designed for commercial glass doors, this door rail system secures monolithic tempered glass by applying downward pressure with two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tensioned with socket head cap bolts, angled extrusions engage an angled groove in the rail to produce high clamping force (more than 900 lbs. in the 9" corner rail), delivering exceptional glass retention and long-term durability.

Key differentiators and long-tail features:

• Fastest installation time among door rail systems — experienced installers can prepare a door in under ten minutes
• Completely fabricated and ready-to-install with End Caps installed — minimal on-site prep
• Adjustable Door Alignment System (standard on top and bottom rails) allows 1/8" (3.2 mm) in/out adjustment without removing the door
• Low-profile adjustable slide supports pivots with slotted grooves and accommodates vertically out-of-square openings
• Rigid single-component housing resists shifting and preserves alignment over time
• Internal components remain installed during shipping and fitting — no disassembly required
• Glass securing pads engineered for longevity in extreme environments

Installation & adjustment: After rail installation, attach the door arm or pivot (not included) to the preassembled adjustable door alignment slide. To fine-tune the door, remove the End Cap to access three socket head cap bolts — the center bolt secures the slide; the two outer bolts provide the 1/8" adjustment.

Ordering notes: All Wedge-Lock® Door Rails include the built-in Jamb Alignment Block; arms, pivots, closer arms, and keyed cylinders/thumbturns must be ordered separately. Models with locks are supplied with the lock mechanism installed; matching keyed cylinders or thumbturns sold separately. Custom finishes and widths available upon request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via
