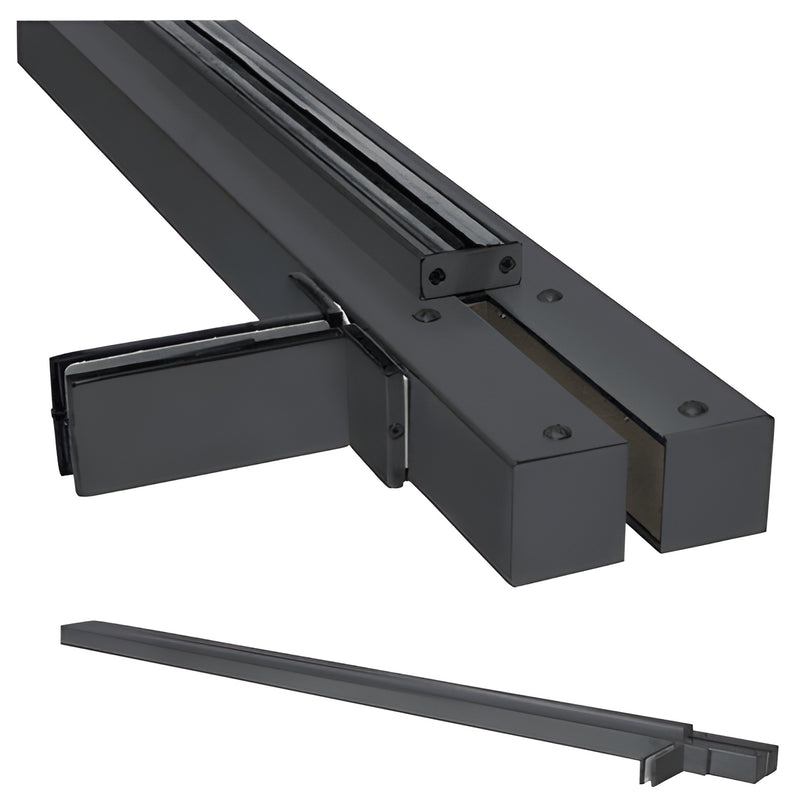

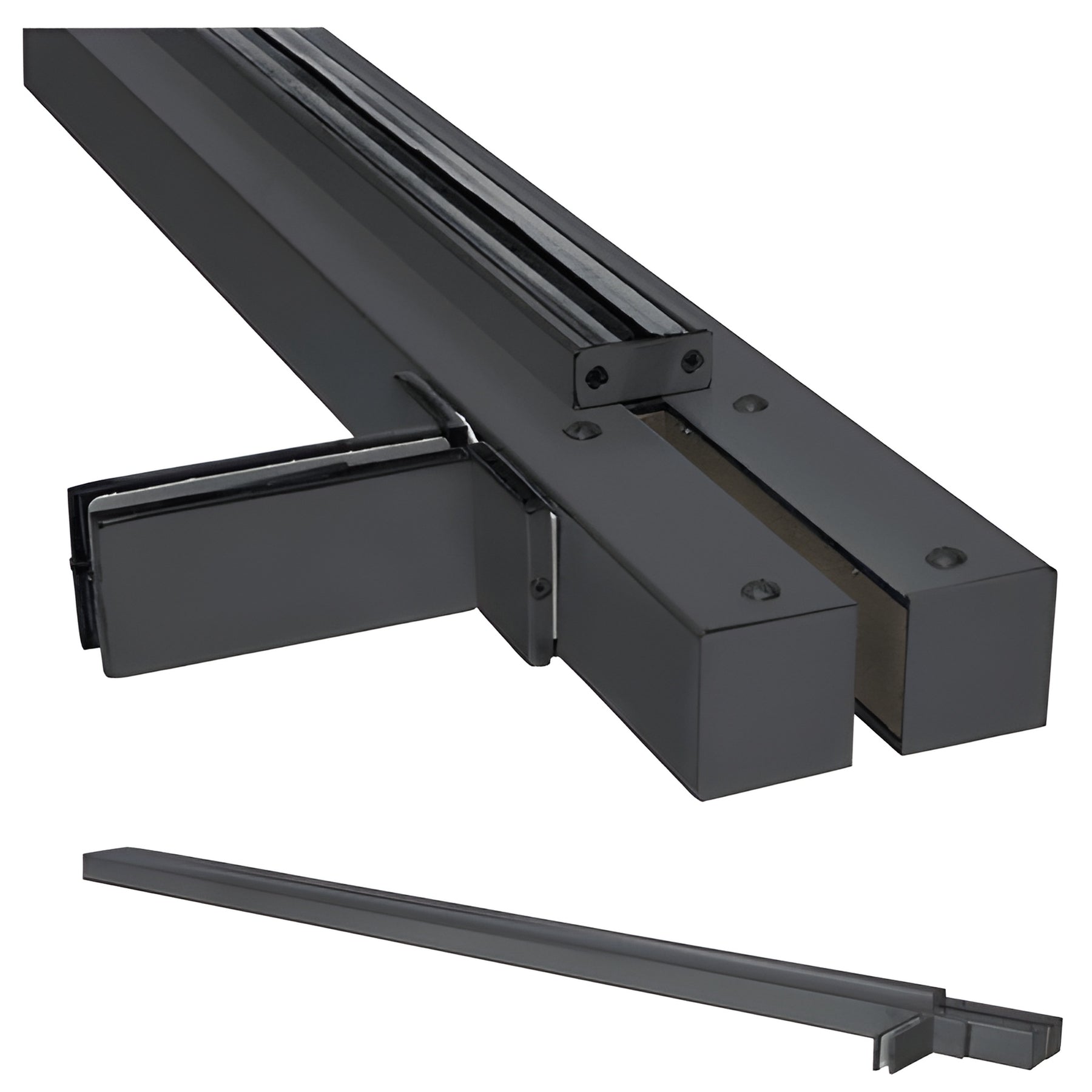

CRL Black Powder-Coated Custom Wall-to-Glass Header w/ Fin Brackets

• Adds rigidity and helps stabilize all-glass openings
• Special order only — SKU: FH4FWGBLCS
• For glass-to-glass or wall-to-glass installations, with or without overhead concealed door closers
• Several stock architectural finishes available; custom finishes available
• Each floating header is customized to your project requirements

CRL Floating Headers With Fin Brackets were developed to add rigidity to all-glass entrances. These floating headers and fin supports reduce deflection from wind, stack load pressure, and impacts, improving performance for single- or double-door glass entrances. Suitable long-tail keywords: floating header for glass doors, glass door header for wind load, custom glass-to-glass header. Features and configurations:

• Custom lengths and configurations: glass-to-wall, wall-to-glass, and glass-to-glass
• Can be prepped for surface-mounted magnetic locks, magnetic shear locks, surface top pivots, walking beam pivots, or overhead concealed door closers
• Header dimensions: 4" x 1-3/4" (102 x 44.5 mm)

Finishes: several stock architectural finishes; custom finishes available to match storefront or interior glass hardware.

For project-specific configurations, structural questions, or to place a special-order SKU FH4FWGBLCS, contact the CRL Technical Sales Department.

Product Warning:

STRUCTURAL DISCLAIMER - Customers must consult a structural engineer to verify suitability for the intended use and site conditions. Installers must be qualified and ensure compliance with local, state, and federal regulations, safety factors, and correct fixing materials and procedures.

If the transom weight above the header exceeds 100 pounds (45.4 kg), the transom must be supported from the ceiling to prevent bowing. Options include Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Contact the CRL Technical Sales Department for assistance.

Ready to specify a custom floating header for glass doors? Contact CRL Technical Sales to get started.
