CRL
CRL Black Powder Coat X/X Sliding Entrance - 4in Top, 6in Bottom Rail
CRL Black Powder Coat X/X Sliding Entrance - 4in Top, 6in Bottom Rail
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 6SDR1ABL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
X- or -X
Finish/Color
Gloss Black
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
1
Overview
- With 4" Square DR4S Series Door Rails and 6" Square DR6S Series Bottom Rails
- Available in Seven Architectural Finishes
The CRL SDR Bottom Rolling Sliding Door System (SKU: 6SDR1ABL) features 4" (102 mm) square top rails and 6" (152 mm) square bottom rails and uses the proven Wedge-Lock® Glass Securing System from the DR4S and DR6S Series. This bottom rolling sliding door system is custom fabricated to your specifications and may be ordered with or without locks in the bottom rail—ideal for commercial and architectural openings that require durable, smooth bottom-rolling operation and secure glass retention. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum door weight: 234 lb (106 kg).
Differentiators: Wedge-Lock® glass retention for enhanced safety, heavy-duty 6" bottom rail for stable bottom-rolling performance, available in seven architectural finishes for design flexibility.
Order your custom bottom rolling sliding door system (SKU 6SDR1ABL) or contact CRL for a quote and fabrication details.
Specifications

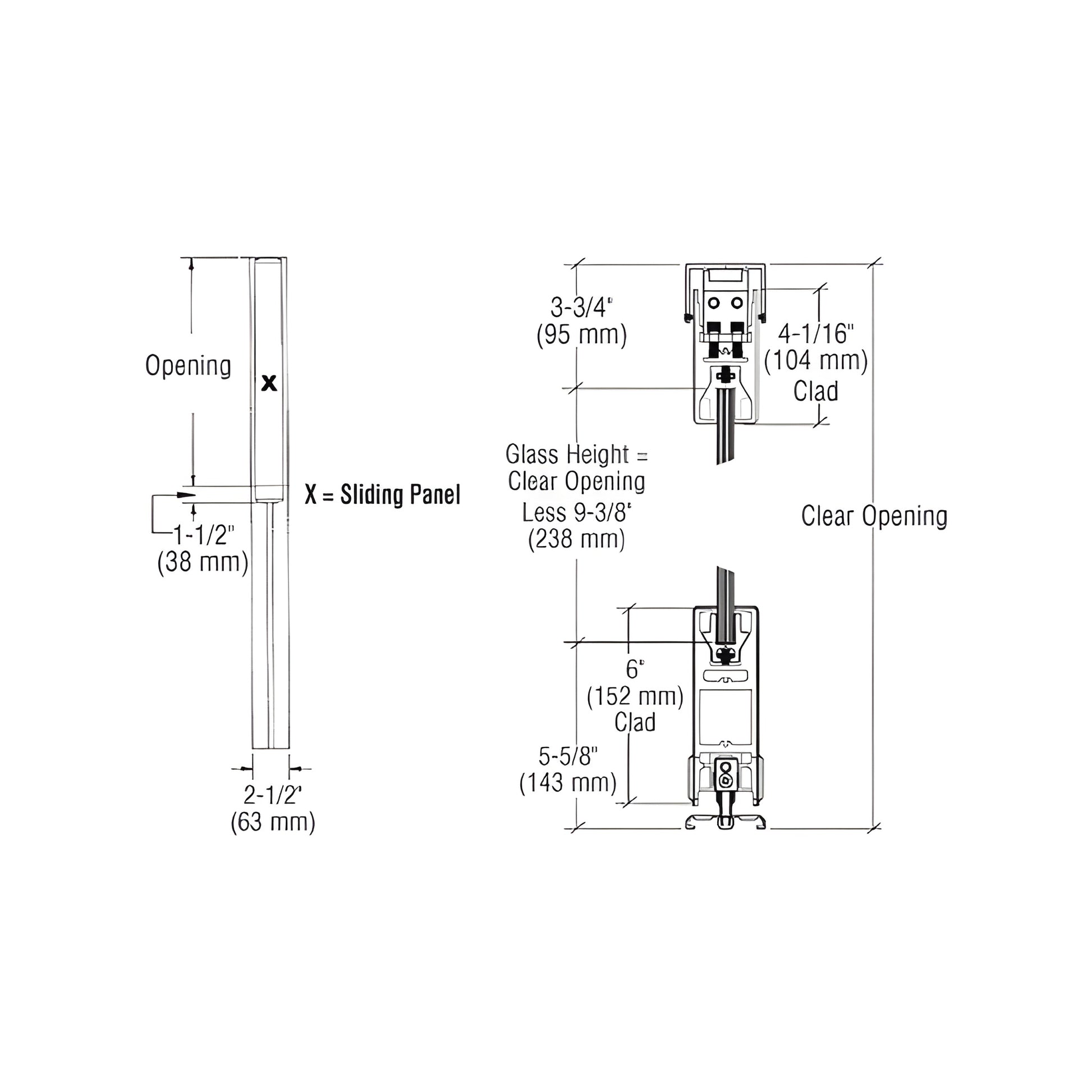

CAD Drawings - pdf
