CRL XOX Sliding Door System Black Powder Coat 4in Top/6in Bottom
CRL XOX Sliding Door System Black Powder Coat 4in Top/6in Bottom
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 6SDR3DBL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
XOX
Finish/Color
Gloss Black
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
3
Overview
- With 4" Square DR4S Series Door Rails and 6" Square DR6S Series Bottom Rails
- Available in Seven Architectural Finishes
The CRL SDR Bottom Rolling Sliding Door System (SKU: 6SDR3DBL) is a bottom rolling sliding door system featuring 4" (102 mm) square top rails (DR4S) and 6" (152 mm) square bottom rails (DR6S). It uses CRL’s proven Wedge-Lock® Glass Securing System for secure glass retention and smooth operation. Rails can be ordered with or without locks in the bottom rail and are custom fabricated to your specifications. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum door weight: 234 lb (106 kg). Ideal for commercial and residential applications that require durable, low-profile bottom rolling sliding glass doors.
Shop the CRL SDR Bottom Rolling Sliding Door System (SKU: 6SDR3DBL) today — contact CRL for a custom quote.
Specifications

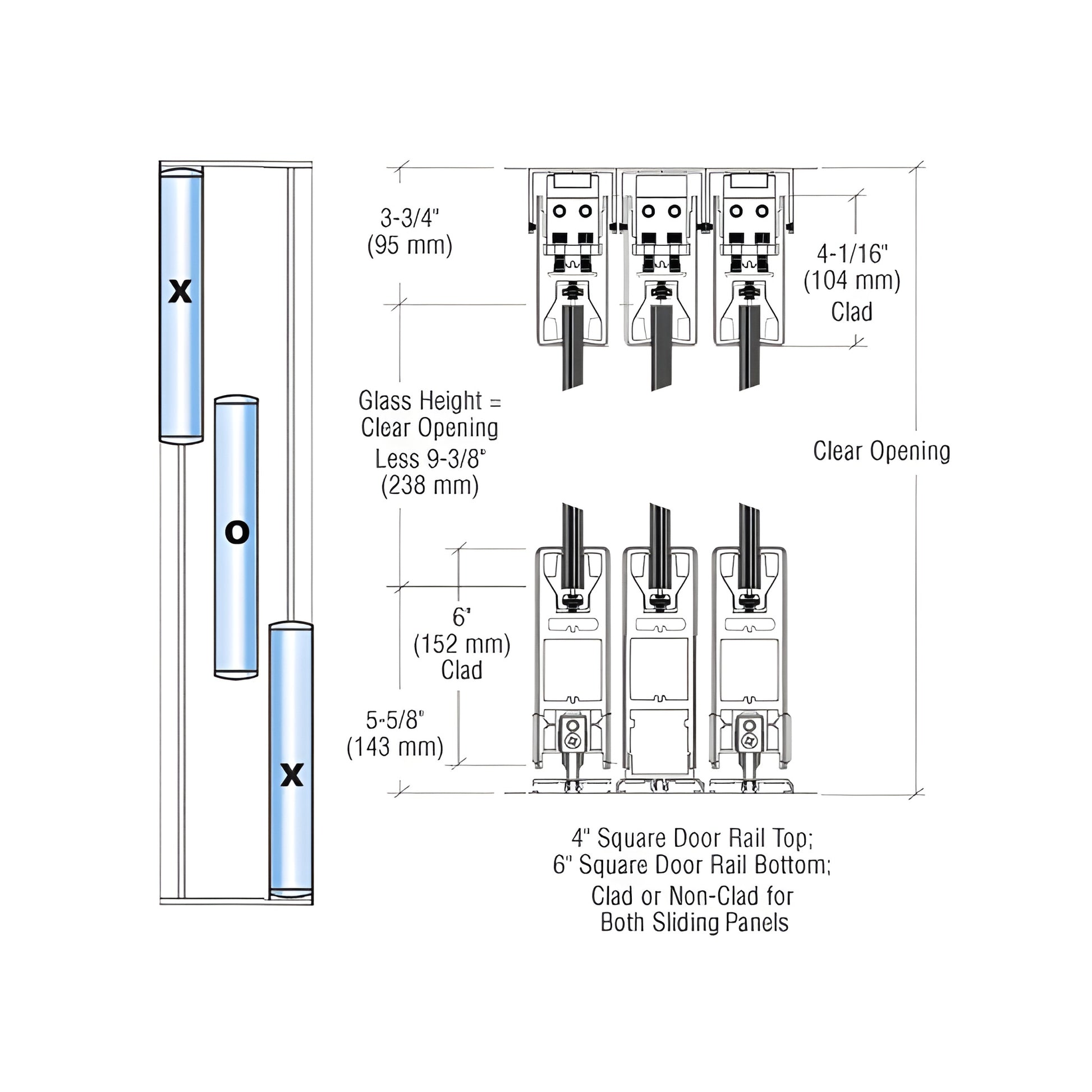

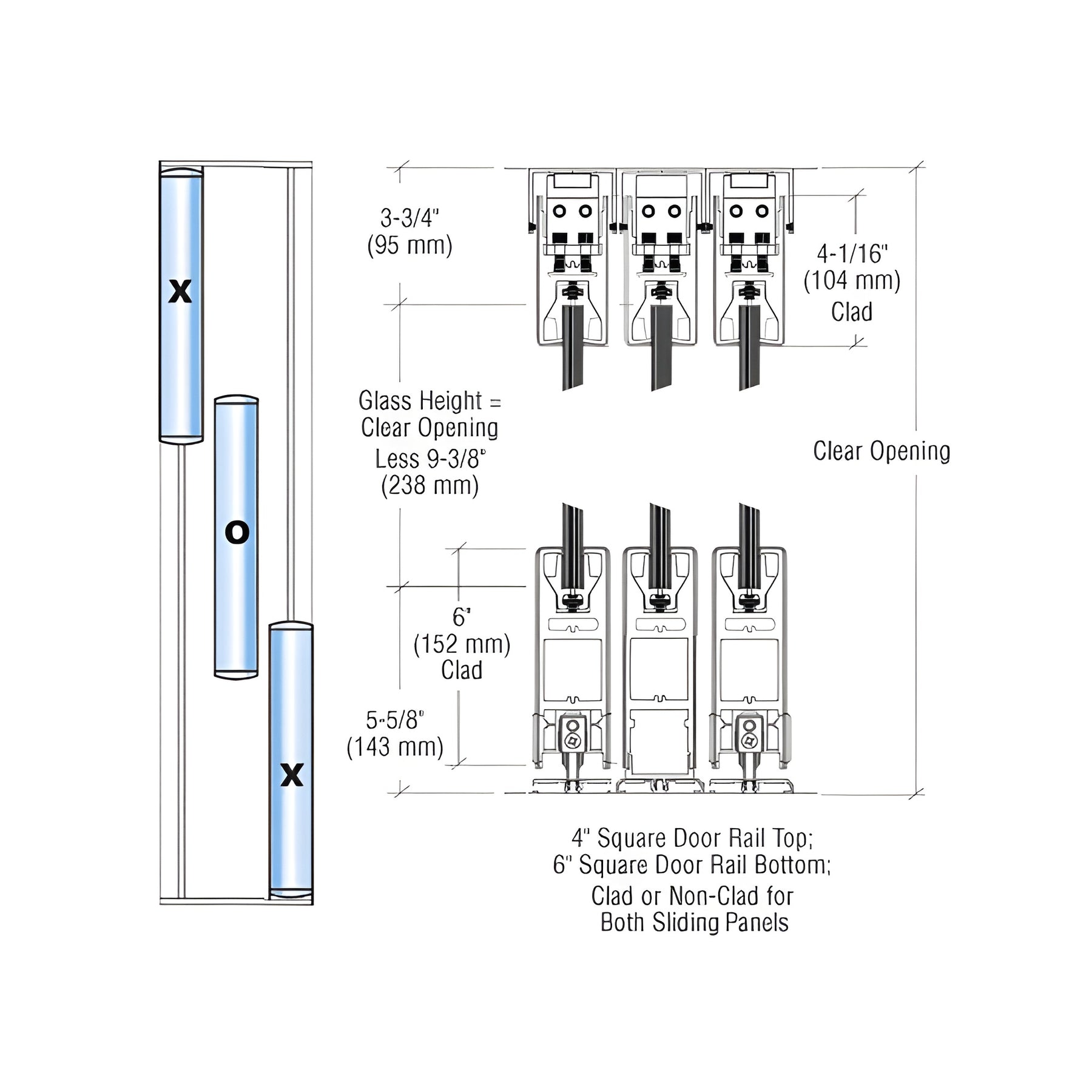

CAD Drawings - pdf
