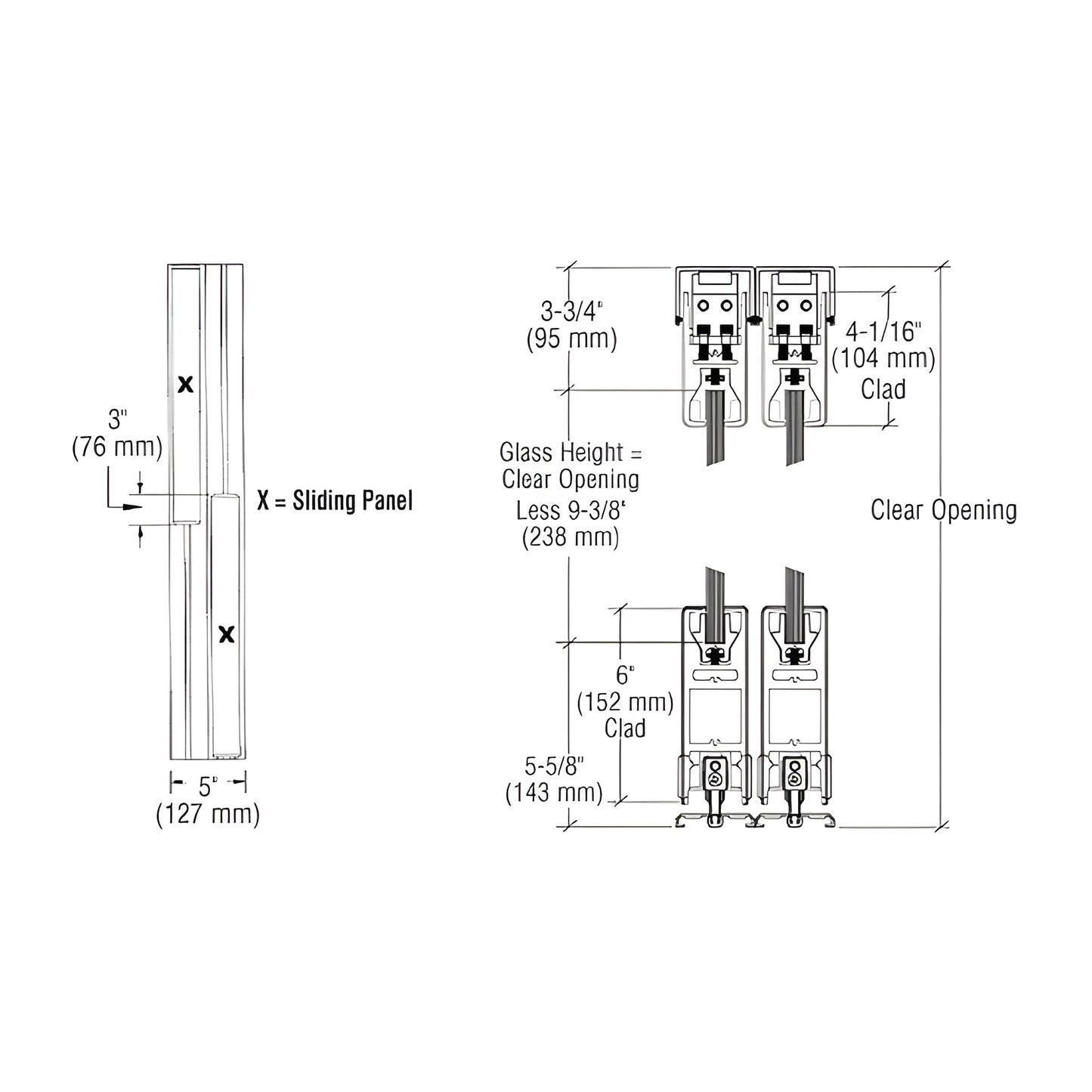

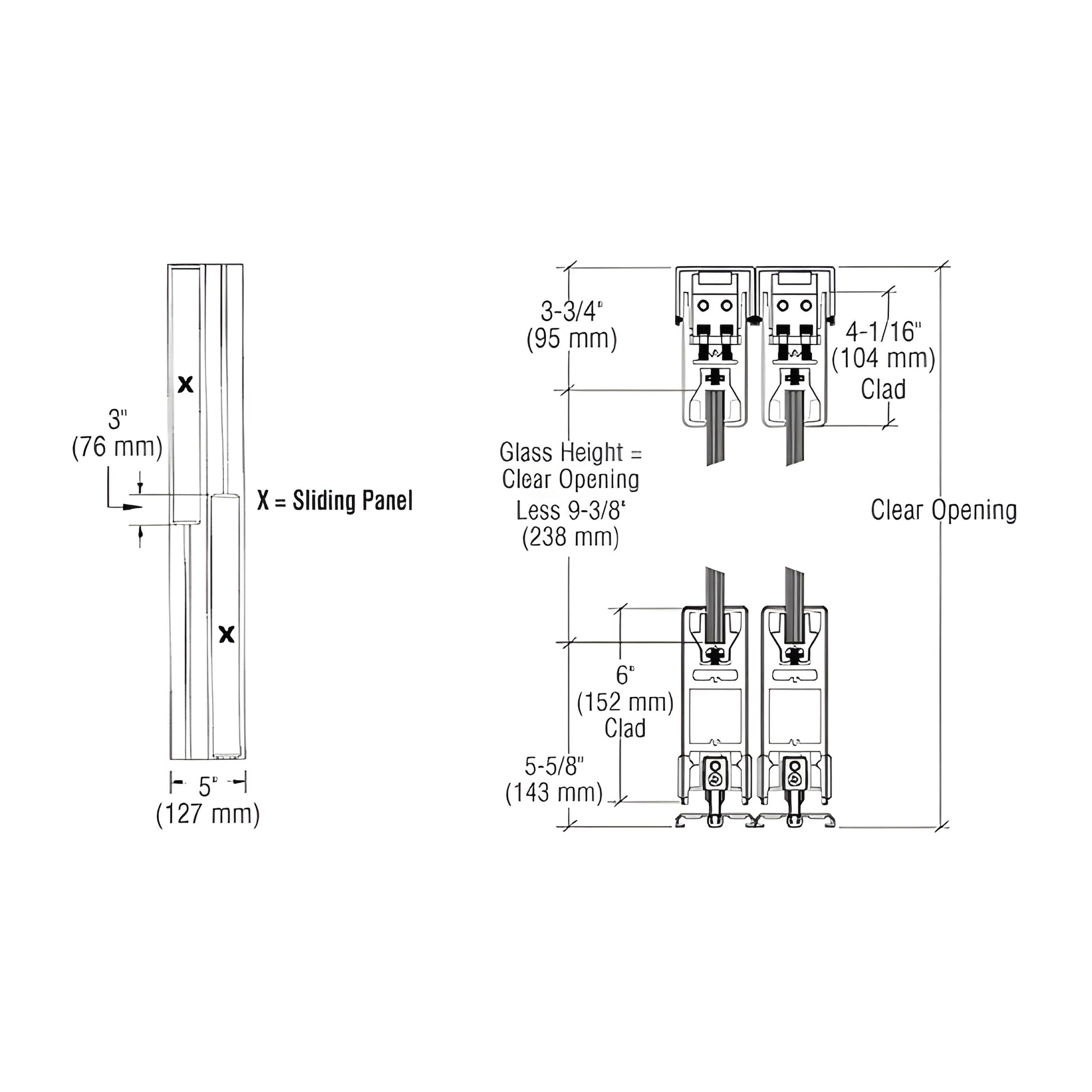

• Technical drawing of CRL SDR bottom-rolling sliding door system (SKU 6SDR2BBL) showing rails, rollers and dimensions.
1 1

CRL

CRL XX Format Black Sliding Door System - 4" Top, 6" Bottom Rail

CRL XX Format Black Sliding Door System - 4" Top, 6" Bottom Rail

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 6SDR2BBL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
X- or -X
Finish/Color
Gloss Black
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
1

Overview

  • With 4" Square DR4S Series Door Rails and 6" Square DR6S Series Bottom Rails
  • Available in Seven Architectural Finishes

CRL SDR Bottom Rolling Sliding Door System (SKU: 6SDR2BBL) — a heavy-duty bottom rolling sliding door solution featuring 4" (102 mm) square top rails (DR4S) and 6" (152 mm) square bottom rails (DR6S). Uses the industry-preferred Wedge-Lock® Glass Securing System for secure glass retention. Custom fabricated to your specifications and available with or without bottom-rail locks for added security.

  • Maximum door width: 48" (1.22 m)
  • Maximum door height: 108" (2.74 m)
  • Maximum door weight: 234 lb (106 kg)

Available in seven architectural finishes to match commercial and residential interiors. Ideal for projects requiring a reliable, customizable bottom-rolling sliding door system with proven Wedge-Lock glass retention.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor color settings.

Order the CRL SDR bottom rolling sliding door system (6SDR2BBL) for customizable, secure, and architectural-grade performance.
