CRL Black Shelf Connector

Product Details

• For 1/4" to 1/2" (6 to 12 mm) Thick Shelving Material
• Connects Tempered Glass, Acrylic or Wood Shelves to Side Panel
• Available in Chrome or Black Finishes

This CRL Shelf Connector is designed for use with 1/4" to 1/2" (6 to 12 mm) thick shelving material. These Connectors can be mounted on to glass, acrylic, or wood side panels with a maximum thickness of 3/8" (10 mm). Requires a 1/4" (6 mm) diameter hole in the side panel. The cap on the back of the Connector has a threaded stud and comes with two vinyl gaskets.

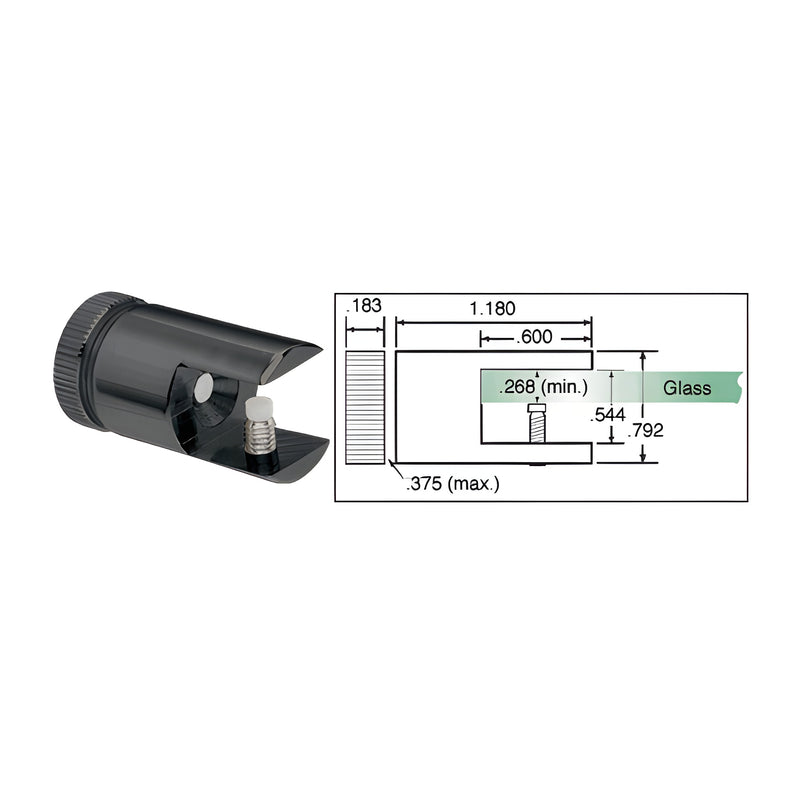

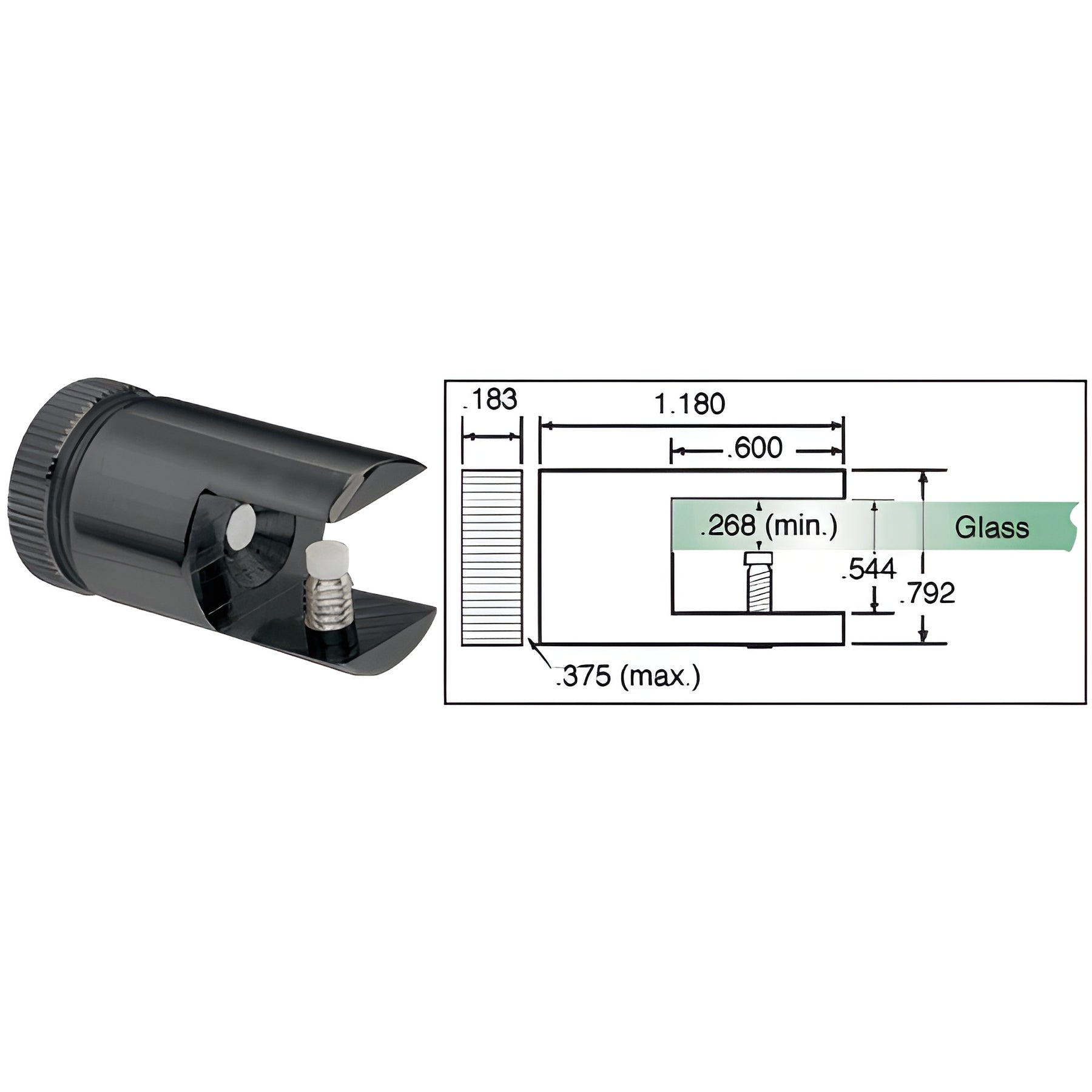

Size: 51/64" (21 mm) diameter x 1-3/16" (30 mm) long; 19/32" (15.1 mm) deep glass pocket.
