CRL Black TAPER-LOC® X Taper Set for 1/2,5/8,3/4in Tempered Glass
Item# TL5X10
Shipping Weight: 4.032 Ounces
Shipping Limitations: None
Minimum Order Quantity: 10
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.032 Ounces
Shipping Limitations: None
Minimum Order Quantity: 10
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Glazing Thickness - Monolithic
1/2 To 3/4 Inch
Glazing Type
Monolithic
- Reinforced polymer spacer for interior and exterior use — compatible with CRL glass railing base shoes: 8B, B5S, B5A, B5T, 8B58, B6N, B6S, 8B34, and B7S
- Precision-measured control for consistent, high-quality installs every time
- Supports all mounting methods using a single compact installation/removal tool (Cat. No. TLK12)
- Eliminates the need for messy cement — mechanical locking system reduces installation cleanup
- U.S. Patents 8,122,654 and 8,201,366; Commonwealth of Australia Patents 2008207524 and 2012202256
- Installs up to 50% faster than traditional wet-set methods
- Designed for monolithic tempered glass panels (1/2" to 3/4" / 12 to 19 mm)

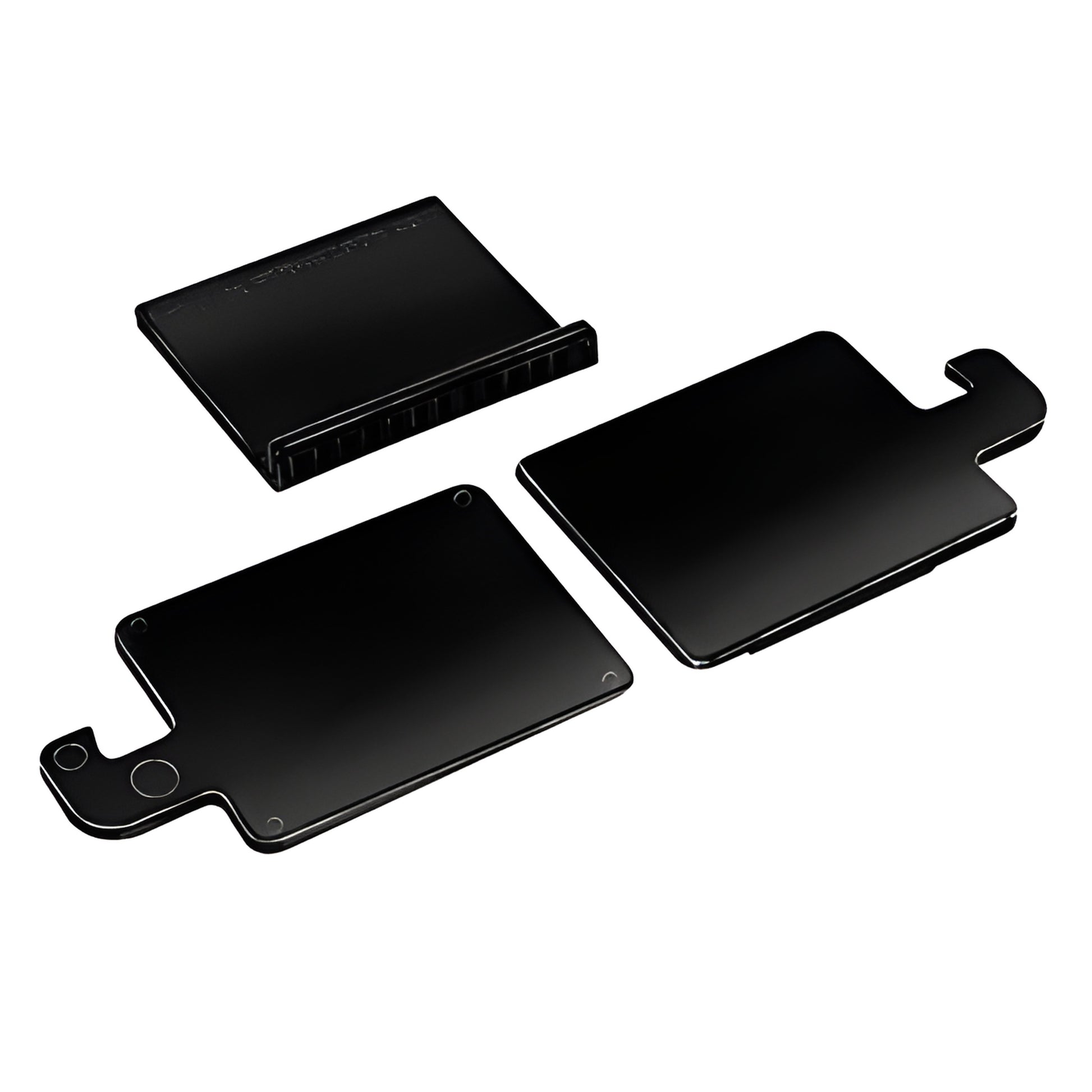

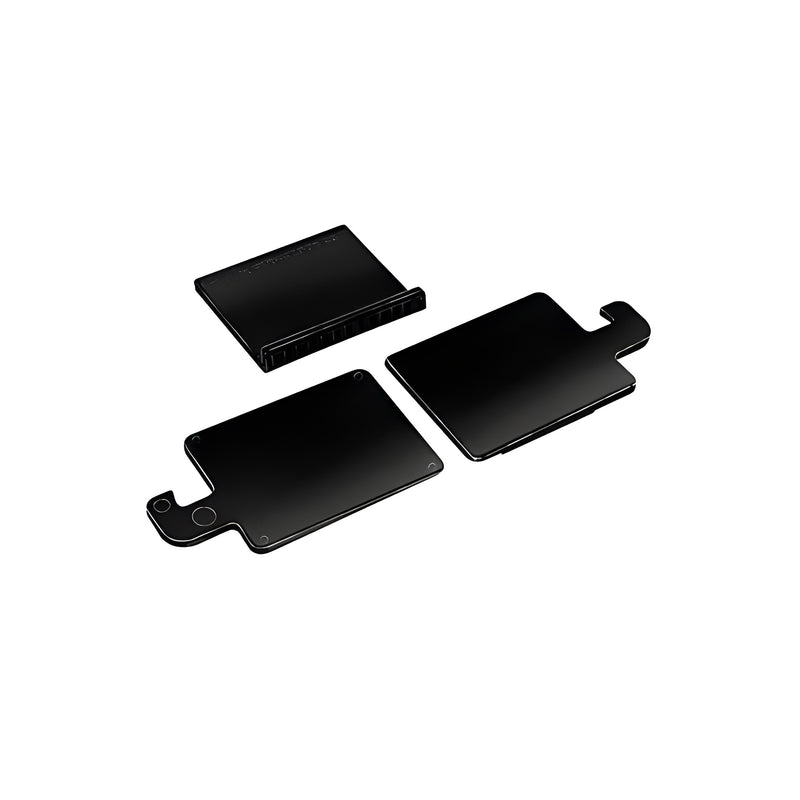

CRL's TAPER-LOC® 'X' Taper Set (SKU: TL5X10) for 1/2" to 3/4" (12 to 19 mm) monolithic tempered glass includes two tapers and one L-Setting Block. Tapers are high-strength reinforced engineering-grade polymer that expand in thickness when compressed together with the TLK12 installation/removal tool, mechanically locking the glass panel into the base shoe.
The TAPER-LOC® L-Setting Block spaces the glass away from the base shoe’s vertical wall and bottom edge. It attaches to either the inside of the base shoe's drop-side wall or directly to the glass panel before installation. The block also protects and centers the glass during insertion into the base shoe, preventing damage and ensuring accurate alignment.
Product Warning:
Not intended to be used with laminated glass.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.
Fast, clean installations for tempered glass railing systems — order the TAPER-LOC® 'X' Taper Set (TL5X10) today.
