CRL-Blumcraft® 316 Brushed SS Left-Hand Rail-Mount Keyed Z Handle

• SKU: DPA100Z4RKBS
• Patent No. D725,457
• UL, ULC, and ANSI/BHMA certified
• Designed for all-glass doors — ADA-compliant panic handle for glass doors
• Available in Alloy 316 brushed or polished stainless steel (316 SS panic handle)
• Sharp architectural lines and angles with a smooth round gripping surface
• Investment-cast corners for greater strength and consistent fit
• Crisp transitions at all corners for a contemporary, low-profile appearance

Our Designer Series "Z" Shape CRL-Blumcraft® Access Control Handles combine sharp architectural styling with a smooth round grip and are engineered specifically for all-glass doors. The DPA100 Series (including model DPA100Z4RKBS) offers panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles so you can maintain a uniform appearance across projects without extra cost.

The operating mechanism is concealed within the vertical tubing: pushing the interior actuation bar retracts the latch bolt. Optional features include an exterior keyed access device, a special dogging feature to hold the latch open for business hours, and compatibility with electric strikes for remote/keyless entry. Custom headers with installed strike hardware are available for easier installation.

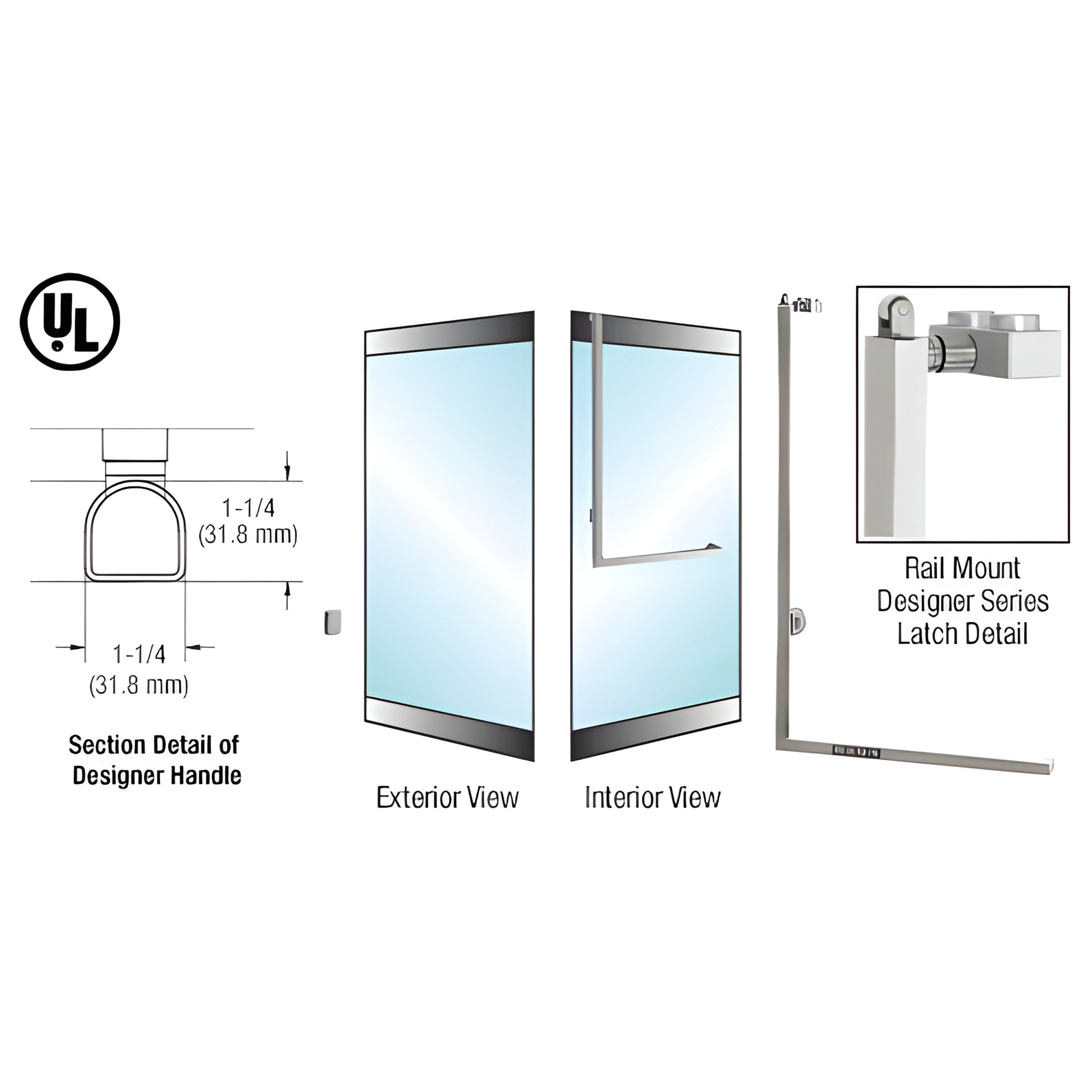

CRL manufactures this line for use on 1/2", 5/8", or 3/4" (12, 15, or 19 mm) tempered glass doors to maximize viewing area while meeting ADA requirements. The interior tube is a slender 1-1/4" (32 mm) profile that clears the lower door area to comply with ADA clearance needs.

Most DPA100 Series panic handles include a dogging lever to lock the device in the open position and can be paired with electric strikes for secured or remote access solutions.

For full technical details and the latest catalog pages for CRL-Blumcraft® Access Handles, see the catalog.

Stainless Steel Advisory:

Contact CRL Technical Sales for Commercial Products via Contact Us to get pricing, lead times, or custom configurations
