Product Details
- Channels for 1/2" or 3/4" (12 or 19 mm) Tempered Glass
- Use Monolithic Tempered Glass
- Accepts Glazing Gaskets, Top Pivots, and Snap-In Filler Strips
- Available in Five Architectural Finishes
- Custom Finishes, Including Oil Rubbed Bronze, are Available on Special Order

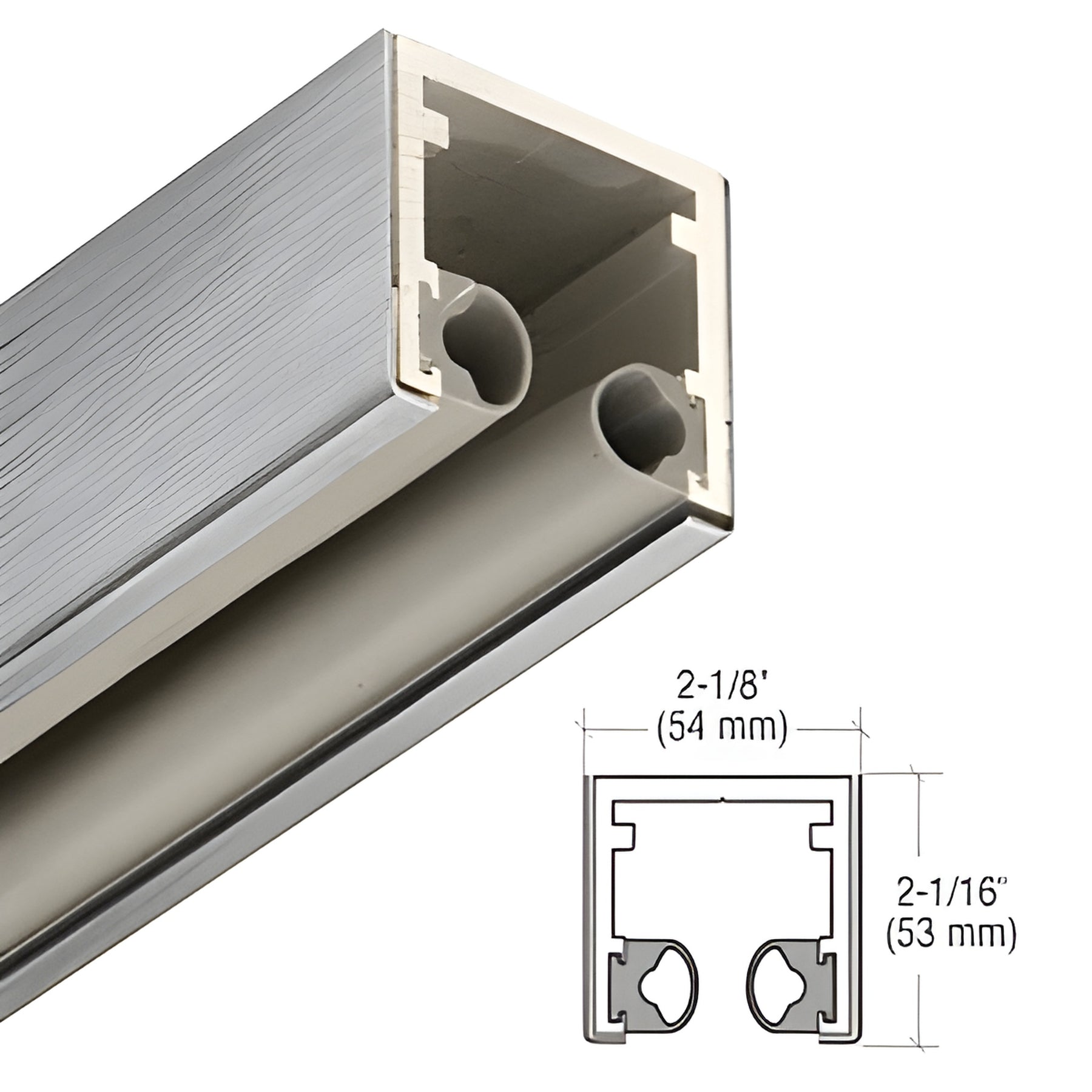

These CRL-Blumcraft Head Channels are used over fixed glass panels, and as headers for pivoting doors, or a combination of both. A built-in glazing gasket is included for easy glass installation, without requiring sealant.
These extruded aluminum channels are available in 120" or 240" (3.05 or 6.10 m) stock lengths in satin anodized, black bronze anodized, brushed or polished stainless steel, and polished brass. Custom lengths and finishes are also available on special order.
For use as a Door Header, or for more information, contact CRL Technical Sales Department.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
