CRL-Blumcraft® Stainless Left-Hand Reverse Keyed F-Top D-Handle
CRL-Blumcraft® Stainless Left-Hand Reverse Keyed F-Top D-Handle
Regular price
$21,125.40 CAD
Regular price
Sale price
$21,125.40 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DDB100F4AKBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

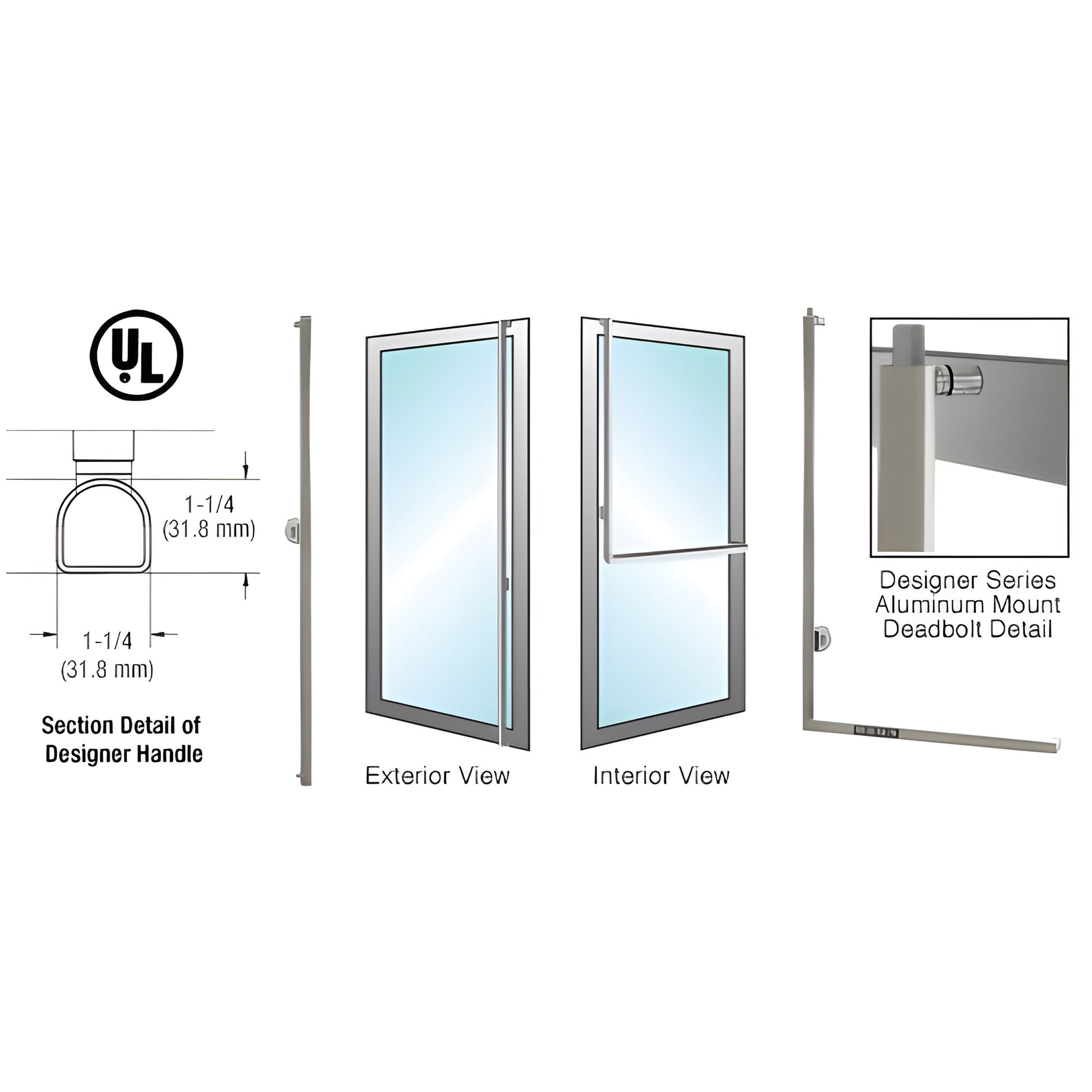

Description
Application
Aluminum / Wood Door Mount
Diameter
1-1/4 in. (D-Shape) (32 mm (D-Shape))
Door Thickness
1-3/4 in. To 2-1/2 in. (44 mm To 64 mm)
Finish/Color
Brushed Stainless Steel
Handing
Left Hand Reverse
Keying
Cylinder / Cylinder
Locking
Top
Material
Stainless Steel (Alloy 304)
Top Latch Type
Deadbolt
Overview
- Patent No. D725,457
- Easy secure access
- ANSI/BHMA certified
- DBR130 series compatible with electric strike
- Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
- Available finishes: Polished Stainless, Brushed Stainless, Satin Brass, Polished Brass, Oil Rubbed Bronze
- Custom finishes available by special order
- Custom sizes ship within one to two weeks
CRL-Blumcraft® manufactures a complete line of access control handles for all-glass door applications, including panic devices, deadbolt handles, and electronic egress control handles in multiple configurations. Matching dummy handles are available to maintain a consistent appearance across a project while reducing cost.
The deadbolt locking mechanism is concealed within the vertical tubing, offering multiple keying options for secure installation in tempered glass doors. An optional top latch roller bolt enables use with electronic strikes for controlled-entry systems—ideal for commercial glass door access control solutions.
For full product specifications, technical details, and catalog pages, visit our CRL-Blumcraft Access Handle catalog here. To discuss project requirements or request custom finishes/sizes for SKU DDB100F4AKBS, contact CRL Technical Sales via the Contact Us page and select Technical Sales for Commercial Products.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. Periodic maintenance is recommended to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more information.
Ready to order or need a quote? Contact CRL Technical Sales for SKU DDB100F4AKBS today.
Specifications
Cleaning & Maintenance
