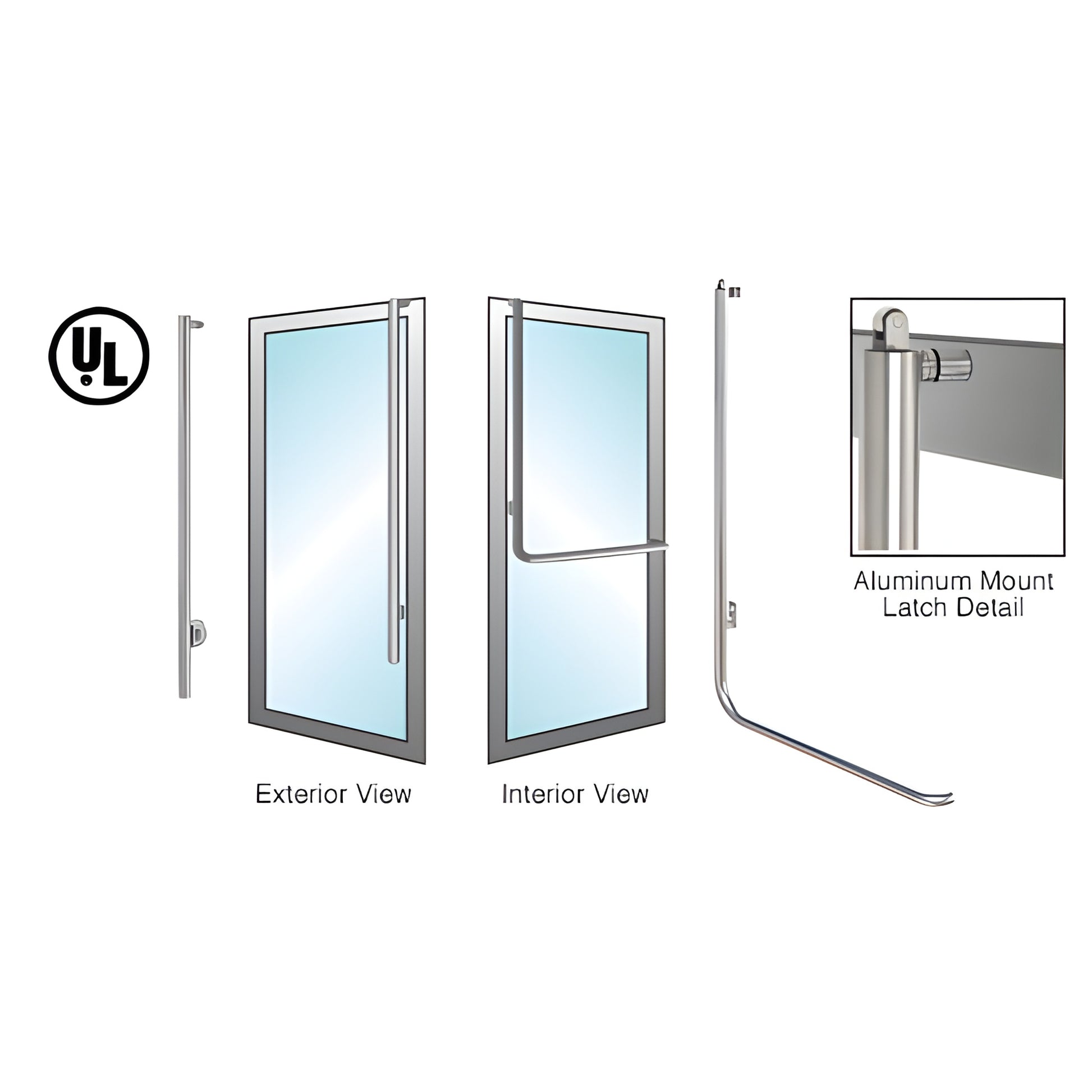

• PA100LS4AKBS brushed stainless panic exit handle, 1-1/4 in tubular design for aluminum/wood doors, left-hand reverse
1 1

CRL

CRL-Blumcraft Brushed Stainless Left-Hand Reverse Keyed Panic Handle

CRL-Blumcraft Brushed Stainless Left-Hand Reverse Keyed Panic Handle

$13,164.44 CAD
$13,164.44 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PA100LS4AKBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
Aluminum / Wood Door Mount
Diameter
1-1/4 in. (32 mm)
Door Thickness
1-3/4 in. To 2-1/2 in. (44 mm To 64 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • UL, ULC, and ANSI/BHMA Certified
  • Elegant tubular design
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles specifically designed for all-glass doors. Our product family includes panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles so you can maintain a consistent aesthetic across your project without extra cost.

The PA100 Series panic handles feature a concealed operating mechanism inside the vertical tubing that retracts the latch bolt when the interior actuation bar is pushed. An optional exterior keyed access device and electronic strikes provide secure, remote or keyed entry options, and a special dogging feature lets the device remain unlocked during business hours for convenient access control.

Engineered for maximum viewing area and ADA compliance on 1/2" (12 mm) and 3/4" (19 mm) tempered glass doors, the interior portion is a slender 1-1/4" (32 mm) tube that runs across the door and turns upward toward the top rail, keeping the lower glass area clear of obstructions.

All PA100 Series panic handles include a dogging lever for locking the device in the open position and can be used with electric strikes. Custom headers with strike hardware pre-installed are available for simplified installation.

For detailed specifications and installation guidance, view the CRL-Blumcraft® Access Handle catalog pages here or contact CRL Technical Sales via Contact Us → Technical Sales for Commercial Products.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs prior to completing your order, please request this by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your monitor's settings.

Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to maintain the factory finish. See the Stainless Steel Disclaimer in Technical References for more information.
